Hastelloy ALFA Heat Exchanger Plate Industrial For Heating Cooling
Hastelloy ALFA Heat Exchanger Plate Industrial For Heating Cooling
Hastelloy ALFA Heat Exchanger Plate Industrial For Heating Cooling
Hastelloy ALFA Heat Exchanger Plate Industrial For Heating Cooling
Hastelloy ALFA Heat Exchanger Plate Industrial For Heating Cooling
Hastelloy ALFA Heat Exchanger Plate Industrial For Heating Cooling
Specifications
Model Number :
M3、M6、M6-D、M6M、M6MC、M10B、M10M、M15B、M15M、M15MC、M20M M20B、MX25B、MX25M、M30、TS6、TL6B、TS20、TL10B、TL10P、T20B、T20M、T20P、TL35B P16、P26、P36、AK20、JWP26、JWP36、M6MW、M10BW、MK15BW
Certification :
ISO SGS
Place of Origin :
China
MOQ :
20pcs
Price :
50 - 500pieces $20-$30
Payment Terms :
T/T, L/C, Western Union,
Supply Ability :
50000pcs per month
Delivery Time :
15 days
Packaging Details :
Polywood Box
Material :
SUS304 316 316L 310S 904
After Warranty Service :
Online support
Heat Transfer Area :
10-1000m²
Heigaiprel :
800mm
Keyword :
heat exchanger plate
Liquid Flow Rate :
2.5m/s
Marketing Type :
New Product 2020
Max Temperature :
Up to 200°C
Plate Pattern :
Chevron
Plate Type :
Gasketed
Plates Material :
AISI 304/316L, SMO254, Hastelloy, Ni, Ti
Surface Treatment :
powder coating,Clean,quiet
Veneer Area :
customized
Thickness :
0.5 0.6mm
Width :
335mm
Working Pressure :
2.0 Mpa
Description

Product Description

Alfalval Hastelloy C-276 High Corrosion Resistance Plate Heat Exchanger Plates For Heating And Cooling

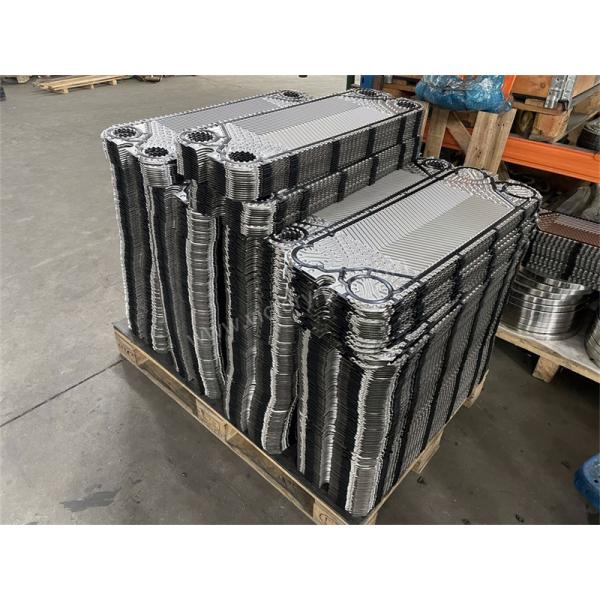

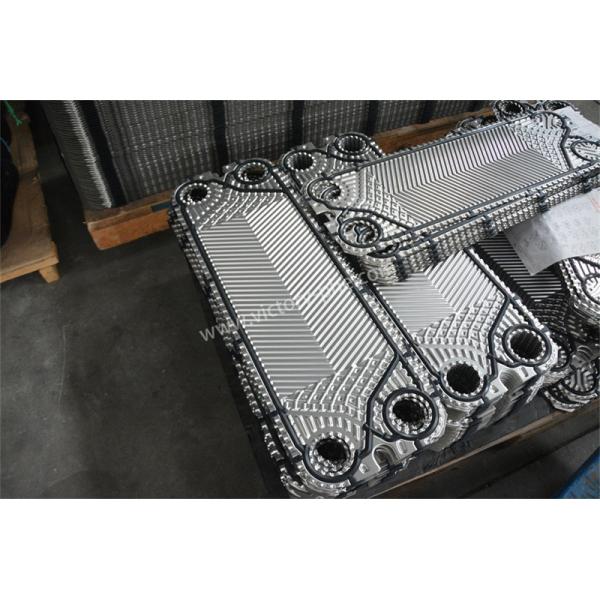

Heat Exchanger Plates

1.Heat exchanger plate: a metal sheet pressed with corrugations, sealing grooves and corner holes, which is an important heat transfer element. Corrugations can enhance heat transfer, increase the strength and rigidity of thin plates, improve the pressure-bearing capacity of the heat exchanger, and promote turbulent flow of fluid on th

2. The heat exchanger plate is the core element of the plate heat exchanger. It is specially used to isolate the medium and perform heat exchange in the plate heat exchanger. It is an important part of the plate heat exchanger.

3. The heat exchanger plates are all stamped and formed in one go using extremely precise molds, with the same accuracy, so there is uniform metal point contact between the plates, ensuring that the plate heat exchanger can operate normally under higher pressure and can withstand the system pressure shock, etc.

Heat Exchanger Plates material

1. Stainless steel SUS304 SUS316L
Purified water, river water, food oil, mineral oil
2. Industrial pure titanium and titanium-palladium alloyTi tanium and Pal ladium
Sea water, salt water, salt compounds
3. Hastelloy Alloy
Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
4. Nickel
High temperature and high concentration caustic soda

  • AISI 304 is usually 0.4 or 0.5 mm thickness
  • AISI 316 is always 0.5 and 0.6 mm
  • 254 SMO (high alloy) typically 0.6 mm
  • Titanium plates are always 0.5 and 0.6 mm
  • Some have thicker plates (for high pressure applications)
  • Some PHEs have 0.4 mm (low pressure operation)
  • Hastelloy C-276 (nickel alloy) typically 0.6 mm

Brand Model

M3,M6,M6-D,M6M,M6MC,M10B,M10M,M15B,M15M,M15MC,M20M

M20B,MX25B,MX25M,M30,TS6,TL6B,TS20,TL10B,TL10P,T20B,T20M,T20P,TL35B

P16,P26,P36,AK20,JWP26,JWP36,M6MW,M10BW,MK15B

Material Specification
Stainless Steel SUS304 316 316L 310S 904
Titanium and titanium-palladium alloy TAi TAi-Pd
Hastelloy C276 D205 B2G
Nickel Ni200 Ni201
Molybdenum 254

Applacations

The application areas of heat exchanger plates are as follows:

1. Widely used for Hotels

2. Garment Shops

3. Building Material Shops

4. Machinery Repair Shops

5. Manufacturing Plant

6. Food & Beverage Factory

7. Farms, Restaurant,Retail, Food Shop

8. Printing Shops, Construction works

9. Energy & Mining, Food & Beverage Shops

Q&A

Q: Can I customize samples of heat exchanger plates?

A: Yes,we welcome sample order to test and check quality.

Q : Can you accept mixed batch of different heat exchanger plates and OEM service?
A : Yes,we support mixed models and OEM service.
