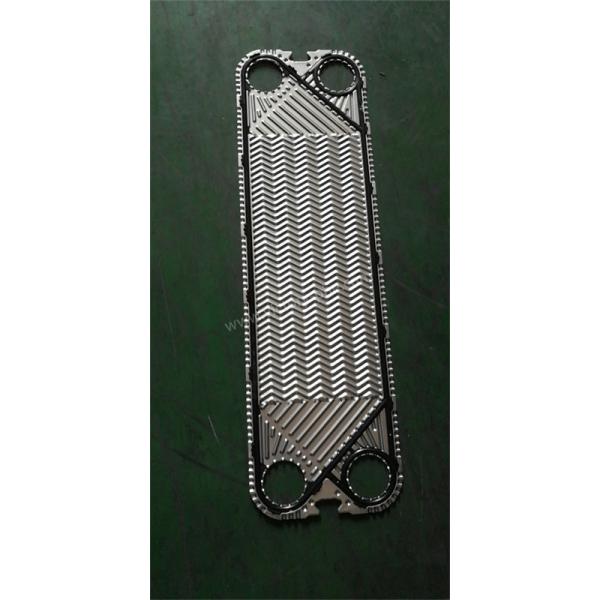

M3 ALFA Heat Exchanger Plates SUS304 Stainless Steel Material
M3 ALFA Heat Exchanger Plates SUS304 Stainless Steel Material
M3 ALFA Heat Exchanger Plates SUS304 Stainless Steel Material
M3 ALFA Heat Exchanger Plates SUS304 Stainless Steel Material
Specifications
Model Number :
M3、M6、M6-D、M6M、M6MC、M10B、M10M、M15B、M15M、M15MC、M20M M20B、MX25B、MX25M、M30、TS6、TL6B、TS20、TL10B、TL10P、T20B、T20M、T20P、TL35B P16、P26、P36、AK20、JWP26、JWP36、M6MW、M10BW、MK15BW
Certification :
ISO SGS
Place of Origin :
China
MOQ :
50pcs
Price :
50 - 500pieces $20-$30
Payment Terms :
T/T, L/C, Western Union,
Supply Ability :
50000pcs per month
Delivery Time :
15 days
Packaging Details :
Plywood Box
Material :
SUS304 904 316 316L 310S
After Warranty Service :
Online support
Heat Transfer Area :
10-1000m²
Heigaiprel :
800mm
Keyword :
heat exchanger plate
Liquid Flow Rate :
2.5m/s
Marketing Type :
New Product 2020
Max Temperature :
Up to 200°C
Plate Pattern :
Chevron
Plate Type :
Gasketed
Plates Material :
AISI 304/316L, SMO254, Hastelloy, Ni, Ti
Surface Treatment :
powder coating,Clean,quiet
Veneer Area :
customized
Voltage :
200v/380v
Width :
335mm
Working Pressure :
2.0 Mpa
Description

Product Description

SUS304 904 Stainless steel Plate M3 Model Heat Exchanger Plates

Heat Exchanger Plates

1. The heat exchanger plates are designed with fluid dynamics in mind to achieve maximum heat transfer efficiency. The optimized plate shape and channel design ensure the effective flow of fluid between the plates, thereby improving heat exchange performance.

2.ALFA's heat exchanger plates can be customized to the customer's specific needs. The choice of different sizes, shapes and materials makes them suitable for a variety of applications, ensuring optimal system integration and performance.

3. It is widely used in refrigeration systems, chemical processes, food processing, power industry and other fields. It can operate stably under extreme environmental conditions or in demanding industrial processes.

Heat Exchanger Plates material

1. Stainless steel SUS304 SUS316L
Purified water, river water, food oil, mineral oil
2. Industrial pure titanium and titanium-palladium alloyTi tanium and Pal ladium
Sea water, salt water, salt compounds
3. Hastelloy Alloy
Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
4. Nickel
High temperature and high concentration caustic soda

Brand Model

M3,M6,M6-D,M6M,M6MC,M10B,M10M,M15B,M15M,M15MC,M20M

M20B,MX25B,MX25M,M30,TS6,TL6B,TS20,TL10B,TL10P,T20B,T20M,T20P,TL35B

P16,P26,P36,AK20,JWP26,JWP36,M6MW,M10BW,MK15B

Material Specification
Stainless Steel SUS304 316 316L 310S 904
Titanium and titanium-palladium alloy TAi TAi-Pd
Hastelloy C276 D205 B2G
Nickel Ni200 Ni201
Molybdenum 254

Applacations

The application areas of heat exchanger plates are as follows:

1. Widely used for Hotels

2. Garment Shops

3. Building Material Shops

4. Machinery Repair Shops

5. Manufacturing Plant

6. Food & Beverage Factory

7. Farms, Restaurant,Retail, Food Shop

8. Printing Shops, Construction works

9. Energy & Mining, Food & Beverage Shops

Q&A

Q: Can I customize samples of heat exchanger plates?

A: Yes,we welcome sample order to test and check quality.

Q : Can you accept mixed batch of different heat exchanger plates and OEM service?
A : Yes,we support mixed models and OEM service.
