4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output
4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output
4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output
4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output
4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output
4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output
4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output
4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output
Specifications
Place of Origin :
Beijing, China
Brand Name :
TCHD
Packaging Details :
Carton box
Supply Ability :
500 Piece/Pieces per Month
MOQ :
2 pieces
Price :
$745.00/pieces 2-4 pieces
Channels :
4
Video Compression Format :
H.264
SDK :
SDK support
Compression mode :
Software compression
Operation System Support :
Windows
Nature :
4Kp60 live streaming
Input :
12G-SDIx4
Output :
12G-SDI x 1
Video encoding :
H.264
Resolution :
4096x 2160 p60
Type :
PCIe 4U
Application :
Live streaming, webcasting, video conference, game capture
Description

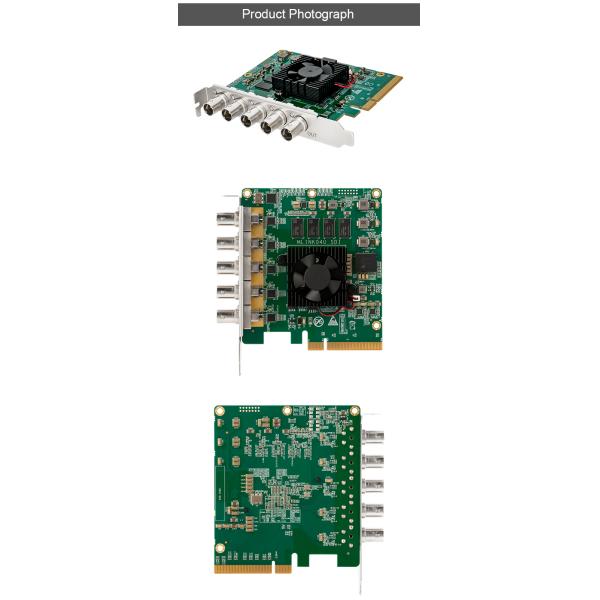

TC210N5SDI 4 channels 12G-SDI input 1 ch 12G-SDI output 4K60p live streaming capture card

4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output

Introduction

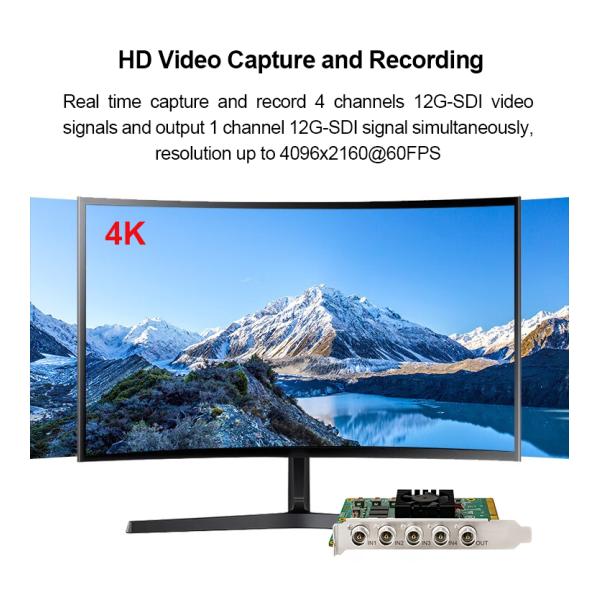

TC210N5SDI with 4 x 12G-SDI inputs and 1x 12G-SDI ouput,support 2160p/ 1080p/ 720p /576i, 1080i 4K UHD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.

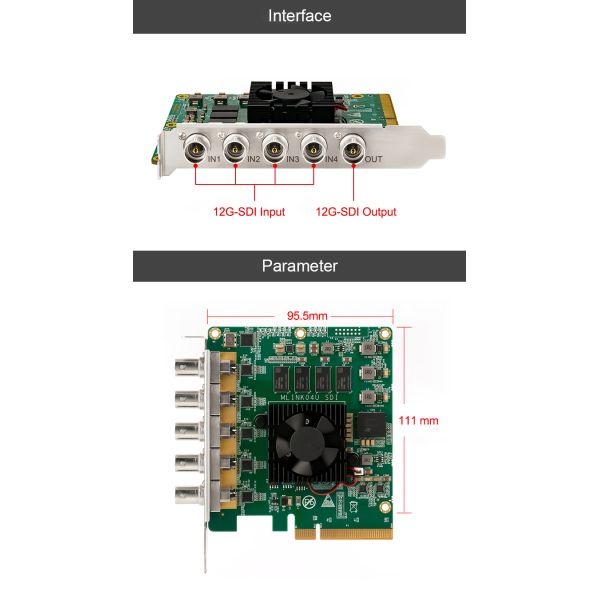

Interface/Dimension

Video input

4×12G-SDI

Video output

1×12G-SDI

Audio input

4×12G-SDI embedded audio

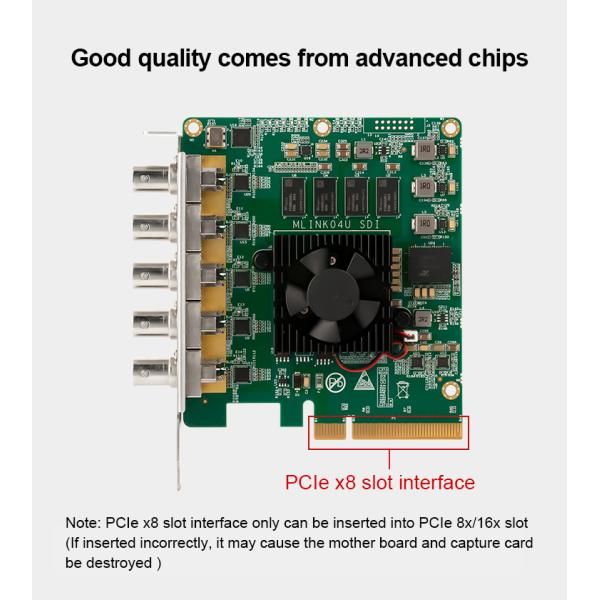

Slot

PCIe×8 (Gen3)

Dimension

125mm×110mm

Video resolution

SD resolution

576i50

HD resolution

720p23.98/720p24/720p25/720p29.97/720p30/720p50/720p59.94/720p60

1080p23.98/1080p24/1080p25/1080p29.97/1080p30/1080p50/1080p59.94/1080p60

1080i50/1080i59.94/1080i60

4K resolution

2160p23.98/2160p24/2160p25/2160p29.97/2160p30/2160p50/2160p59.942160p60

Audio format

Stereo 48kHz.16bit

SDI color format

8bit YUV 4:2:2

Color space

REC 601,REC 709,REC 2020

SDI video sampling

4:2:2, 4:4:4

SDI spec

SMPTE 259M,SMPTE 274M,SMPTE 292M,SMPTE 296M ,SMPTE 372M,SMPTE 424M,SMPTE 425M,SMPTE 2036-1,SMPTE 2048-1,SMPTE 2081-10,SMPTE 2081-11,SMPTE 2081-12

SMPTE 2082-10,SMPTE 2082-11,SMPTE 2082-12 and SMPTE ST2108-1

SDI support

RP 188/SMPTE 12M-2 and hidden caption

OS

Windows 7/8/10 /11,64bit

Driver

SDK

Provide C++ SDK and DirectShow

Power

Consumption

12W

Environment

Working temperature

5-40℃(41°-104° F);relative humidity:0-90%
Packaging & Shipping

4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output

Advantages

4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output

Company Information

4Kp60 Live Streaming Capture Card With 4 Channels 12G-SDI Input And 1 Ch 12G-SDI Output
