4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
Specifications
Place of Origin :
Beijing, China
Brand Name :
TCHD
Model Number :
TC560N1 P30
Packaging Details :
Carton box
Supply Ability :
500 Piece/Pieces per Month
Price :
$300.00 - $350.00/pieces
SDK :
SDK support
Compression mode :
Software compression
Operation System Support :
Windows,Linux
Nature :
4K UHD live streaming
Input :
HDMI
Output :
HTTP/RTMP/RTSP
Video encoding :
H.264
Resolution :
4096x2160P30
Type :
PCIe 4U
Application :
Live streaming, webcasting, video conference, game capture
Port :
Beijing
Description

High quality 4K UHD live streaming live streaming game capture pci tv capture card

4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

Introduction

4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

TC560N1 P30 with 1xHDMI input, support from 4K30P to 720x576i50 full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.

Model

TC56ON1P30 HDMI

Max.FPS

4096x2160p30/25fps in

4096x2160p@30/25fps out

Recording Mode

Software Compression,Real-Time Mode

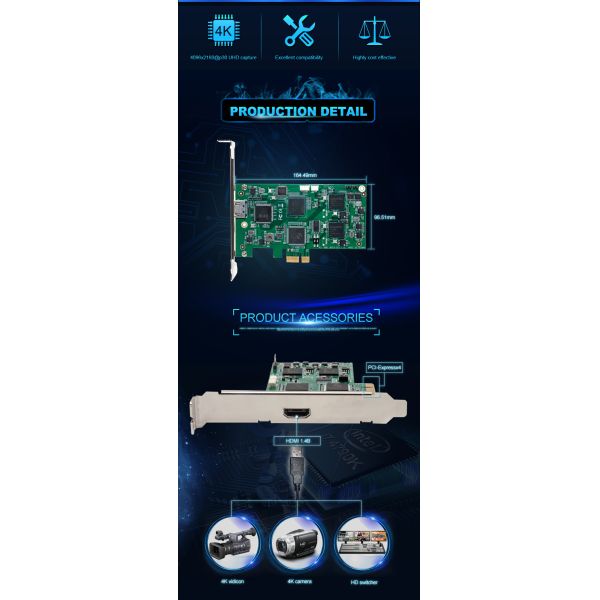

Dimension

164.49x96.51(mm)

Interface

PClx4(Gen2)

video Input

1xHDMl 1.4B

Display Video Format

WV12,NV12,YUY2,RGB24,RGB32

video RAW Data Resolution

HDMI 1.4B

4096x2160@30/25/24fps

3840X2160@30/25/24FPS

2560x1600@60fos

2048x1152@60fps

2560x1440p@60fps

1920x1440p@75/60/50fps

1920x1200p@85/75/60/50fps

1920X1080P@60/50fps

1920x1080p@30/25/24fps

1920x1080i@60/50fps

1280x720p@60/5Ofps

1280x1024p@60fps

1280x960p@60fps

1024X768p@60fps

800x600p@60fps

640x480p@60fps

720x480p@60fps

720x576p@50fps

720x480i@60fps

720x576i@50fps

Recording Video Format

H.264 (Software Compression)

Recording Video Resolution

HDMI 1.4B

4096x2160@30/25/24fps

3840x2160@30/25/24fps

2560x1600@60fps

2048x1152@60fps

2560x1440p@60fps

1920x1440p@75/60/50fp

1920x1200p@85/75/60/50fps

1920x1080p@60/5Ofps

1920X1080P@30/25/24FPS

1920x1080i@60/50fps

1280x720p@60/5Ofps

1280x1024p@60fps

1280x960p@60fps

1024x768p@6Ofps

800x600p@60fps

640x480p@60fps

720x480p@60fps

720x576p@50fps

720x480i@60fps

720x576i@50fps

Audio Input

1xHDMI Embedded audio

Audio Format

Stereo/ 16-bit /32000-48000Hz

WatchDog

Yes

Multiple Cards

∞

SDK

VC++ /C# /.NET/ VB /V4L2

System Requi rement

OS Support

Windows XP/ Vista /Windows 7

Windows 8 /Windows 8. 1/ Windcws 10

Linux 2.6.14 or Higher

(32-bit and 64-bit )
