Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
Specifications
Model Number :
Analog2digital
Brand Name :
TCHD
Place of Origin :
Beijing, China
Packaging Details :
Carton box
Supply Ability :
300 Piece/Pieces per Month
Price :
$360.00 - $400.00/pieces
Input :
DVI VGA S-video CVBS YPbPr component composite
Output :
SDIX2,HDMIX1
Resolution :
1920x1080P60
Audio :
independent audio
Feature :
plug and play, up/down scaling
Application :
video format conversion, video display, TV wall, image display
DC In :
7.5V-15V
Port :
Beijing
Description

Factory price DVI VGA S-video CVBS YPbPr component composite to HDMI SDI multi format video converter

Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDIMulti Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDIMulti Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDIMulti Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDIMulti Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDIMulti Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI

Introduction

Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI

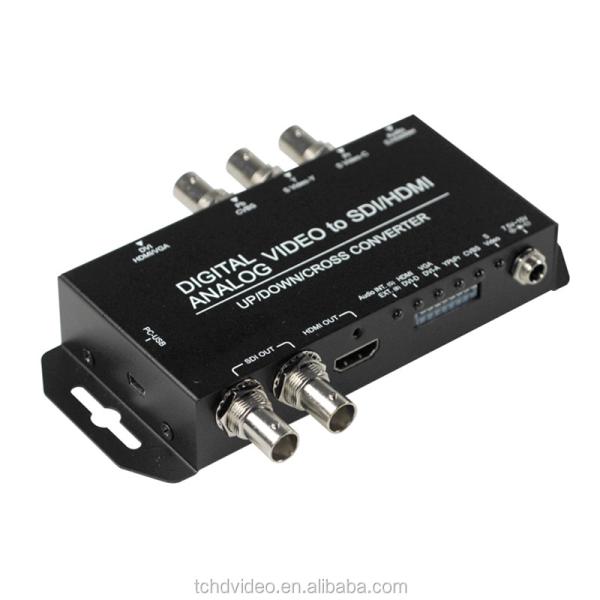

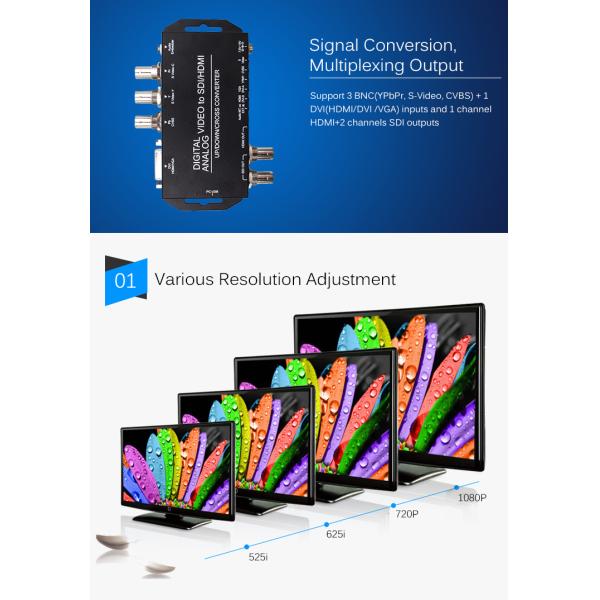

TCHD Multi to SDI HDMI video converter is a high-quality, high-performance video signal conversion product. It Supports Support 3 BNC(YPbPr, S-Video, CVBS) + 1 DVI(HDMI/DVI /VGA) inputs and 1channel HDMI + 2 channels SDI outputs.Unlike the traditional converter products in current market, our Multi to SDI HDMI Converter which built in a professional image conversion processing chip, support the user-adjustable to set the saturation / brightness / contrast, and through automatic scaling and frame rate conversion, any input format video signal can be converted to a standard SD/HD/3G-SDI or HDMI signal, compatible with all common analog and digital signal.

Multi to SDI/HDMI Up/Down Converter (MULTI to SDI/HDMI)

Description

Convert from DVI-D/VGA or Component/S-Video/Composite to 3G/HD/SD-SDI and HDMI output

Feature

Built in up/down conversion engine

Video enhancement with anti-aliasing and 3D deinterlacer

Simultaneous 2 x SDI plus 1 x HDMI output

Hot-keys for video mode and device configurations

Mini-USB portfor configurations and software upgrade

Region of interest

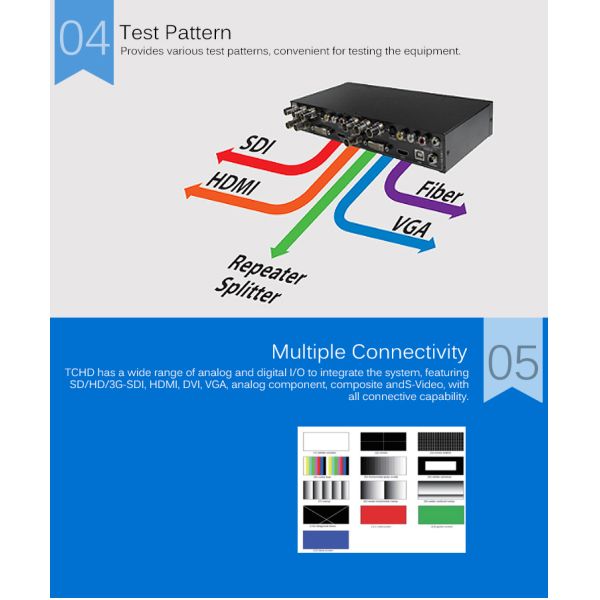

Test pattern

Test label

Input

DVI-I x 1(Support DVI-D and VGA)

BNC x 3 for Component/S-video/Composite

3.5mm Phone jack for analog audio

Output

SDIX2

HDMIX1

Supported Video Input Format

Composite/SVideo

NTSC/PAL

Component

480i,576i,480p,576p

720p,1080i,1080p

DVI/VGA

800X600@60HZ,1024X768@60HZ,1280X1024@60HZ

1366x768@60Hz,1400x1050@60Hz,1600x1200@60Hz

Supported Video Output Format

SDI 1080p60/50,1080i60/50,1080p30/25/24,720p60/50

1080p59.94,1080159.94,720p59.94,1080p29.97,1080p23.98

525i,625i

Audio Input Format

DVI-D(Converted to HDMI): Up to 8 channels,24bit,192KHz

3.5mm Phone Jack: Stereo.24bit,48KHZ

Audio Output Format

HDMI/SDI: Up to 8 channels,24bit,48KHz

Plug & Play

YES

DC In

7.5V-15V
Product Display

Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI

Related Products

Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI

Packaging & Shipping

Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI

Advantages

Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI

Company Information

Multi Format Digital Video Converter DVI VGA S-video CVBS YPbPr to HDMI SDI
