Specifications
Brand Name :
TCHD
Model Number :
880U
Place of Origin :
Beijing, China
Packaging Details :
Carton box
Supply Ability :
200 Piece/Pieces per Month
Price :
$499.00/pieces 1-4 pieces
Additional Function :
Low Illumination Camera Function
Imaging Sensor :
CMOS
Effective MegaPixel :
About 2MP
Optical Zoom :
10x - 20x, 12X
Product name :
video camera
Output :
USB3.0 hdmi
Network protocol :
RTMP/RTSP
Resolution :
1920x1080P60
Audio :
independent audio
Feature :
ethernet interface
Application :
video conference, telemedecine ,live streaming
Sensor :
1/2.8 inch high qality HD CMOS sensor
Pan Rotation :
±170°
Port :
Beijing
Description

12x optical zoom vertical screen live broadcas ip streaming PTZ usb video conference camera

12x Optical Zoom PTZ USB Video Conference Camera For Vertical Screen Live Broadcasting In Beijing12x Optical Zoom PTZ USB Video Conference Camera For Vertical Screen Live Broadcasting In Beijing

Introduction

12x Optical Zoom PTZ USB Video Conference Camera For Vertical Screen Live Broadcasting In Beijing

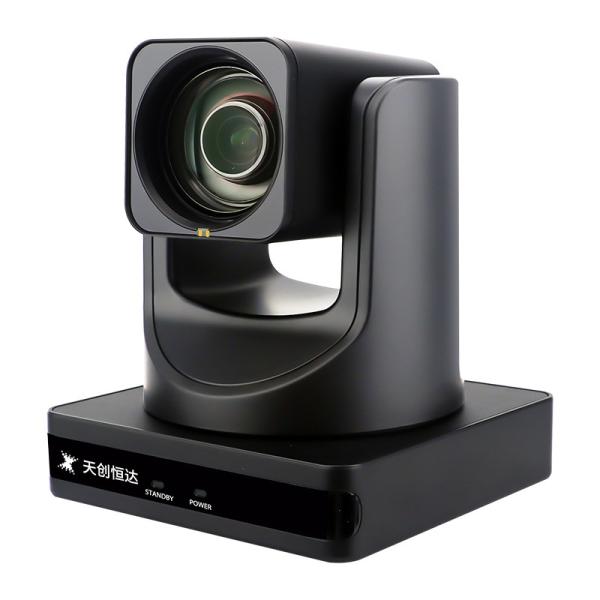

Model 880U
Name USB3.0 HD Video Conference Camera
Camera
Video System 1080P, 720P, 540P, 480P, 360P, 240P etc.
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View 44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +90°
Pan Speed Range 2.7° ~ 35.7°/s
Tilt Speed Range 2.7° ~ 31.5°/s
H & V Flip Support
Image Freeze Support
Number of Preset 255
Preset Accuracy 0.1°
USB Featured
Operate System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System / Compression YUV 4:2:2 / H.264 / MJPEG
Video Format YUY2 (BULK): max to 1080P@30fps
YUY2 (ISOC): max to 1080P@30fps
H.264 AVC: max to 1080P@30fps
H.264 SVC: max to 1080P@30fps
MJPEG: max to 1080P@30fps
Audio on USB Support
USB Video Communication Protocol UVC 1.1~1.5
UVC PTZ Support
Input/Output Interface
USB Interface 1xUSB3.0: Type B female jack
Audio Interface 1-ch: 3.5mm Audio Interface, Line In
Communication Interface 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)/USB B type(DC IN 5V)
Generic Specification
Input Voltage DC 12V/DC 5V
Current Consumption 1.0A (Max)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption 12W (Max)
MTBF >30000h
Size 144mm x 144mm x 167.9mm
Net Weight 1.285KG

1.1 Features

l Full Function USB Interface

Full function USB interface, compatible with USB 3.0 and USB 2.0, support audio and encoding output, and support the UVC
V1.1 protocol.

l 1080P Full HD

High-quality HD CMOS sensor with 2.07 million effective pixels for high-quality images up to 1920x1080.

l 72.5° Wide-angle-lens +16x Digital Zoom

The exclusively customized 72.5° high-quality ultra-wide-angle lens, support 12x optical zoom and 16x digital zoom.

l Low Illumination

The new CMOS image sensor with ultra-high SNR can effectively reduce the image noise under low illumination. The application of 2D and 3D noise reduction algorithm greatly reduces the image noise even under the condition of ultra-low illumination, it keeps the picture clean and clear, and the SNR of image is as high as 55dB.

l PoE

The wired network supports PoE power supply, the control, power supply, video and audio can be completed with a network cable.

l Remote Control

The camera can be controlled remotely through the RS232, RS485, network and
USB port.

l H.264 Slice/H.264 SVC

The H.264 stream supports Slice and SVC encoding modes, and suitable for high-end USB conference video applications.

l Dual Stream

Support two stream output (YUY2, MJPEG, H.264 each of both) to reduce the host codec pressure.

l Multiple & Complete Interfaces

Support 1080P video output through HDMI, USB 3.0 and network simultaneously.

l Three Power Supply Modes

Simultaneously support USB 5V, 12V power adapter and PoE power supply.

l High Frame Rate

1080P output frame rate up to 60fps.
