400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support
400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support
400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support
400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support
400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support
400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support
400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support
400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support
Specifications
Place of Origin :
Beijing, China
Brand Name :
TCHD
Packaging Details :
Carton box
Supply Ability :
500 Piece/Pieces per Month external hdmi capture device
MOQ :
2 pieces
Price :
$500.00 - $575.00/pieces
Channels :
4
Video Compression Format :
H.264
SDK :
SDK support
Compression mode :
Software compression
Operation System Support :
Windows,Linux
Nature :
1080P60 live streaming
Input :
SDI
Output :
HTTP/RTMP/RTSP
Video encoding :
H.264
Resolution :
1920x1080P60
Type :
M2
Application :
Live streaming, webcasting, video conference, game capture
Port :
Beijing
Description

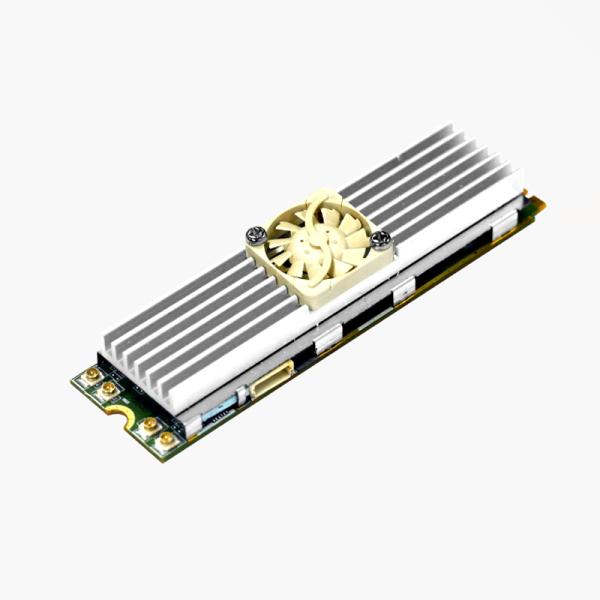

4 channel 1080p60 3G-SDI M.2 capture

400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support400N4 M2 SDI 1080p60 3G-SDI M2 Capture Card High Efficiency SDK Support

Introduction

Model

400N4 M2 SDI

Max Input Resolution

In 1920×1080p@60/50 → Out1920×1080p@60/50

Recording Mode

Software Compression, Real-Time Mode

Dimension

22×80 (mm) M.2 Type M

Interface

M.2 (PCIe×4 )

Video input

3G-SDI

Video Raw Data Format

YV12, NV12, YUY2, RGB24, RGB32, P010,

Vdieo Raw Data Resolution

3G-SDI
1920×1080p@60/50fps
HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI
720×480i@60fps
720×576i@50fps

Recording Video Format

H.264 (Software Compression)

Color Format

Capture/Preview
4:4:4 8bit RGB24
4:4:4 8bit RGB32
4:2:2 8bit YUV2
4:2:0 8bit YV12,NV12
4:2:0 10bit P0110

Video Processing

Video, Audio and VANC Capture

Video Cropping and Scaling

Auto Signal Detection

Deinterlace Engine

Multi Instances

Audio Input

4×Stereo Embedded Audio

Audio Format

Stereo / 16-bit / 32000 ~ 48000Hz

Software Support

Vmix/OBS/ZOOM/Skype/Teams/Discord/Slack/Cisco Webex/GoTo Meeting

*DirectShow/V4L2 Compatible Software Supported

System Requirement

OS Support

Windows 7 / Windows 8 / Windows 8.1 / Windows 10/ Windows11

Linux 4.8 or Higher ( 32-bit and 64-bit )

Linux ARM

nVIDIA Jetson TX2,NANO,AGX Xavier, Xavier NX
