Connection

Host Interface

USB3.0, *300-350MB/s throughput

USB2.0, *40MB/s throughput

Input Interface

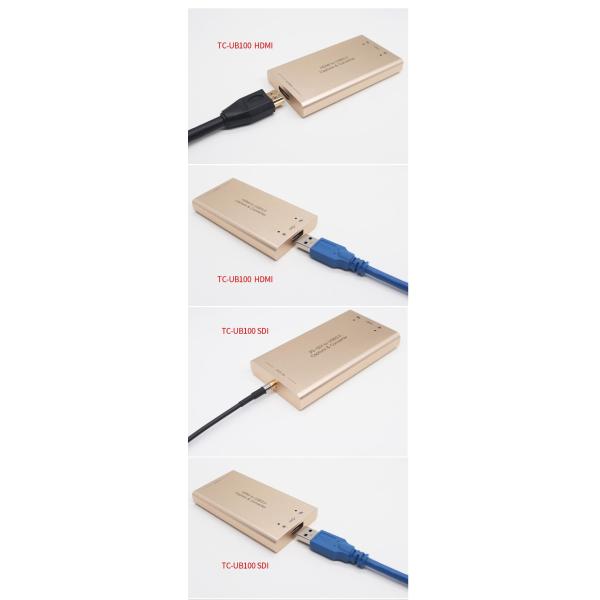

1 HDMI interface or 1MCX interface (can convert to BNC interface)

HDMI Input

1 1080p/60Hz HD HDMI

SDI Input

1 SD/HD/3G-SDI

HDMI Audio Input

1 LPCM audio signal

SDI Audio Input

1 SDI embedded SDI audio (48KHz)

Standards

HDMI Input Interface

It meets HDMI 1.4a standard, and support up to 1080p/60Hz 8-bit, (RGB, YUV)

SDI Input Formats

SD/HD/3G-SDI, SMPTE-259/274/296/372/424/425/292

HDMI Output Formats

Resolutions: 640×480 / 720×480 / 720×576 / 768×576 / 800×600 / 1024×768 /

1280×720 /1280×800 / 1280×960 / 1280×1024 / 1368×768 / 1440×900 / 1600×1200

/ 1680×1050 / 1920×1080 / 1920×1200 / 640×360 / 856×480 / 960×540 / 1024×576

Frame Rate: 25/29.97/30/50/59.94/60 fps

SDI Output Formats

Video Sampling Rate

HDMI: 165MHz SDI:270Mb/s, 1.485Gb/s, 2.97Gb/s

Audio and Video Capture

It meets the standards of UVC (USB video class) and UAC(USB audio class)

Output Color Space

YUY2, RGB24

Video Process

Color Space Switch

Hardware Color Space Switch

Image Scale

Hardware Scale

Image Adjustment

The image adjustment of brightness, contrast, hue, saturation

Others

OS Support

(x86 and x64 version): Windows 7

Windows Server 2008 R2

Windows 8

Windows 8.1

Linux (Kernel version 2.6.38 and above)

OS X (10.8 and above)

Software Compatibility

Windows Media Encoder (Windows)

Adobe Flash Media Live Encoder(Windows, OS X)

Real Producer Plus(Windows)

VLC (Windows, OS X, Linux)

QuickTime Broadcaster (OS X)

QuickTime Player (OS X)

Wirecast (Windows, OS X), etc.

APIs

DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux)

Onboard Memory

64MB DDR2, 16 bits@ 300 MHz

Upgrade

The firmware can be upgraded

Size

84.25×42.8×12.6 (L/W/H, mm)

Power Consumption

<= 2.5W

Operating Temperature

0-50 degree centigrade

Storage Temperature

-20-70 degree centigrade

Relative Humidity

5%-90 %
