Specifications
Place of Origin :
Beijing, China
Brand Name :
TCHD
Packaging Details :
Carton box
Supply Ability :
500 Piece/Pieces per Month
Price :
$270.00 - $285.00/pieces
Channels :
other
Video Compression Format :
other
Input Interface :
1xHDMI and 1x SDI and Line in aludio
Out put :
USB2.0/3.0
Audio Input :
Line in audio
Support OS :
Window, Linux, IOS, Android, OS X
Resolution :
1920x1080P60
Type :
Free driver
Audio :
HDMI SDI embedded audio, line in audio
Feature :
Plug & play
Application :
Live streaming, webcasting, video conference, game capture
Power adapter :
No need of extra power adapter
Port :
Beijing
Description

Professional full hd 1080p audio video recorder hdmi/sdi grabber card dongle to usb

USB2.0/3.0 Out Put HDM I Sdi To Video Grabber Capture Card For High Performance VideoUSB2.0/3.0 Out Put HDM I Sdi To Video Grabber Capture Card For High Performance VideoUSB2.0/3.0 Out Put HDM I Sdi To Video Grabber Capture Card For High Performance Video

Introduction
USB2.0/3.0 Out Put HDM I Sdi To Video Grabber Capture Card For High Performance Video

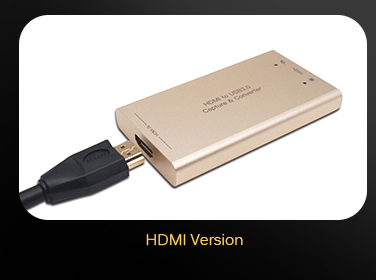

The UB610 HDMI/SDI to USB3.0 Capture is the simplest and most powerful solution to get your HDMI SDI video and audio into your computer. No drivers to install and works with most software on PC and Mac allowing live video streaming, webcasting or video conferencing to Skype, Facebook Live, Youtube Live, Livestream, UStream, Dacast, Wowza Cloud and many more.The UB610 HDMI/SDI to USB3.0 Capture can capture various video sources with resolutions up to 1920x1080p@60fps. The UB610 HDMI/SDI adopts the USB 3.0 interface, which can realize high-speed transmission.
The UB610 HDMI/SDI to USB3.0 Capture is the easiest and most affordable HDMI & SDI capture device on the market. It is a trued plug and play device requiring no drivers for its use.Extremely small, you can carry to anywhere.Get power from the PC directly and has no need of extra power adapter, which enables it to be carried easily.

Host Interface

USB3.0,300-350MB/s

Program

Low power consumption Lattice EP3-35 FPGA

DDR

1GB DDR3

Video Input

HDMI

1xHDMIinput,could convert to DVI; Meet HDMI1.4 standard

SDI

Support SMPTE 260M,SMPTE 274M ,SMPTE 295M and SMPTE 296M

Analog audio

Analog audio input,support dual channels stereo audio

Video source

HDMI

Resolution up to 1920*1080@60FPS,

SDI

Resolution up to 1920*1080@60FPS,

HDCP

Support HDCP

Audio mix

Support analog audio mix to digital HDMI or SDI audio

SDI Input

HD-SDI signal transfer distance up to 230m

Support SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS

Support RGB 4:4:4,YCbCr 4:4:4,YCbCr 4:2:2

Support 10/12-bit color space

Support SDI embedded audio

Support Level-B format signal input

Support TV input resolution

1920x1080p(60/59.54/50/30/29.97/25/24/23.976)

1920x1080i(60/59.54/50/30/29.97/25)

1280x720p(120/100/60/59.54/50/30/29.97/25/24/23.976)

720x576p(100/60/50)

720x576i(100/60/50/25)

720x480p(240/239.76/120/60)

Support PC graphics card input resolution

640x480p(60/72/75/8HZ)/800x600p(60/72/75/85HZ)

1024x768p(70/75/85HZ)/1280x768p(60/75/85HZ)

1280x960p(60//85HZ)/1280x1024p(60/75/85HZ)

1600x1024p60/1600x1200p60/1680x1050p60/1920x1080p60

1920x1200p60/1152x870p75/1024x576p60/1280x720p60

1360x768p60/1440x788p60/1440x960p72

1440x1050p60/1152x864p75

Output color space

YUV 4:2:2 (YUY2),RGB 8:8:8 (RGB24),NV12(YUV420)

Audio

Support UAC(USB audio class),Stereo /16bit 48kHz

Support UVC free driver

Meet UVC (USB video class), UAC(USB audio class)

USB2.0

Support USB2.0

Develop standard

DirectShow (Windows), V4L2 (Linux)

Protocol

Support RTSP ,could use VLC to monitor

Support RTMP stream video to FMS server

Software compatibility

Windows Media Encoder (Windows)
Adobe Flash Media Live Encoder(Windows, OS X)
Real Producer Plus(Windows)
VLC (Windows, OS X, Linux)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Wirecast (Windows, OS X)

Support OS

x86 and x64 version:

Windows 7
Windows Server 2008 R2
Windows 8
Windows 8.1
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)

Product size

96*64*18.5mm(L*W*H)

Shell

Metal

Applications
