Environmental Salt Spray Test Chamber Accelerated Corrosion Testing Apparatus
Environmental Salt Spray Test Chamber Accelerated Corrosion Testing Apparatus
Environmental Salt Spray Test Chamber Accelerated Corrosion Testing Apparatus
Environmental Salt Spray Test Chamber Accelerated Corrosion Testing Apparatus
Specifications
Certification :
CE Complied
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
500 sets/ month
Delivery Time :
5-7 working days
Packaging Details :
Wooden case outside with pallet, in total 1-2CBM
Name :
Salt Spray Test Chamber
Model :
TZ-D90
Keyword :
Salt Spray Test Chamber
Feature :
Environmental
gas rod :
no gas source
protection :
Double pressure
Description

Environmental Salt Spray Test Chamber Accelerated Corrosion Testing Apparatus

Salt Spray Test Chamber Introduction

Salt Spray Test Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.

Salt Spray Test Chamber FEATURE

The shell of the machine is made of high quality PVC board, the structure is strong and never deformed;
Temperature controller, digital display, PID control, precise control, balanced long-term operation without drift, error ±0.1ºC;

The inner shell FRP is integrally molded, corrosion-resistant, collision-resistant, easy to clean, and no leakage; precision glass nozzle ensures no crystal blockage during operation;

Unique gas rod (no gas source), easy closing door, water-sealed structure, no salt spray overflow;
The spray tower is equipped with cone diffuser, with functions of guiding fog, adjusting fog amount and even fogging;

Double pressure high speed and over temperature protection, insufficient water level warning;
Automatic / manual water supply system, automatic / manual replenishment of water level,and the test is uninterrupted.

PROJECTS

The test is based on the following items:
1. Neutral salt spray test (NSS test, AASS acid salt spray test, CASS accelerated salt spray test)
2. Surface treatment with salt spray test

Salt Spray Test Chamber TECHNICAL PARAMETERS

Model TZ-D90 Salt Spray Test Chamber
Capacity 270L
Interior Size (L*W*H) mm 900*600*500
External Size (L*W*H) mm 1400*850*1250
Weight 300Kg
Max Power 4.5KW
Max Current 15A
Power Supply Conditions and Sources

1. AC 220V two-phase + protective ground; Voltage fluctuation range 10% V;

2. Frequency fluctuate range within 50±0.5HZ; Power supply in TN-S or TT mode

3. The grounding resistance of the protective ground wire is less than 4Ω.

4.The user is required to configure the corresponding capacity of air or power switch for the equipment at the installation site. This switch must be used to independently control the device.
Installation Condition

1.Room with convection system, independent installation to prevent escaping salt spray from corroding surrounding equipment when the cover is removed.

2. The distance between the left, right and rear side panels of the test box and the wall shall not be less than 600mm, and the distance between the front and the wall shall not be less than 800mm.
Main Control Parameters

Relative Humidity: ≥85%HR

Temperature Resolution:0. 5℃

Temperature Deviation: ±1℃

Temperature Uniformity:1℃

Temperature Fluctuation:±0.5℃

Spraying(m1/80cm²/h)1.0～2.0(Collect at least 16 hours, take the average)

Spray Pressure:1.00±0.01kgf/cm²

PH Value:Neutral 6.5 to 7.2 Acidity 2.8 to 3.5

Heating Rate

Test Room Temperature:RT→+50℃≤50 min

Pressure Barrel Temperature:RT→+65℃≤35 min

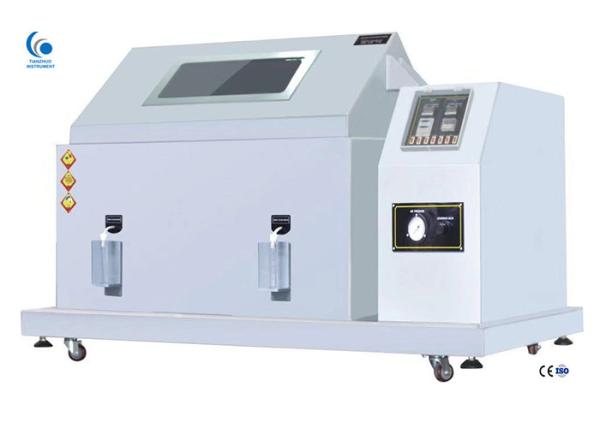

PRODUCT PHOTOS

Environmental Salt Spray Test Chamber Accelerated Corrosion Testing Apparatus
