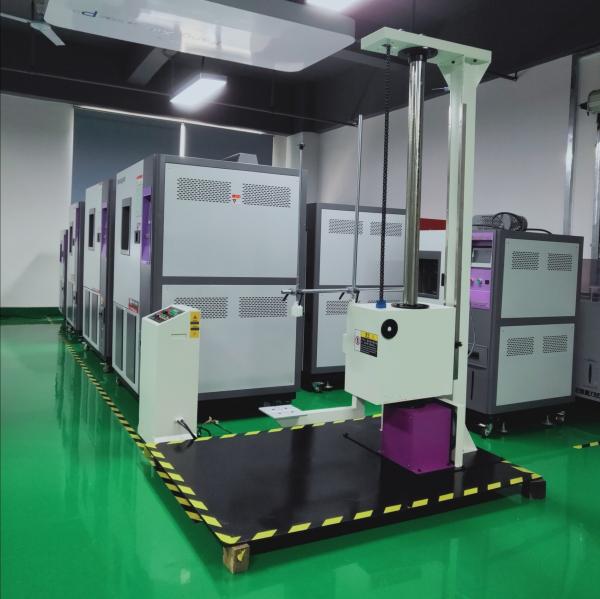

Full Automatic Drop Test Equipment , Single Wing Design Lab Drop Tester
Full Automatic Drop Test Equipment , Single Wing Design Lab Drop Tester
Full Automatic Drop Test Equipment , Single Wing Design Lab Drop Tester
Full Automatic Drop Test Equipment , Single Wing Design Lab Drop Tester
Specifications
Model Number :
TZ-HG1500
Certification :
CE Complied
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
500 sets/ month
Delivery Time :
5-7 working days
Packaging Details :
Wooden case outside with pallet, in total 1-2CBM
Item :
Drop Test Equipment
Feature :
Full Automatic
Height display :
digital display
Drop height error :
±10mm
The maximum weight of the product :
60Kg
Net weight :
600 kg
Description

Full Automatic Drop Test Equipment , Single Wing Design Lab Drop Tester

Drop Test Equipment Features:

  1. full-automatic single-wing design, electric contraction arm, 9.8m/s2 drop acceleration, to ensure the free separation of the cargo carrier and the packaging specimen, to realize the free drop of the packaging specimen, with small impact vibration, stable and reliable, and to truly complete the surface, edge and Angle drop test
  2. with electric reset, electronic drop and electric lifting device, easy to use
  3. equipped with digital display height display and decoder for height tracking, so as to accurately give the drop height of the product, the error from the preset drop height is no more than 2% or 10mm.

Drop Test Equipment Specifications:

Model TZ-HG1500
Height range 300~1500mm
Height display digital
Drop height error ±10mm
The maximum weight of the product 60Kg
The maximum size of the product 1000×800×1000mm
Impact panel size 1600×1100×20mm
The appearance of the machine 1600×1100×2230mm
The size of the control box 300×350×1100mm
Drop mode surface, edge, Angle
The motor power 1.1KW
Net weight 600 kg

Ista-1a /2A external tank drop test

Drop test of external container, usually using ista-1a or 2A standard established by iata.Most customers will choose the standard of 1A for testing. The test procedure of 1A and 2A is basically the same, but the drop height will be different.

Drop test procedure

1. First, check the product to make sure that the product being tested is a good product, including appearance and function.

2. Repackage to the original packing state, including the packing belt of the outer case (if any).

3. Choose the right floor, which must be smooth and hard.Such as concrete floor, iron plate, etc.

4. Test in the following order:

Test Sequence Parts Specific Surface, Angle, edge
1 Angle for the most vulnerable Angle. If not, test for 2-3-5
2 edge shortest side of the adjacent test Angle
3 edge next longest side of the adjacent test Angle
4 edge longest side of the adjacent test Angle
5 surface minimum surface
6 surface Relative minimum surface
7 surface A small plane
8 surface Relatively minor surface
9 surface The bedding face
10 surface Relative maximum

Details

Full Automatic Drop Test Equipment , Single Wing Design Lab Drop Tester
