5 Stations Keypad Life Tester For Key Switch , Computer Keyboard , Conductive Rubber Key
5 Stations Keypad Life Tester For Key Switch , Computer Keyboard , Conductive Rubber Key
5 Stations Keypad Life Tester For Key Switch , Computer Keyboard , Conductive Rubber Key
5 Stations Keypad Life Tester For Key Switch , Computer Keyboard , Conductive Rubber Key
Specifications
Model Number :
1220S
Certification :
CE Complied
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
500 sets/ month
Delivery Time :
5-7 working days
Packaging Details :
Wooden case outside with pallet, in total 1-2CBM
Item :
Keypad Life Tester
Stations :
5 Stations
Test pressure :
adjustable
Test trip :
10mm
Up and down stroke :
60mm
Application :
Key Switch , Computer Keyboard , Conductive Rubber Key
Description

5 Stations Keypad Life Tester For Key Switch , Computer Keyboard , Conductive Rubber Key

Keypad Life Tester Introduction:

Keypad Life Tester is suitable for the life aging test of key switch, computer keyboard, conductive rubber key, metal shrapnel key (commonly known as the pot) or the same type of key.It is also suitable for fatigue test of silicone rubber keys.With adjustable speed, any set number of times and several products at the same time (each product can be multi-point test), reach the number of times or power down to maintain the data.

Keypad Life Tester Specifications:

No Item parameter
1 Test station 5 stations
2 Test speed adjustable for 1-360 times/min
3 Test pressure the maximum is adjustable from 0 to 500g
4 Test trip 10mm
5 Up and down stroke 60mm
6 Test table size 80*80mm
7 Electrical conductivity test the key breaks the automatic stop device

Keypad Life Tester Features:

  1. it can test the product's durability and pass test at the same time;
  2. high speed test, up to 6 times per second, uniform speed, test completion time can be controlled;
  3. adjustable pressure, equipped with a dynamometer, can accurately control the strike force;
  4. can be externally connected with the load element and the display to display the current strike strength (optional);
  5. each station is independently controlled and does not affect each other;
  6. pass test always pass, or stop automatically when not pass;

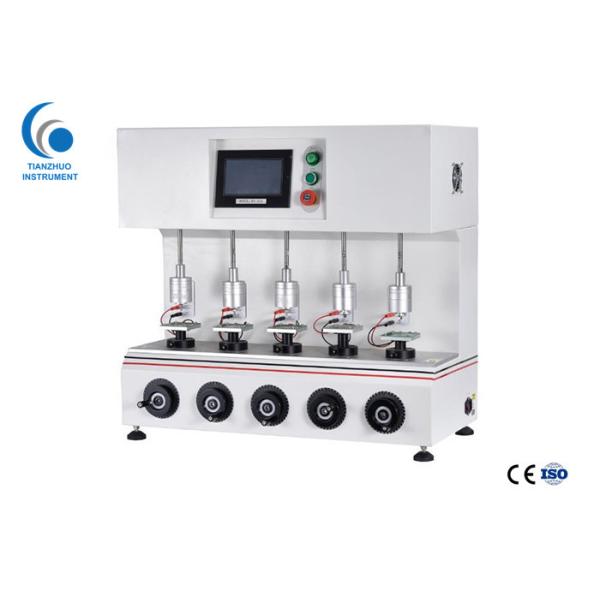

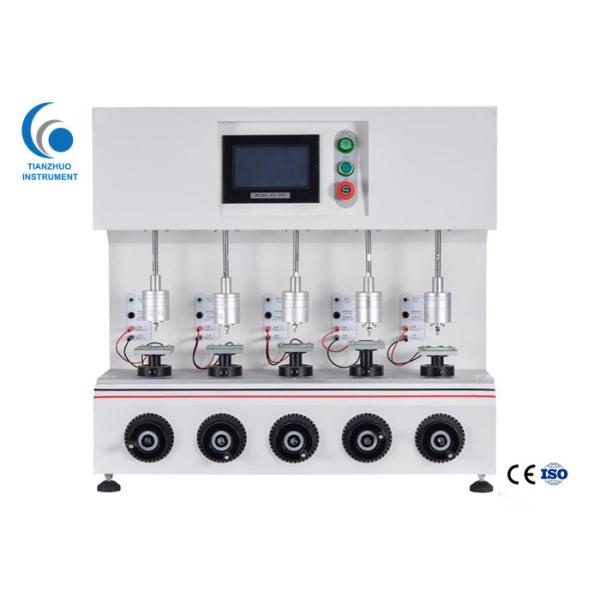

Keypad Life Tester Details

5 Stations Keypad Life Tester For Key Switch , Computer Keyboard , Conductive Rubber Key
