Standard Thermal Shock And Pressure Test Chamber / Thermal Shock Test Equipment
Standard Thermal Shock And Pressure Test Chamber / Thermal Shock Test Equipment
Standard Thermal Shock And Pressure Test Chamber / Thermal Shock Test Equipment
Standard Thermal Shock And Pressure Test Chamber / Thermal Shock Test Equipment
Specifications
Model Number :
TZ-LR42
Certification :
CE Complied
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
500 sets/ month
Delivery Time :
5-7 working days
Packaging Details :
Wooden case outside with pallet, in total 1-2CBM
Name :
Thermal Shock And Pressure Test Chamber
Internal dimensions :
400mm*350mm*300mm
Temperature deviation :
±2.0°C
Conversion time :
Within 10 seconds
High temperature slot :
RT (normal temperature) ~ +180 °C
Other Name :
Thermal Shock Test Equipment
Description

Standard Thermal Shock And Pressure Test Chamber / Thermal Shock Test Equipment

Thermal Shock And Pressure Test Chamber Application:

Thermal Shock And Pressure Test Chamber consist of the Test Zone, Heat Storage Zone and Cold Storage Zone. The specimen stay in test zone, hot and cold air will be blew from the storage zones to achieve rapid temperature change for thermal shock.

Thermal Shock And Pressure Test Chamber FEATURE:

  1. The equipment is divided into three parts, which are high temperature box, low temperature box and test box.
  2. The cold and hot air road switching mode will be applied to the test area to realize the purpose of the cold and heat shock test.
  3. Using the most advanced measuring device, the controller adopts the man-machine interface controller of large color liquid crystal touch control dialogue LCD. It is easy to operate, easy to learn, stable and reliable. In English, complete system operation condition,
  4. When the cold and heat shock conditions are carried out, two slots or three grooves and cold and hot punching can be selected to carry out the function of the impact of the high and low temperature testing machine.
  5. It has fully automatic, high precision system loop, any machine parts movement, P.L.C locking process, P.I.D automatic calculation control, and high temperature control precision.

Thermal Shock And Pressure Test Chamber SPECIFICATIONS:

Power supply 380V 50 HZ
Test temperature High temperature impact range: 60 ° C ~ +150 ° C
Low temperature impact range: -10 °C ~ -40 °C
Conversion time Within 10 seconds
High temperature slot RT (normal temperature) ~ +180 °C
Heating time About 30 minutes
Low temperature slot RT (normal temperature) ~ -65 °C
Pre-cooling time About 80 minutes
Resolution 0.1 ° C
Control accuracy ±0.5°C
Temperature deviation ±2.0°C
Load No load (if power supply load test is required, power is required)
Test restrictions This equipment prohibits the testing and storage of flammable, explosive, corrosive and other items (if the test needs to be explained in advance)
Temperature recovery time 5 minutes
Temperature exposure time High temperature zone, 30 minutes each in low temperature zone

Thermal Shock And Pressure Test Chamber ADVANTAGES:

  1. The product has excellent performance and durability with reasonable price,can be customized according to the special needs of customers.
  2. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.
  3. Famous brands are adopted for key components to guarantee the performance and quality.

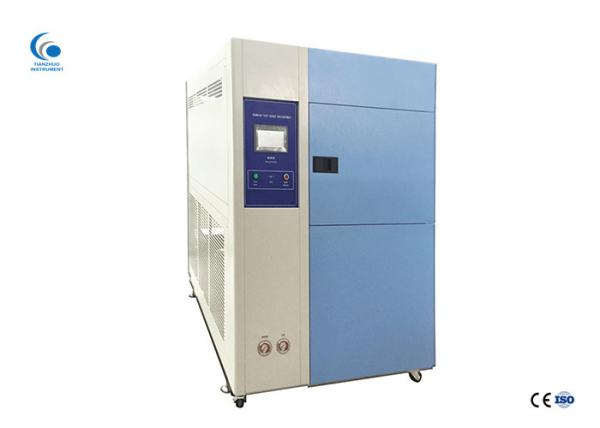

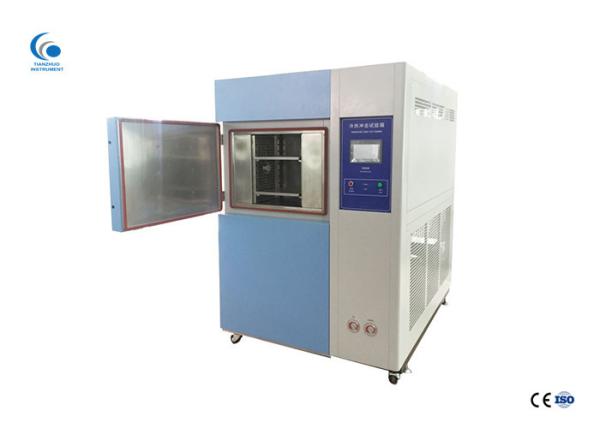

Thermal Shock And Pressure Test Chamber Details

Standard Thermal Shock And Pressure Test Chamber / Thermal Shock Test Equipment
