2D And 2.5D Cnc Vision Measuring System , Automatic Measuring Machine
2D And 2.5D Cnc Vision Measuring System , Automatic Measuring Machine
Specifications
Model Number :
VMS-5040H
Certification :
CE Complied
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
500 sets/ month
Delivery Time :
5-7 working days
Packaging Details :
Wooden case outside with pallet, in total 1-2CBM
Model :
VMS-5040H Cnc Vision Measuring System
Resolution :
0.5μm
Indication Error :
E1XY=(2.5+L/100)μm
Camera :
1/2" color CCD camera
Warranty :
12 months
Other Name :
Automatic Measuring Machine
Place of origin :
Guangdong, China
Name :
CNC Video Measuring System
Description

2D And 2.5D Cnc Vision Measuring System , Automatic Measuring Machine

Cnc Vision Measuring System Advantages:


1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

2. The product has excellent performance and durability with reasonable price.

3. Famous brands are adopted for key components to guarantee the performance and quality.

Cnc Vision Measuring SystemSpecifications:

Model VMS-5040H Cnc Vision Measuring System
Metal table size 786×636mm
Glass table size 570×470mm
Travel 470×370mm
Indication Error E1XY=(2.5+L/100)μm
Video System 1/2" color CCD camera
0.7~4.5× zoom lens. Total magnification: 20~128×(19.5 inches display. Resolution: 1440*900)
Field of view: 11.1mm~1.7mm
Power supply: AC 100-240V 50/60Hz. Power: 1800W (excluding PC)
Dimension (L×W×H) 1200×1270×1870
Z-axis Travel(mm) 200 (Can be customized to 400mm)
Weight (kg) 850

Cnc Vision Measuring System Features:

  1. The seft-developed Measuring software has meet various requirements of customers.
  2. Adopts subpixel subdivision technique to improve resolving power of boundary.
  3. Equipped with joystick, which is also able to be programmed by software.
  4. SPC data processing system and large quantities of jig measurement.
  5. X, Y, Z-axis all adopt servo control system - Quick positioning with high precision, and stable operation.
  6. Adopts self-developed sophisticated embedded module control system installed within the instrument, which ensures a more stable operation.
  7. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for complicated workpiece.
  8. Detects the measured workpiece’s specific location by laser indicator, which is quick to position, and convenient to operate.

Cnc Vision Measuring System Application:

Widely used in the field of electronics,instrument, and plastic, floor type CNC video measuring machine is mainly used in two dimension measuring and auxiliary three dimension measuring as well.

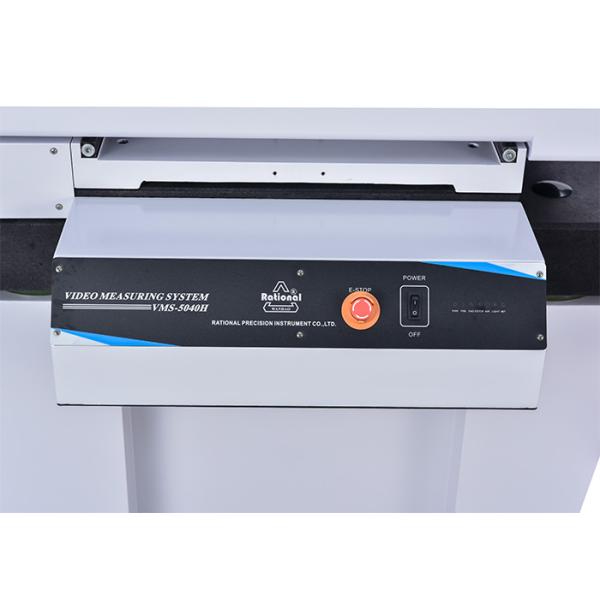

Cnc Vision Measuring System Details

2D And 2.5D Cnc Vision Measuring System , Automatic Measuring Machine
