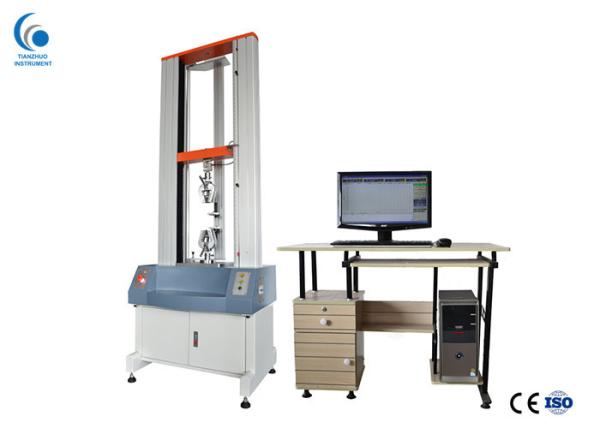

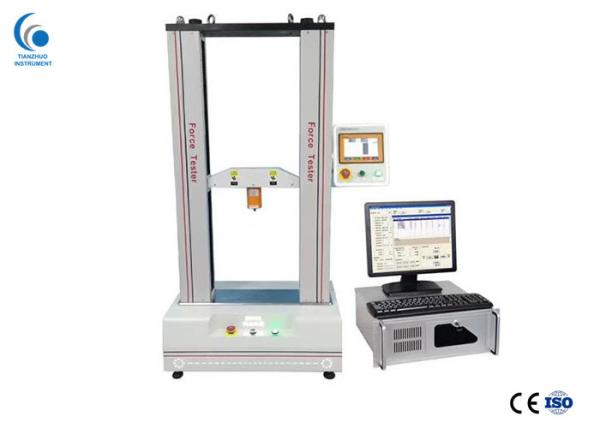

Double Column Tensile Testing Machine For Rubber, Plastic , Leather
Double Column Tensile Testing Machine For Rubber, Plastic , Leather
Double Column Tensile Testing Machine For Rubber, Plastic , Leather
Double Column Tensile Testing Machine For Rubber, Plastic , Leather
Specifications
Model Number :
TZ-S2000
Certification :
CE Complied
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
500 sets/ month
Delivery Time :
5-7 working days
Packaging Details :
Wooden case outside with pallet, in total 1-2CBM
Product name :
Tensile Testing Machine
Capacity :
1kg、2kg、5kg、10kg、20kg、50kg、100kg、200kg、500kg、1000kg、2000kg（Choose a set）
Sensor type :
Model S high precision sensor
Control mode :
LCD display stand-alone control
Power unit :
kgf、gf、N、kN、lbf
Length unit :
mm、cm、Inch
Stress unit :
MPa、kPa、kgf/cm2、lbf/in2
Stroke resolution :
1/500,000
Description

Double Column Tensile Testing Machine For Rubber, Plastic , Leather

PRODUCT INTRODUCTION:

This machine can test rubber, plastic, leather, metal, nylon thread, fabric, paper and aviation, packaging, construction, petrochemical, electrician, vehicle...Materials such as tension, compression, bending, shear, bonding, stripping, tearing...For quality control, incoming material inspection, physical test, mechanical research, material development basic equipment.

Conform to the standard:

It can carry out many kinds of tests stipulated by GB, ISO, ASTM, BS, DIN, JIS and other national or international standards.

SPECIFICATIONS:

Model TZ-S2000
Capacity to choose 1kg,2kg,5kg,10kg,20kg,50kg,100kg,200kg,500kg,1000kg,2000kg(Choose a set)
Sensor type Model S high precision sensor
Control mode LCD display stand-alone control
Power unit kgf,gf,N,kN,lbf
Length unit mm,cm,Inch
Stress unit MPa,kPa,kgf/cm2,lbf/in2
Stroke resolution 1/500,000
Force accuracy ±0.5%
The experimental speed 0.01-500mm/min computer setting
Effective travel 700mm
Experimental width Ø400mm
Stop mode Overload stop, emergency stop key, automatic stop of specimen failure, automatic stop of upper and lower limit setting, automatic reset
output microwriter
motor drive Servo motor + servo driver
The machine size(W*D*H) 720mmx520mmx1500mm
Use the power supply 220V 50Hz
Mechanical Imported synchronous wheel, synchronous belt + high precision ball

Application:

Applied in Tape, automobile, ceramic, composite material, construction, food and medical equipment, metal, paper, packaging, rubber, textile, wood, communication and various special materials.

Test Software Description:

Software support: simplified Chinese, traditional Chinese, English support, 3 types: SI international standard units, kg-cm units, lb-inch British system units, 6 kinds of commonly used units: n-mm-mpa, kn-mm-mpa, gf-cm-kgf/cm2, kgg-cm-kgf /cm2, lb-inch-kpsi, kp-inch-kpsi, easy to switch units. Meet the use of different regional standards.

Function:

  1. The base is supplemented by aluminum alloy profile column treated by advanced plastic spraying;
  2. Adopt high precision, no gap ball screw and timely gauge belt as the guarantee of transmission system accuracy;
  3. Fully computerized data collection and motion control;
  4. Test software under the Windows XP operating system, users can use the existing functions of the software to complete the mechanical test project, or edit the test method according to their own actual needs;
  5. The output of test results can be set arbitrarily;
  6. Three basic configurations of intelligence: mainframe, microcomputer and printer.

PRODUCT ADVANTAGES:

  1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.
  2. The product has excellent performance and durability with reasonable price.
  3. Famous brands are adopted for key components to guarantee the performance and quality.
  4. We company established a sound quality assurance system and complete after-sales service guarantee system.
  5. Free warranty for 1 year.

Service

1. Pre-service

♦ 24 Hours online service for your consult.

2. Middle service

♦ Do customer's request:

♦ Choose payment term you convienent.

♦ Promptly production and delivery,inform you in time.

3. After sale service

♦ 1 year warranty service and all life maintenance.

♦ Technical Egineer are avalible for oversea trainning.

♦ Remote control technical consult
