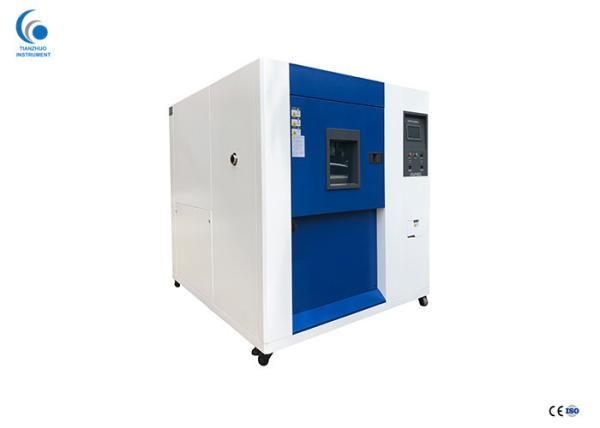

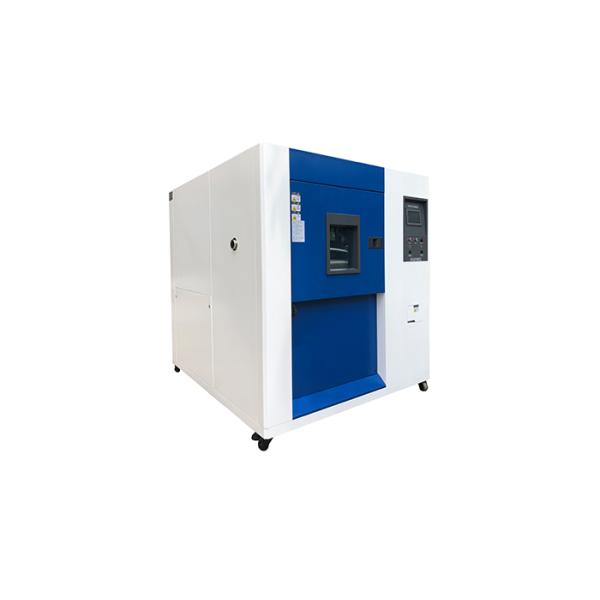

Lab Use Temperature Humidity Test Chamber For Heat And Cold Resistance
Lab Use Temperature Humidity Test Chamber For Heat And Cold Resistance
Specifications
Model Number :
TZ-HW80
Certification :
CE Complied
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
500 sets/ month
Delivery Time :
5-7 working days
Packaging Details :
Wooden case outside with pallet, in total 1-2CBM
Model :
TZ-HW80
Other name :
Environmental Test Chamber
Warranty :
1 year
Suitable for :
testing various products or materials
Touch controller :
Programmable
Internal Volume(L) :
80
Description

Lab Use Temperature Humidity Test Chamber For Heat And Cold Resistance

Temperature Humidity Test Chamber Usage

Test the heat and cold resistance, dry and wet resistance by simulating a more hostile environment

Temperature Humidity Test Chamber Characteristics

  • Adopt imported digital display temperature control meter, moisture, temperature and humidity controlling visual display.
  • The working chamber is made of high quality 304 stainless steel mirror plate, shell electrostatic plastic spraying and efficient thermal insulation layer.
  • Adopts steam humidifying method, automatic water circulation loop, with functions of automatic filling water.
  • The door is equipped with large viewing window, indoor lighting installation, can observe the test the test status of the sample.
  • Install cable test hole, electricity test sample for test.
  • Have over temperature, water shortage, leakage protection device such as a security


Temperature Humidity Test Chamber TECHNICAL PARAMETERS

Model TZ-HW80
Internal Volume(L) 80L
Dimensions Studio Size(mm) 400*400*500
Standard Machine Size(mm) 900*902*1350
Small Vertical External Size(mm) 1000*750*1650
Structure Combined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm)
Standard Weight (Kg) About 280
Performance Test Environment Conditions Environment temperature+25ºC,Relative humidity≤85%,No sample in test chamber.
Corresponding Standard

GB/T 5170.2-1996 "Method for verification of basic parameters of

environmental test equipment for electric and electronic products"
Test Method Completely stationary test mode for the object to be measured.
This method is the first choice for testing, research and semiconductor
screening of electronic components.
Parameters Control Methods Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
Temperature Range -40ºC~+150ºC -70ºC~+150ºC
Humidity Range 20%~98%R.H (0%～100% R.H can be customized)
Heating Rate 1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Cooling Rate 0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Uniformity Temperature: ±1.5ºC Humidity: ±2.5%R.H
Fluctuation Temperature: ±0.5ºC Humidity : ±2%R.H

Temperature

Calibration

Point

 +23 °C and +80 °C

FAQ

1. Can we use the test chamber do Alternating test?

We have two different kinds of high low temperature and Humidity Test Chamber, one is for alternating test, one is for thermostat test. Please feel free to contact us if you have any question about our test chamber.

2. Which payment terms are you doing?

PayPal, West Union, T/T, (100% payment in advance.)

3. Which shipment is available?

By sea, by air ,by express or as your requirement.

4. Which country you have been exported?

We have been exported to many countries, all most all around the world, like Malaysia, Vietnam, Thailand, United States, France, Spain, Mexico, Dubai, Japan, Korea, Germany, Porland Etc.

5. How long is the delivery time?

It's about 15-30 days.

Details

Lab Use Temperature Humidity Test Chamber For Heat And Cold Resistance
