Computerized Universal Tensile Testing Machine Steel Laboratory Equipments
Computerized Universal Tensile Testing Machine Steel Laboratory Equipments
Computerized Universal Tensile Testing Machine Steel Laboratory Equipments
Computerized Universal Tensile Testing Machine Steel Laboratory Equipments
Specifications
Model Number :
TZ-D200
Certification :
CE Complied
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
500 sets/ month
Delivery Time :
5-7 working days
Packaging Details :
Wooden case outside with pallet, in total 1-2CBM
Product name :
Universal Tensile Testing Machine
Capacity :
1kg、2kg、5kg、10kg、20kg、50kg、100kg（Choose a set）
Sensor :
Model S sensor
Display :
Computer display mode
Power unit :
kgf、gf、N、kN、lbf
Length unit :
mm、cm、Inch
Stroke resolution :
1/500,000
Force accuracy :
±0.5%
Description

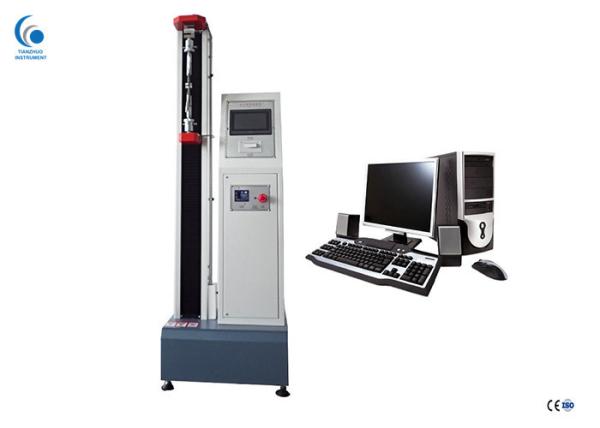

Computerized Universal Tensile Testing Machine Steel Laboratory Equipments

Universal Tensile Testing Machine INTRODUCTION:

Tensile testing machines are universal testing machines specially configured to evaluate tensile strength of specimens. Our tensile testers will measure characteristics such as ultimate tensile strength, yield strength, elongation and modulus. Each tensile test machine is configured to your testing needs by our application engineers with the correct controller, grips, and accessories. Due to our modular machine design, your tensile tester can also be equipped to perform other applications such as compression, cyclic, shear, flexure, bend, peel, and tear just by adding fixtures.

Universal Tensile Testing Machine SPECIFICATIONS:

Model TZ-D200
Capacity to choose 1kg,2kg,5kg,10kg,20kg,50kg,100kg(Choose a set)
Sensor type Model S high precision sensor
Display Computer display mode
Power unit kgf,gf,N,kN,lbf
Length unit mm,cm,Inch
Stress unit MPa,kPa,kgf/cm2,lbf/in2
Stroke resolution 1/500,000
Force accuracy ±0.5%
The experimental speed 1—500mm/min(adjustable)
effective travel 500mm
Test space 120mm
Stop mode Overload stop, emergency stop key, automatic stop of specimen failure, automatic stop of upper and lower limit setting, automatic reset
output microwriter
motor drive Servo motor + servo driver
Mechanical transmission Imported synchronous wheel, synchronous belt + high precision ball screw
The machine power 200W
The machine size(W*D*H) 400mmx350mmx1120mm
Use the power supply 220V 50Hz
The standard configuration A set of fixtures, a power cord, a manual

Universal Tensile Testing Machine Application:

Applied in machinery, metallurgy, construction, transportation, aviation, aerospace, shipping, ceramics, automotive, pharmaceutical and electronics industries.Applied in machinery, metallurgy, construction, transportation, aviation, aerospace, shipping, ceramics, automotive, pharmaceutical and electronics industries.

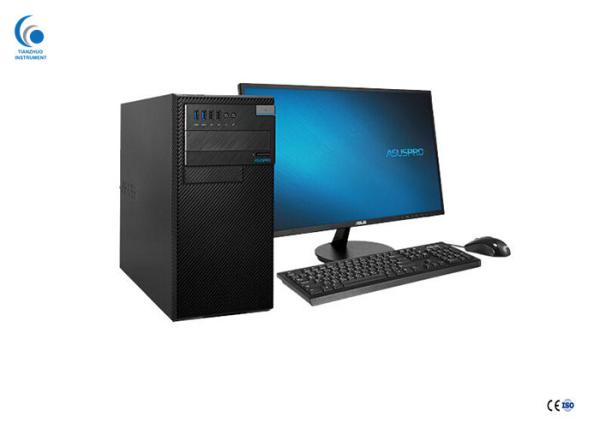

Test Software Description:

Software support: simplified Chinese, traditional Chinese, English support, 3 types: SI international standard units, kg-cm units, lb-inch British system units, 6 kinds of commonly used units: n-mm-mpa, kn-mm-mpa, gf-cm-kgf/cm2, kgg-cm-kgf /cm2, lb-inch-kpsi, kp-inch-kpsi, easy to switch units. Meet the use of different regional standards.

Computerized Universal Tensile Testing Machine Steel Laboratory Equipments

Function:

1. The base is supplemented by aluminum alloy profile column treated by advanced plastic spraying;

2. Adopt high precision, no gap ball screw and timely gauge belt as the guarantee of transmission system accuracy;

3. Fully computerized data collection and motion control;

4. Test software under the Windows XP operating system, users can use the existing functions of the software to complete the mechanical test project, or edit the test method according to their own actual needs;

5. The force measurement accuracy is better than 0.5, and the resolution of force value is 1/500000.
