Eccentric Bearing Vibration Table Test Equipment , Adjustable Vertical Vibration Machine
Eccentric Bearing Vibration Table Test Equipment , Adjustable Vertical Vibration Machine
Specifications
Model Number :
TZ-200+
Place of Origin :
Guangdong, China
Certification :
CE Complied
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Wooden case outside with pallet, in total 1-2CBM
Delivery Time :
5-7 working days
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
500 sets/ month
Other name :
Simulation Transport Vibration Test Table
Model :
TZ-200+
Advantage :
reasonable price ,customized design
warranty :
12 months
Programmable :
Yes
Auto Speed Range (r/m) :
0-50
Description

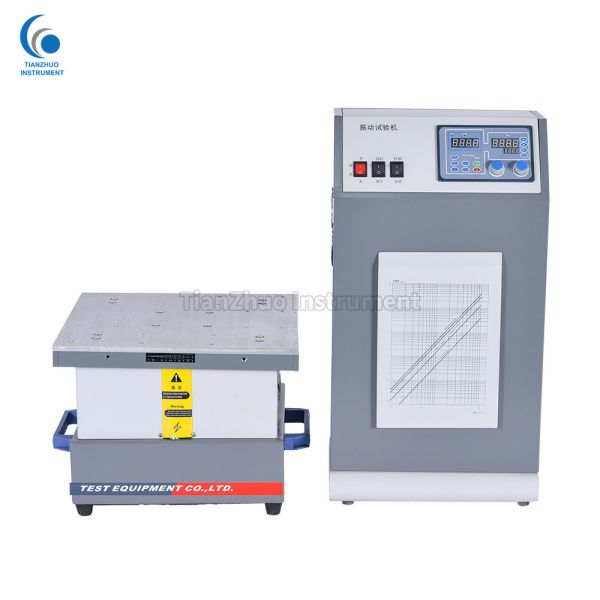

Simulation Transport Vibration Test Table (TZ-200+)

The speed control system adopts stepping motor and speed reducer, and the performance is stable and reliable. It has protection devices such as over-current, over-voltage, overload and so on.

EQUIPMENT OVERVIEW :

TＺ-200+ Transport Simulation Vibration Test able is developed to meet the market demand. It has the characteristics of best price, large vibration amplitude and simple operation. It is powerful and widely used in various industries.

These Carton Transportation Vibration Test Machine use eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision.


Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.


This type of equipment is used to detect early faults, simulate actual working conditions and examine structural strength test. widely used in national defense, aerospace, communications, electronics, automotive, home appliances and other industries.


FEATURE:

The method of dividing frequency band approximation is used to simulate broadband random vibration.

Each frequency band contains a main natural frequency and satisfies the power spectrum of divided frequency band.

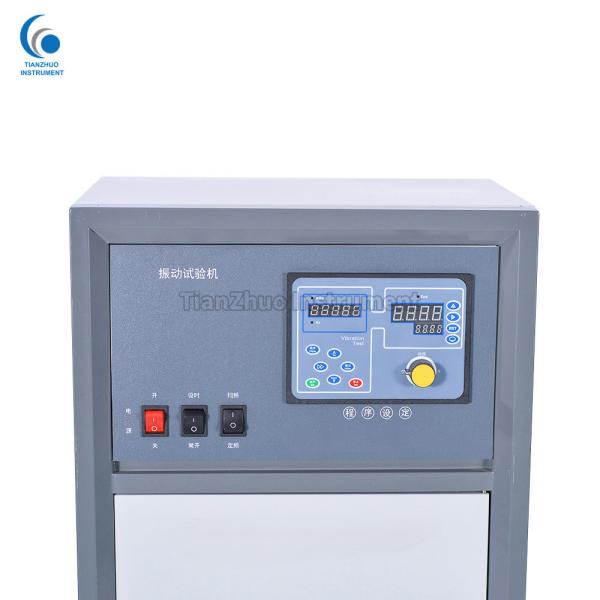

Imported frequency controller amplitude predictor, digital control and display frequency,

PID adjustment, make the equipment work more stable and reliable.

The control parameters are displayed in real time without manual intervention.

Fixed frequency and sweep frequency operation function adapt to various test requirements in different industries

Rotary vibration (horse riding), meets ISTA transportation standards.

Embedded amplitude prediction program ,easy to adjust amplitude.

Four - point synchronous vibration with excellent uniformity of vibration.

Add anti-interference circuit to solve the interference of strong electromagnetic field to the control circuit.

Very low noise, synchronous noise belt drive.

Easy to operate, unique structural design, no auxiliary work , simple and safe.

The base of the machine adopts neutral rubber cushion, which is easy to install and run smoothly.



TECHNICAL PARAMETERS:

Model TZ-200+
Max Load Capacity(Kg) 200
Manual Speed Range (r/m) 0-50
Auto Speed Range (r/m) 0-50
Display Accuracy(r/m) 0.01
Displacement Range (mm) 2～25.4(Fixed In The Factory)
Test Mode Manual Speed Range / Automatic Frequency Sweep
Vibration Direction Rotary (Horse Racing)
Vibration Mode Belt Drive, Four-axis Synchronization
Mock Object Level 3 (Or Above) Highway Vehicle Transport Vibration
Simulation Speed Level 3 Road 35km；Intermediate,Sub-high Class Pavement 50-60km
Time Range 0.01s-99.99h
Working Table Size (mm) 1500×1000×460 (L×W×H)
Table Body Size(mm) 1550×1150×1050 (L×W×H)
Controller Body Size(mm) 500×400×1060 (L×W×H)
Power Supply Voltage (V/Hz) Three-phase 380 vac plus or minus 5%
Consumed Power (KVA) 4.0
Cooling Air Cooling
Standard GB/T2423.10
With the development of technology, the product structure and parameters will be improved constantly. If the sample information is slightly inconsistent with the real object, the real object shall prevail,welcome to inquire.
