Product name :
Horizontal profile projector, optical comparator
Application :
measuring precision sizes, do comparation
Resolution :
0.5μm or 0.0005mm
Power supply :
100V-240V 50/60Hz
Type :
Horizontal with high precision
Size :
φ300
Rotary range :
1' or 0.01°
Warranty period :
12 months
Description

CPJ-3020W horizontal profile projector optical comparator for measuring screw

-----Product profile-----

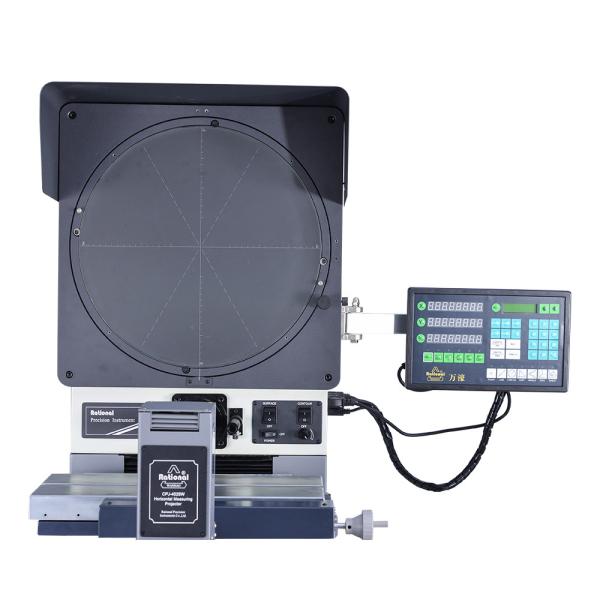

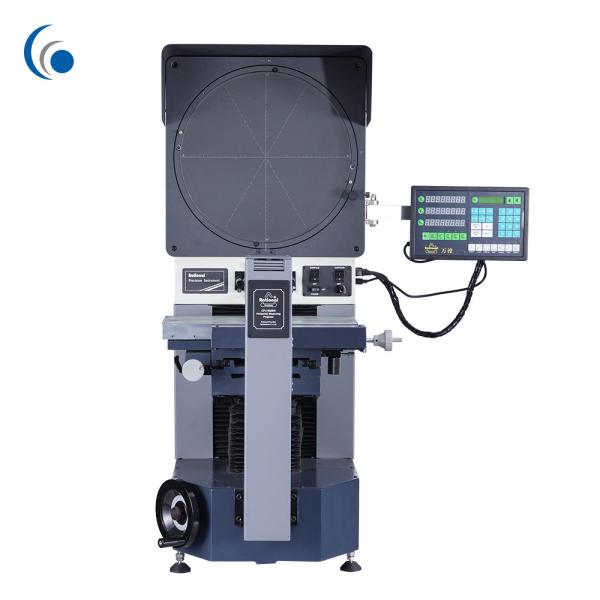

The horizontal measuring projector has stable and reliable mechanical structure and high magnification.It can accurately image the profile, section and surface shape of the measured workpiece to the projection screen. It is most suitable for observing and measuring the contour shape of cutter, gear, thread and spring.

-----Specification & Techincal data-----

Model CPJ-3020W
Worktable Worktable size(mm) 400*150
Axis X travel(mm) 200
Axis Z travel(mm) 100
Axis Y travel(mm) 75(Focusing)
Swing range ±15°
Axis X and Z resolution 0.5μm
Indication error(μm) 3.5+L/50, L is the length measured, unit: mm
Dimension(L*W*H) 1090*830*1010mm
Weight(kg) 160
Projector screen Size(mm) Φ300
Rotary range 0~360°
Resolution 1’ or 0.01°

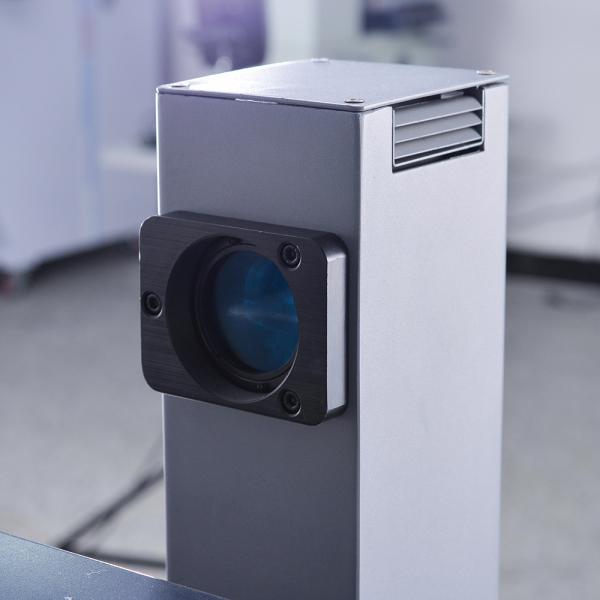

Lens Magnification* 10X(optional) 20X(optional) 50X(optional) 100X(optional)
Object view(mm) Φ30 Φ15 Φ6 Φ3
Working distance(mm) 77.7 44.3 38.4 25.3
Data processing system DC3000 multiple-function digital display to support multiple points sampling, rotary coordinate, point, line, circle, distance, angle measuring, etc.
Illumination

Transmission: 24V/150W halogen lamp;

Reflection: 21V/150W halogen lamp(double optical fiber illumination)
Power supply: AC 100-240V 50/60 Hz Total power: 400W
Optional components: Printer, edge detector, measuring software QIM 1008-CPJ, etc.
* Select one of them as standard configuration

-----Package details-----

1. Silver bag inside
2. Wooden case with pallet outside
3. Total volume is arount 1-2CBM
4. Suitable for exporting, suitble for loading and unloading
Package details for reference:
