Specifications
Place of Origin :
Guangdong, China
Certification :
CE Complied
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Wooden case outside with pallet, in total 1-2CBM
Delivery Time :
5-7 working days
Payment Terms :
L/C, T/T, Western Union, , MoneyGram
Supply Ability :
500 sets/ month
Model Number :
CPJ-3000A / CPJ-3000AZ
Keyword :
Digital Profile Projector
Feature :
High Precision
Series :
CPJ-3000A/AZ
Used for :
machine manufacturing, electronics, mold, meter, etc.
Projection Screen Size :
∅312mm
Power supply :
AC 100-240V 50/60Hz
Description

High Precision Digital Profile Projector for Plastic Industry (CPJ-3000A / AZ Series)

PRODUCT BRIEF

CPJ-3000A/AZ series digital profile projector is an economic and reliable measuring instrument with premium quality.

Equipped with foot-switch and multi-functional data processing system, which is convenient to output data and sample, enabling the user to effectively and sufficiently inspect the measured objects.

This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc.

It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.


SPECIFICATIONS

Model Reverse
Erect		 CPJ-3015A
CPJ-3015AZ		 CPJ-3020A
CPJ-3020AZ		 CPJ-3025A
CPJ-3025AZ		 CPJ-3030A
CPJ-3030AZ		 CPJ-3040A
CPJ-3040AZ
X-axis Travel (mm) 150 200 250 295 400
Y-axis Travel (mm) 100 100 150 195 300
Metal table size (mm) 354×228 404×228 450×280 500×330 606×466
Glass table size (mm) 210×160 260×160 306×196 350×250 450×350
Resolution (μm) 0.5 0.5 0.5 0.5 0.5
Indication error (mm) E1XY=(2.5+L/100)
Z-axis Travel (mm) 100 (focusing) 100 (focusing) 100 (focusing) 100 (focusing) 100 (focusing)
Dimension (mm) 780×780×1100 810×780×1120 810×780×1120 900×780×1020 1040×780×1120
Projection screen Size (mm) ∅312
Rotary range 0~360°
Resolution 1' or 0.01°
Lens Information Magnification 10× (Optional) 20× (Optional) 50× (Optional) 100× (Optional)
Field of view (mm) ∅30 ∅15 ∅6 ∅3
Working distance (mm) 77.7 44.3 38.4 25.3
Max. measuring Height (mm) 90 90 90 90
Power supply: AC 100-240V 50/60Hz. Total power: 400W

We also provide other types,we'd like to provide best solution according to every customer's requirement.

FEATURES

1. High precision with foot switch and multifunctional data processing meter

2. Easy to operate

3. Resolution of linear scale: 0.5um

4. Powerful Digital Readout to support easy and accurate measurement

5. Reliable and cost-effective

6. Precise and accurate

7. Low maintenance cost

8. Optional Proprietary software

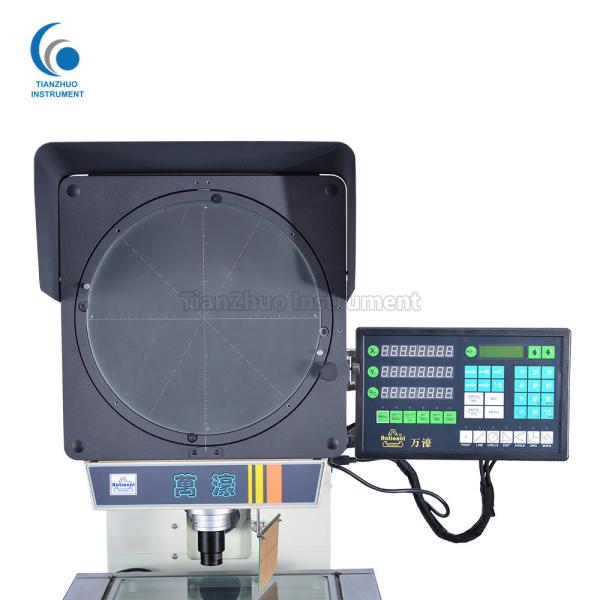

PRODUCT PHOTOS

Digital Optical Comparator Powerful Profile Projector With Data Processing System

Digital Optical Comparator Powerful Profile Projector With Data Processing System

Digital Optical Comparator Powerful Profile Projector With Data Processing System

Digital Optical Comparator Powerful Profile Projector With Data Processing System
