RS232 Port HDMI Video Extender 1920x1200 3Gbps Over Fiber Optic
RS232 Port HDMI Video Extender 1920x1200 3Gbps Over Fiber Optic
RS232 Port HDMI Video Extender 1920x1200 3Gbps Over Fiber Optic
RS232 Port HDMI Video Extender 1920x1200 3Gbps Over Fiber Optic
Specifications
Brand Name :
VINCAN
Model Number :
WL-HD201
Certification :
CE,FCC and RoHs
Place of Origin :
Mainland China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per week
Delivery Time :
2-3 days
Packaging Details :
Carton box and standard export package for HDMI Video Over Fiber Optic Extender
Resolution :
Full HD 1920*1200@60Hz
Support :
KVM
ESD protection circuit inside :
support
Power Supply Unit :
12V/1A
Ports :
RS232 port R(receive) T(transmit) G(ground)
Fiber band width :
3Gbps
Prodcut name :
HDMI Video Over Fiber Optic Extender
Description

Product Overview

HDMI Video Over Fiber Optic Extender adopts the uncompressed digital HD video and high-speed digital optical

fiber transmission technology advanced, It can transfer signal source(computer signal source,HDMI signal source

high digital DVD/DVR) to long distance terminal easily, with strong anti-interference performance, ensure the signal

completed and stable.

Main features

1.Full digital, Uncompressed HD optical fiber transmission.

2. Support Full HD 1920*1200@60Hz.

3. The attenuation of optical module SFP low to -3db.

4. 1 channel analog audio(3.5mm).

5. Support HDMI 1.3b Protocal.

6. Support KVM.

7. Automatic identification and configure display mode

8. Automatic equalization inside, stable and clear graphics.

9. ESD protection circuit inside, to ensure the ESD damage.

10.Easily to installation, plug and play, no need to set up.

11.HDMI Video Over Fiber Optic Extender

Specification:

Temperature -5°C to +75°C
Humidity 5 to 90 % RH (no condensation)
The signal of Input and output HDMI
Protocal HDMI1.3b,HDCP1.2
Pixel band width 165MHz
Video format Support 1920*1200 and all format below
The signa of Audio input and output 3.5MM Audio
Audio format 44.1K,48K,96K,176K,192K
RS232 port 3 ports industrial terminal
RS232 Baud rate Support 115200 and all below
RS 232 Data bits 8 bits
KVM receiver port A USB port
KVM transmitter port B USB port
Fiber port LC
Fiber module SFP single mode
Fiber wavelength 1550/1310nm
Fiber band width 3Gbps
The Maximum transmission distance of HDMI and Audio

10KM

20KM

40KM

60KM
Input voltage DC 12V,inside + outside -
Power consumption

HDMI receiver 4W

HDMI transmitter 4W
Device size 109.5*152*29.3mm(length*width*height)
Packing box size 328*273*90mm(length*width*height)
Weight 1500g
Product type HDMI Video Over Fiber Optic Extender

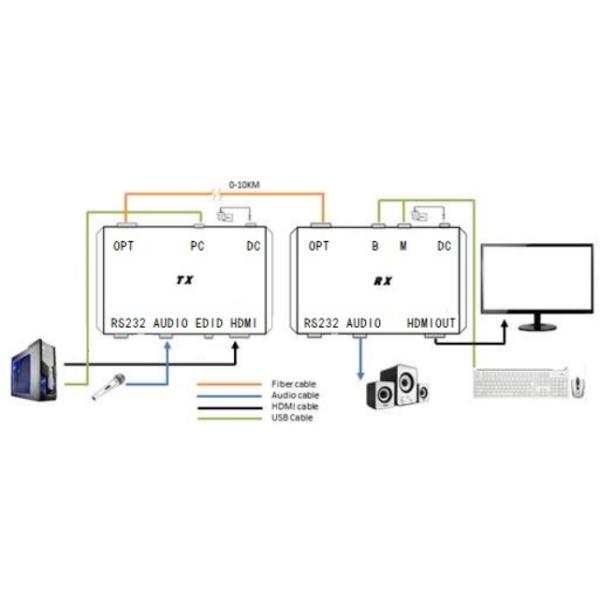

Application Graphics

RS232 Port HDMI Video Extender 1920x1200 3Gbps Over Fiber Optic

HDMI Video Over Fiber Optic Extender
