1.0 Introduction:

5.8GHz 3D Full HD 1080P HDMI H.265 50 meters Wireless WIFI Extender with a standard Ethernet TCP/IP protocol,

through wireless WIFI signal transmission HD audio and video signal, at the same time, The equipment has excellent

image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic

and efficient way of HDMI signal extension.

2.0 Features:

1. HDMI video and audio transmission via wireless WIFI, up to 50 meters;

2. HDMI 1.3 compatible;

3. In accordance with standard HDCP1.2 ,high-bandwidth digital content

protection technology;

4. HD video signal resolution up to 1920x1080@60Hz;

5. Special format is to compress and decompress video,effectively improve

the transfer efficiency,to ensure that the playback fluency;

6. Able to automatically identify and configure a variety of display mode;

7. Built-in automatic balance system, the picture is fluent, clear and stable;

8. The built-in ESD electrostatic protection circuit, comprehensive security

protection system;

9. Simple and convenient installation, plug and play, do not need to set up.

10.5.8GHz 3D Full HD 1080P HDMI H.265 50 meters Wireless WIFI Extender with TCP/IP protocol;

3.0 Packaging accessories:

1. HDMI transmitter------------------------------------------------1 PCS

2. HDMI receiver ---------------------------------------------------1 PCS

3.HDMI Cable -------------------------------------------------------2 PCS

4. USB Power Cable-----------------------------------------------2 PCS

5. User Manual------------------------------------------------------1 PCS

4.0 Technical parameters:

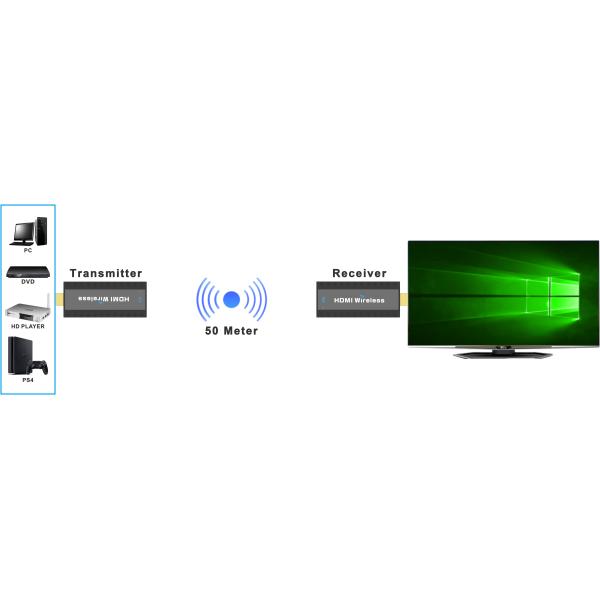

5.0 Connection diagram:

5.01 The HDMI source access HDMI extender sender;

5.02 Connect the HDMI extender the receiver to a display device (such as

high-definition TV, splicing screen, etc.);

5.03 Confirm the transmitter and the receiver is placed within the effective

distance Steer clear of obstructions;

5.04 To the sender and the receiver connected to the power, when the light is

normal lights up, normal operation of system.
