5x2 LCD Video Wall Controller USB HDMI VGA Video AV TV Processor

5x2 Video Wall Controller USB/HDMI/VGA/AV TV processor 10 TV shows a screen splicing For LED/LCD Display

1, Product introduction:

5x2 Video Wall Controller USB/HDMI/VGA/AV TV processor 10 TV shows a screen splicing For LED/LCD Display

is designed to be a truly in/out modular video wall processor, to capture, AD convert, route, distribute all-format signal to multiple video wall, including LCD TV,DID, DLP, Plasma, etc., while maintaining a true digital signal.

LM-TV10 2x5 Video Wall Controller with many different video interfaces, include HDMI, VGA, AV, and it is can decode video(like RMVB),audio(like MP3),Photo(like JPG) by itself through USB interface. each video with audio can be switched together. output HDMI interface, resolution is 1080P or 720P, choosed by user.

5x2 Video Wall Controller USB/HDMI/VGA/AV TV processor 10 TV shows a screen splicing For LED/LCD Display

Video Wall Controller can be controlled by remote, button and RS232.

2, Function Introduction:

1, Multi-screen model

User can increase or reduce output modules due to adopt modular design. And single machine can 25 maximum HDMI joint signal output with compatibility DVI protocol . It can realize unlimited joint through cascade connection; According to user demand , single machine can be customized various kinds of multi-screen patterns such as 2*2,3*3,1*2,2*3,3*2,2*4,4*2,2*5,5*2 ect.

2, Input signal

It can support 4 input signal in total consist of 1 composite video,1 VGA ,1 HDMI,1 USB; and HDMI and USB interface with audio and video decoding funtion,composite video and VGA signal add relevant audio interface .What's more ,all input video signal can switch to with audio output in synchronization .Following is the interface diagram:

3, Mirror function

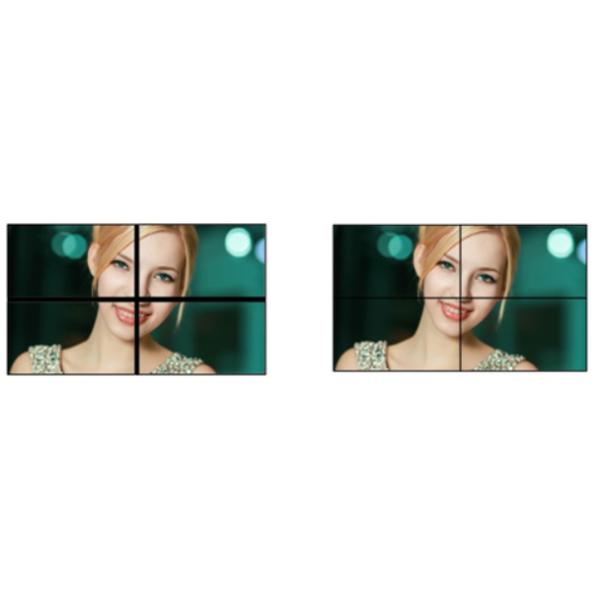

Compare with common multi-screen processor,it can realize 180°mirror overturn function toward each single display unit. It will be sharply decreasing the gap of LCD joint, which make image more vivid if LCD TV overturn 180°toward above row when user joint ordinary LCD TV.Following shown:

Before overturn After overturn

4, Edge blanking function

Without edge blank function,all joint display unit have frame gap,which make image pull rip up in vision and feeling unnatural;Image more natural and lively without transformation and draw after edge blank process.Following are comparison diagram;

Without edge blanking function After edge blanking process

5, USB transmit function

Product can support USB transmit and joint function.After finishing LCD joint basic function,user can set merely video or image joint pattern play.It's simple and useful,no need extra allocation a computer or other broadcast equipment,only we need to do is insert a U disk at USB interface in our product multi-sceen process.

• USB can support common video,image,MP3,TXT document;
• Can play select video or unselect
• All video can support play in order or cycle,pause,speed,program list

6, Key Function

*** Multiple splicing functions with 9 HDMI outputs (3×3, 2×4, 4×2)
*** Multiple video input signal with 1 HDMI, 1 DVI, 1 VGA, 1 USB
*** Support mirror function
*** Support edage mask function
*** Support RS232 and remote control

Case key press

7, Remote control function

Remote control is exclusive customization for ,multi-screen processor's each function is completely in conformity with remote keying and market can't buy it.Remote cotroller adopt super-sensitive design,so it's distance attainability 7 to 10 meters,and it can fulfill all functions of multi-screen processor,such as settings,switch,adjust.As the following picture shows:

8,System Topology
