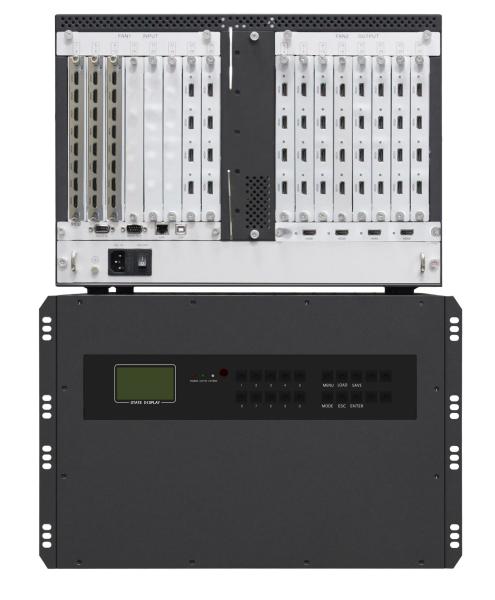

WL-HDVP series video wall controller with 1 U , 2 U, 3.5 U and 7 U casing

5 easy steps to select the right Winlink video wall controller (WL-HDVP) model for your video wall.

How to select the Winlink VWC (Video Wall Controller) model that is right for you?

The Winlink VWC controllers are modular designed with Chassis, Input Cards, Output Cards and other functional components,

which make it very easy to select the configuration.

Step I: Confirm the number of required Input/Output (I/O) ports.

Take for example a 2x4 video wall project. For this case, you would need 8x outputs. If, for example, connect to 8 PC signals and

4 DVD signals, the total number of inputs would be 12x. With this type of video wall project, you are able to confirm 8x output and

12x input signals. (Refer to below pic)

Step II: Confirm I/O signal interfaces.

As Winlink's Input and Output cards are based on a modular design, the user must specify which signal interfaces he requires so that the hardware chassis can be populated with the associated cards. In this project, the outputs have DVI interfaces and the inputs are HDMI and DVI interfaces. This means you would require multiple DVI output cards, HDMI and DVI input cards. Winlink will populate the chassis with the correlative I/O Cards according to the buyer's demand in factory before shipping.

4 channels HDMI input card

4 channels DVI input card

4 channels DVI output card

Step III: Confirm I/O card (or slots) quantities.

In this project which requires 8x DVI outputs, 8x HMDI inputs and 4x DVI inputs.

You would need 2x pcs 4-Channel HDMI Input Cards (4x input ports per card), 1x pcs 4-Channel

DVI input cards (4 input ports per card) and 2x pcs 4-Channel DVI Output Cards (4x output ports per card).

See below list:

I/O cards list

Step IV: Select your Winlink chassis.

The Winlink WL-HDVP have models including 1 U, 2 U , 3.5 U and 7U for the chassis. 1U -sized chassis

which supports 1 input slot and 1 output slot.2U-sized chassis which supports 2 input slots and 2 output slots.

3.5 U-sized chassis which supports 5 input slots and 6 output slots. 7U-sized chassis which supports 8 input slots

and 9 output slots.

Now you have your final list and are able to drop your order, then just wait to enjoy your unbox day!

For more details, please contact Winlink via www.video-wallcontroller.com or sales@winlinktech.com.
