4k*2k 60Hz 3x3 HDMI Video Wall Processor With HDMI 1 Input 9 Output
4k*2k 60Hz 3x3 HDMI Video Wall Processor With HDMI 1 Input 9 Output
4k*2k 60Hz 3x3 HDMI Video Wall Processor With HDMI 1 Input 9 Output
4k*2k 60Hz 3x3 HDMI Video Wall Processor With HDMI 1 Input 9 Output
Specifications
Brand Name :
VINCAN
Model Number :
WL-TW19K
Certification :
CE,FCC and RoHs
Place of Origin :
Mainland China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 pcs per week
Delivery Time :
2-3 days
Packaging Details :
Carton box and standard export package
HDMI Input Interface :
1x HDMI（HDMI 1.4）
HDMI output port :
9x HDMI
Resolution :
4k*2k 60Hz (YUV 4:2:0)
Rotation :
support
Cascade :
support
Warranty time :
2 years
Description

4k*2k 60Hz 3x3 HDMI Video Wall Processor With HDMI 1 Input 9 Output

3X3 4K HDMI video wall processor with 1 input and 9 output

1. Overview

There is a "mode" setting button on the front of the splicer to set the splicing mode of the screen. Press the "mode" button,

you can cycle through 2X2,1X2,1X1 and other splicing display modes. Pre installed remote control interface,

you can purchase remote control to set splicing mode.

2. Specification

HDMI Input
Interface HDMI(HDMI 1.4)
Resolution Up to 3840X2160@30Hz
Color 24bit,16.77M
Output
HDMI Interface HDMI(HDMI 1.4)
Splicing output resolution Up to 3840x2160 / 30Hz (4K interpolation effect)
Color 24bit,16.77M
Audio output 3.5mm stereo socket
Other
control mode Mode selection button, COM port command control splicing mode, remote control splicing control (optional)
Power Supply DC12V 2A power adapter
Specifications
4-Channel model Size 310mm x 104mm x 28mm
Weight 1.37kg (Including accessories)
6-Channel model Size 360mm x 102.7mm x 47mm
Weight 1.95kg(Including accessories)
8-Channel model Size 360mm x 102.7mm x 47mm
Weight 1.96kg(Including accessories)
10-Channel model Size 360mm x 102.7mm x 47mm
Weight 2.10kg(Including accessories)
12-Channel model Size 360mm x 102.7mm x 47mm
Weight 2.11kg(Including accessories)

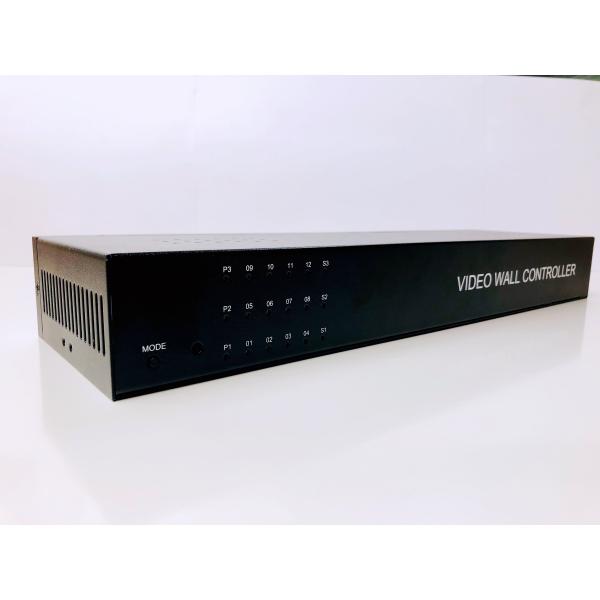

3. Products' picture:

4k*2k 60Hz 3x3 HDMI Video Wall Processor With HDMI 1 Input 9 Output

4k*2k 60Hz 3x3 HDMI Video Wall Processor With HDMI 1 Input 9 Output
