1HDMI 1 VGA 2 BNC Input 2 DVI Output LED Wall Processor With 1U Casing
1HDMI 1 VGA 2 BNC Input 2 DVI Output LED Wall Processor With 1U Casing
1HDMI 1 VGA 2 BNC Input 2 DVI Output LED Wall Processor With 1U Casing
1HDMI 1 VGA 2 BNC Input 2 DVI Output LED Wall Processor With 1U Casing
Specifications
Brand Name :
VINCAN
Model Number :
WL-U1
Certification :
CE,FCC and RoHs
Place of Origin :
Mainland China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 pcs per week
Delivery Time :
2-3 days
Packaging Details :
Carton box and standard export package
Software control :
RS232/USB
Weight(Kg) :
3.5
Work environment :
Temperature:0-40℃；humidity:0-95%
Dimension(mm) :
66(H)×432(L)×225(W)
Input power :
100-240VAC，47-63Hz，≤2A
Warranty period :
1 year
Description

1HDMI 1 VGA 2 BNC Input 2 DVI Output LED Wall Processor With 1U Casing

WL-U1 1xDVI ,1XHDMI,1XVGA,2XBNC input 2xDVI output LED wall processor with 1U casing

Product description:

Humanized panel design

With color panel and two-way regulation knob, U1 brings great convenience to users by its friendly user interface.

Multiple HD/SD signal inputs:

U1 supports 5-channel HD/SD signal, including

DVI*1,VGA*1,HDMI*1,CVBS*2.

What’s more,KS600 has 2pcs sending card built-in ability.

The drawer type design is convenient for users to install cards.

Product features:

  • 1. HD multi-format signal input
  • 2. Fade in/out switch between arbitrary signals
  • 3. 1920*1200 HD output
  • 4. 2pcs LED sending cards built-in ability
  • 5. Support PC software control
  • 6. Offline scheduled task

Specifications:

Video Input
Type No. Description
DVI-D(24+1) 1

· Max resolution supported is 1920*1200@60Hz ,downward compatibility.

· Compatible with HDMI1.3 and lower version, EDID version 1.3
HDMI(TYPE A) 1

· Max resolution supported is 1920*1200@60Hz, downward compatibility

· Compatible with HDMI1.3 and lower version, EDID version 1.3
VGA (HD-15) 1

· Max resolution supported is 1920*1200@60Hz ,downward compatibility.

· EDID version 1.3

. Signal level:R,G,B,Hsync,Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75Ω；black level:300mV Sync-tip:0V
CVBS(BNC) 2

· NTSC/PAL adaptive

Signal level :1Vpp±3db (0.7V Video+0.3v Sync ) 75Ω
Video output
Type No. Description
DVI-D(24+1) 2

· Max resolution supported is 1920*1300@60Hz,downward is compatible

· Compatible with HDMI1.3 and lower version,EDID version 1.3

. User-defined resolution supported, such as 1536*1536@60Hz,1200*1800@60Hz
Control interface
Type No Description
RS232(RJ 11) 1 Baud rate 9600, RJ 11 to RS232 cable provided.
Features
Fade in/fade out Every channel supports fade in/out switch.
Humanized interface U1 has color LCD panel, numerical buttons and adjustment knob and supports wizard setting.
Scheduled task Make timing operation to complete automatic management via KYSTR software
Others
Software control RS232/USB Dimension(mm) 66(H)×432(L)×225(W)
Weight(Kg) 3.5 Input power 100-240VAC,47-63Hz,≤2A
Work environment Temperature:0-40℃；humidity:0-95% Warranty period 1 year

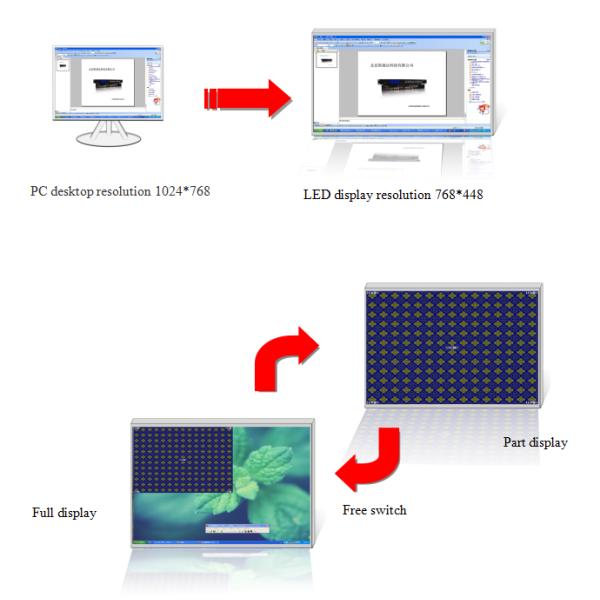

Free zoom in/out display:

1HDMI 1 VGA 2 BNC Input 2 DVI Output LED Wall Processor With 1U Casing
