DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control
DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control
Specifications
Brand Name :
VINCAN
Model Number :
WLP0812D
Certification :
CE,FCC and RoHs
Place of Origin :
Mainland China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per week
Delivery Time :
2-3 days
Packaging Details :
Carton box and standard export package for DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control
Frequency Response :
20 Hz-20 kHz, +0/-0.5 dB
Dynamic Range :
116 dB A Weighting
Channel Separation :
< -100 dB
Distortion (THD) :
0.003%, 1kHz at 0 dBu
Input Metering :
-24 dB,-12 dB,-6 dB, 0 dB +6 dB,+12 dB,+24 dB
Product name :
DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control
Description

Description:

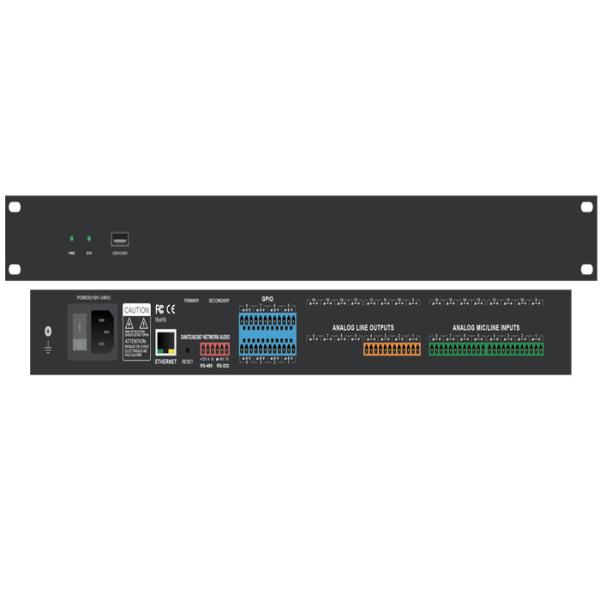

The DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control is a loudspeaker system management processor which uses digital signal processing in order to accomplish the functions of crossover, equalizer, limiter, and delay unit. Designed for applications such as zoning and permanent installations, PA systems and stage monitor set ups, the DSP-226 features two balanced analogue inputs, six balanced outputs using XLR connectors, RS485 in/out and USB socket on the front panel.

Specification :

Item
 Specifications
Max Input Level 18dBu
Max Output Level 18dBu
Default Output Level 0dBu
THD+N <0.003%；1kHz@+4dBu
<0.0035%；1kHz@+10dBm
<0.0035%；20Hz～20kHz@+4dBu
Frequency Response 20Hz-20kHz, +/-0.2dB
In To Out dynamic range 110dB (Unrecorded right)
S/N -110dB (Unrecorded right)
ADC Dynamic Range CS5361 114dB
DAC Dynamic Range CS4382A 114dB
DSP 400Mhzfloating - point SHARC ADSP-21488
Sampling Frequency 48K
QE 24Bit
Storage 32
Control Mode 100M Ethernet
Language English
Noise Gate Yes
Feedback Yes
Signal Generator Yes
Pressure Limiter Independent 12 channel
Delay Output 1-4 218ms
Output 5-8 148ms
PEQ
Low Shelf
High Shelf		 Independent 16-band
High Pass/Low Pass
Bessel
Butterworth
Link-Riley		 Independent 12 channel
-6dB/oct
-12dB/oct
-18dB/oct
-24dB/oct
-36dB/oct
-48dB/oct
Product name DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control

Typical System Application:
DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control

Dante Application: Dante network breaks through space limitations, and has a wide range of application scenarios.

It can connect all devices that support Dante protocol to the same local area network. By cascading 2 DSPs,

it supports the access of up to 32 analog microphones and 32 Dante microphones. Each processor will

conduct first-level auto mixing on its own microphones, and the second-level auto mixing is then made

on the mixed signal via the auto mixer of main processor so that more microphones can be connected

to build a larger auto mixing matrix. The two-level auto mixing working mode can satisfy general application scenarios.

DAS DSP Audio Loudspeaker Audio Processor With Dante Volume Control.
