4x4 HDMI Matrix Switch

I. Introduction

This is a high performance HDMI Matrix with four HDMI inputs & four outputs. It allows any source (Blue-Ray player, HD DVD player,

satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously, and supports 4K×2K, 3D, Deep Color.

With its 2 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution.

II. Features

1. Supports display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz 2. 3D HDMI 1.4a video format

support. 3. 3D video support including Frame Packing for all 3D formats up to a 297MHz TMDS clock. 4. Supports deep

color up to 48-bit per pixel. 5. HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT). 6. Supports

reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR. 7. Full colorimetry including sYCC601, Adobe RGB, Adobe YCC601, xvYCC

extended gamut color. 3 8. Operates for TMDS clock frequencies up to 300MHz.

III. Package

HDMI Matrix --------------------------------------------------------- 1PC

Power Adapter -------------------------------------------------------- 1PC

Operation Manual ---------------------------------------------------- 1PC

Remote Control---------------------------------------------------------1PC

RS232 Serial Cable----------------------------------------------------1PC

IV. Specifications

1. Frequency Bandwidth : 297MHZ[10.2Gbps]

2. Input Ports : 4 x HDMI Female input ports

3. Output Ports : 4 x HDMI Female output ports

4. Power Supply : DC 12V, 2.5A

5. ESD Protection Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)

6. Dimensions (mm) : 1 15(W) X 270 (D) X 45 (H)

7. Weight : (g) 900

8. Operating Temperature : 0°C ~ 40°C / 32°F ~ 104°F

9. Storage Temperature : -20°C ~ 60°C / -4°F ~ 140°F

10. Relative Humidity : 20 ~ 90% RH (Non-condensing)

11. Power Consumption : (Max) 20W

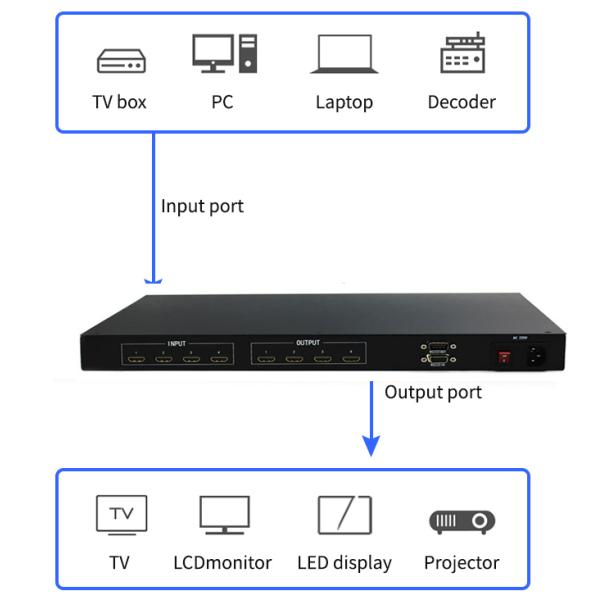

Ⅴ: Using Application Areas :
