4K Ultra HD HDMI HDBaseT Extender Video Transmitter Receiver with 6 ports
4K Ultra HD HDMI HDBaseT Extender Video Transmitter Receiver with 6 ports
Specifications
Brand Name :
VINCAN
Certification :
CE,FCC and RoHs
Place of Origin :
Mainland China
Payment Terms :
T/T, Western Union, MoneyGram
Model Number :
WL-HDBT-70
MOQ :
1 pairs
Price :
Negotiable
Supply Ability :
1000 pairs per week
Delivery Time :
2-3 days
Packaging Details :
Carton box and standard export package for 70 meter ( 228ft ) HDBaseT HDMI 2.0 Extender Set over Cat6
Video Bandwidth :
18Gbps
RS 232 :
support
HDMI resolution :
1080P/1080i/720P/576P
power Supply :
220V,support POC
L/R Audio Formats :
PCM 2.0
HDCP Compliance :
HDCP2.2
Compatibility :
HDMI 2.0,
Video Resolution :
4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4
Description

Product Description:

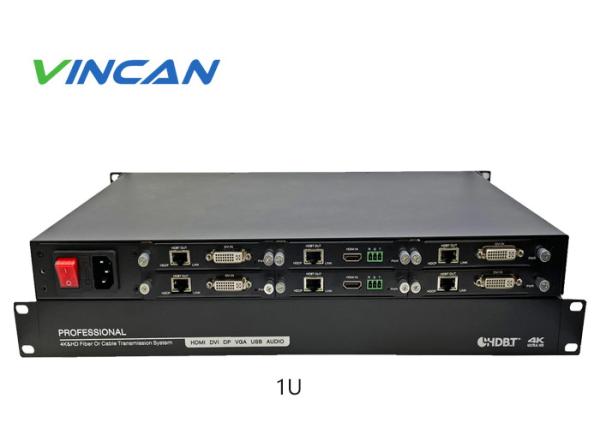

The rack-mounted HDBaseT extender is a device designed for professional audio and video systems. It uses HDBaseT technology to extend the HDMI signal through a standard network cable (Cat5e/6/7) to a maximum of 100 meters, supporting 4K@60Hz HDR lossless image quality, multi-channel audio and control signal transmission. It adopts a standard 19-inch rack installation design (1U/2U height) and can be equipped with 6 70-meter or 100-meter transmission boards. It is suitable for integration in scenes such as computer rooms and control centers, and is convenient for centralized management and expansion.

Features:

☆ HDCP 2.2 / 1.x and DVI 1.0 compliant

☆ Support 18Gbps video bandwidth

☆ Video resolution is up to 4k2k@60Hz YUV 4:4:4 High bit rate audio transmission via HDMI

☆ The maximum transmission distance is 328ft / 100 meters via a single CAT6/6a cable

☆ Support PoC (Power over Cable) function

☆ Support ARC (Audio Return Channel) function

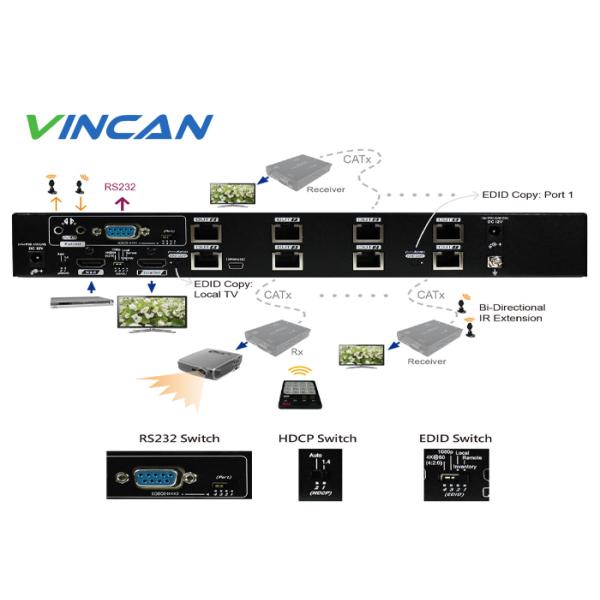

☆ Support bi-directional IR, RS-232 and LAN signal pass-through transmission

☆ HDR, HDR10+, Dolby Vision and HLG function supported

☆ Compact design for easy and flexible installation.

Technical Parameters:

HDCP version HDCP2.2
Compatibility HDMI 2.0
Video Interface HDMI
Power adapter format Input AC (50Hz.60Hz) 100-240V
Video Resolution 4K@60Hz
HDMI resolution 1080P/1080i/720P/576P
Transmission distance 4K@60Hz:70m,1080P@60Hz:100m
Power Supply DC 12V 2A

Applications:

The Winlink WL-HB06-1U HDMI HDBaseT Extender is a versatile and reliable solution for extending HDMI signals over long distances. With its HDBaseT technology, this extender can transmit high-quality audio and video signals up to 4K@60Hz resolution with HDCP2.2 compliance.

Designed as a wallplate HDBaseT transmitter, the WL-HB01S is perfect for various product application occasions and scenarios:

1. Home Entertainment Systems

2. Conference Rooms

3. Retail Displays

4. Education Environments

5. Event Venues
