HDMI TV Video Wall Controller 4x4 4k With 4 Input 16 Output
HDMI TV Video Wall Controller 4x4 4k With 4 Input 16 Output
HDMI TV Video Wall Controller 4x4 4k With 4 Input 16 Output
HDMI TV Video Wall Controller 4x4 4k With 4 Input 16 Output
Specifications
Brand Name :
VINCAN
Model Number :
WL-TW416P
Certification :
CE ,FCC , RoHs
Place of Origin :
Mainland, China
MOQ :
1 set
Price :
100-250.00USD/set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets one week
Delivery Time :
2-3 days
Packaging Details :
Carton box and standard export package for HDMI TV Video Wall Controller 4x4 4k With 4 Input 16 Output
Band Width :
594MHz (18Gbps), HDMI 2.0, HDCP2,2
Audio Format :
LPCM 2.0
Input ports :
4 HDMI
Output ports :
16 HDMI, 1 Mini Toslink port
Power Supply :
110-240VAC
Baud Rate: :
9600
Product name :
HDMI TV Video Wall Controller 4x4 4k With 4 Input 16 Output
Description

HDMI TV Video Wall Controller 4x4 4k With 4 Input 16 Output

Introduction

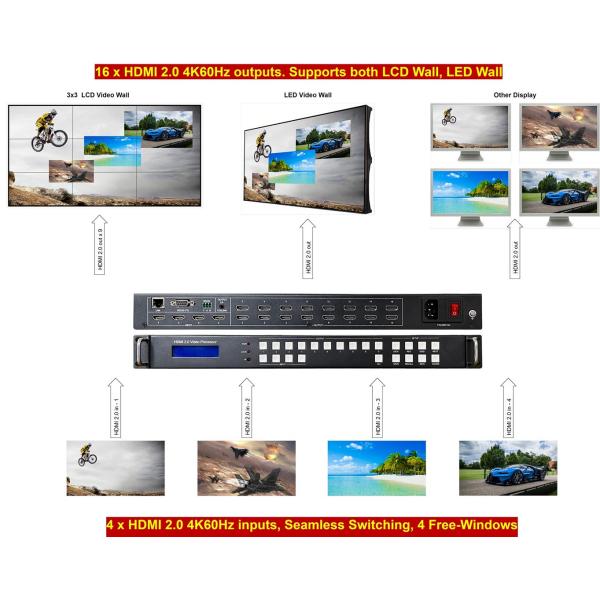

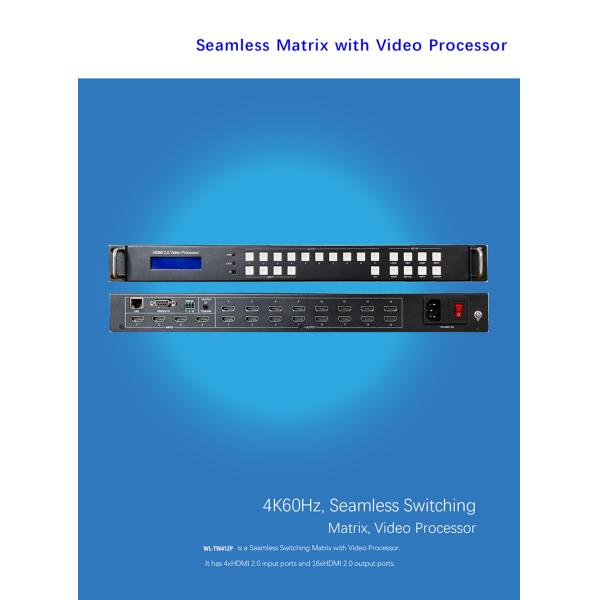

The Video Processor is a high-performance HDMI 2.0 video signal processor.

It can be used as a video wall splicing processor or as a seamless switching matrix switcher with4 inputs and 16 outputs.

All standalone output display or video wall display can work in multiview mode with a maximum of 4 windows.

Features

1) Support seamless switching between different input source;

2) Comprehensive splicing display function, free multiview up to 4 window;

3) Support two synchronization mode for all output ports: General synchronization mode and Sync delay mode;

4) Supports 180° rotation function;

5) 4 Inputs and 16 Outputs:HDMI 2.0, up to 3840x2160/4096x2160@60Hz resolution;;

6) Support Auto and User Define output resolution, can be flexibly applied to the display of LED wall;

7) Support one break away audio extractor and switcher;

8) Provide multiple control ports: front panel buttons, remote control, RS232, network and WebGui control;

9)HDMI TV Video Wall Controller 4x4 4k With 4 Input 16 Output ;

HDMI TV Video Wall Controller 4x4 4k With 4 Input 16 Output

HDMI TV Video Wall Controller 4x4 4k With 4 Input 16 Output
