High Definition SMD1010 LED Advertising Screen with 140 degree Viewing Angle
High Definition SMD1010 LED Advertising Screen with 140 degree Viewing Angle
Specifications
Brand Name :
EFF
Model Number :
eff/
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1m2
Price :
according to the specific requirement
Payment Terms :
T/T, Western Union
Supply Ability :
1000m2/month
Delivery Time :
15-20 days
Packaging Details :
wooden cases/ flight cases
PIXEL PITCH :
JB/P2MM
LEDs :
SMD1010
Brightness :
1000Nits
Refresh rate :
2880Hz
Cabinet :
Iron/Aluminum
Maintaining :
Front
Control :
Synchronous
Color :
R G B
Description

2.0mm Indoor Led Screen High Definition LED Display With Wide Viewing Angle SMD1010/HD LED TV/ Aluminum Die casting

Specifications:

Product Series P2
Pixel Pitch 2mm
Pixel Package SMD1010
LED Configuration 1R1G1B
Pixel Density 250000 Pixels/㎡
Module Size 128mm x128mm
Module Resolution 64 x 64dots
Suggested Cabinet Size 512mm x512mm
Cabinet Resolution 256 x 256dots
Cabinet Material Aluminum
Cabinet Weight ＜30kg/m2
Brightness 1000 nits
Color Temperature 3000-12000K
Viewing Angle H-140°/ V-140°
Driving Mode 1/32 scan
Refresh Rate 960-2880Hz
Frame Frenquency 60Hz
Grey Level 4096-16384
Number of Color 1 billion
Input Maximum Power 700 W/㎡
Input Voltage AC220±10%, AC110 ±10%
Input Frequency 50-60Hz
External Interface S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc
IP Rating IP21

Trade Terms:

1). Payment: T/T ,ususally 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity
2). Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days
3). Sample can be deliveried within 3days
4). Shipping port: Shenzhen, Mainland China
5). Discounts are offered based on order quantities

Features:

1. seamless assembling

2. definition visual effect

3. Fan-free design, energy saving, more stable,

4. 140〫 wide view angle,

5. Approved by RoHS certification, Lead-free, enviromental design

6. Both above and below use stainless steel hasp

7. Ergonomic handle design, convenient handling

8. International standards air plug on Power connectors, easy, fast and safe.

9. Receiving card to card with LAN cable, simple, less failure rate

10. Diversification assembling

Competitive Advantages:

1. 24/7 Online support service.

2. Free onsite maintenance / Year.

3. Solution design.

4. Free online training any time.

5. High quality raw material used like neutrik flight connector, MBI IC etc.

Applications:

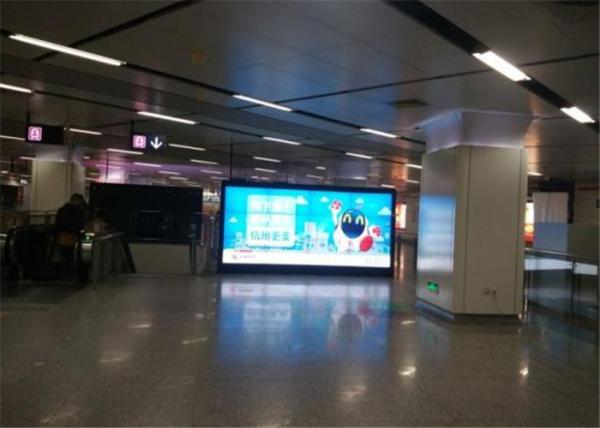

Live shows, rental events, TV studios, exhibitions,stage background, department stores, banks, etc.

Service & Support:

1.We guarantee all our display, modules, spare parts (Silan Chip) for 2 years.


2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.

3.After warranty , we also can offer you the parts for replacement at our bottom price.


4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.


5.We also could solve problems for you until it recovers well by remote control!

Installation:


1. We can assist the training and technical support for the customer in the factory, if the customer requires so.
2. We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.
3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
