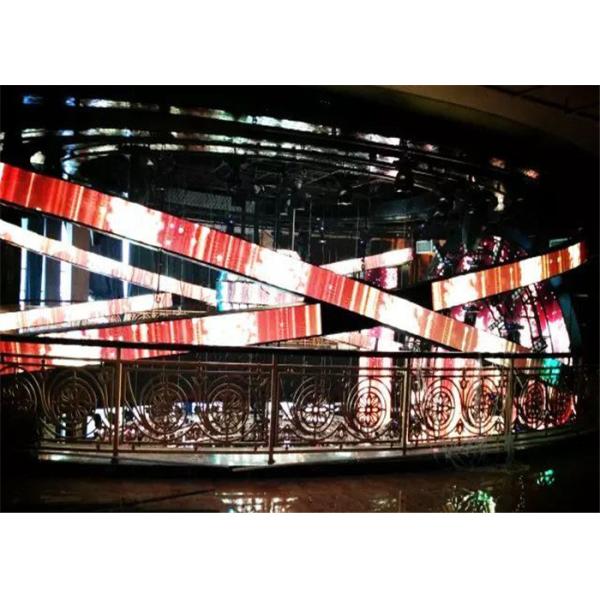

Customized P2 P3 Circle SMD LED Display System Indoor Full Color Led Screen
Customized P2 P3 Circle SMD LED Display System Indoor Full Color Led Screen
Specifications
Brand Name :
EFF
Model Number :
eff/
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
according to differnt style
Supply Ability :
according to diffeent products
Delivery Time :
15-35 workding days after recieved payment
Packaging Details :
plywood export packing
module resolution :
192*192
Brightness :
7500cd/m2
module size :
250*250
driving mode :
1/32 scan
meterial :
Alluminum
maintanance type :
front
Description


Customize P2 P3 Circle Frame Led Display System Input Different Course


<

Module Parameters
Pixel Pitch 3mm
Dimensions (w x h) mm 96 x 192
Resolution (w x h) 32 x 64
Pixel Configration SMD2121
Application Indoor fixed Installation
Driving Mode 1/16 scan
Pixel Density(dots/module) 2048
Module Parameters
Pixel Pitch 2.5mm
Dimensions (w x h) mm 160 x 160
Resolution (w x h) 64 x 64
Pixel Configration SMD2121
Application Indoor Rental Installation
Driving Mode 1/32 scan
Pixel Density(dots/module) 4096
Panel Parameters (P3)
Dimensions (w x h x d) (mm) 768x576
Physical Resolution (w x h) (dots) 256x192
Physical Pixels (total) (dots / panel) 61440
Module Quantity (pcs) 8x3
Material Aluminum
Maintenance Type Front
Back Door (Yes / No) NO
Weight/Panel (kgs) 25
Panel Parameters (P2.5)
Dimensions (w x h x d) (mm)
Physical Resolution (w x h) (dots)
Physical Pixels (total) (dots / panel)
Module Quantity (pcs)
Material
Maintenance Type Front
Back Door (Yes / No) NO
Weight/Panel (kgs) 25KG/M2
Display Parameters
Pixel Density P3 111111 dots/m2 P2.5 160000 dots/m2 Ave. Power Consumption 200 W/㎡
Brightness ≥1200 cd/㎡ Max. Power Consumption 500 W/㎡
Refresh Rate >2880 Hz Input Voltage 110～240 Volt
Frame Frequency 60 Hz Input Frequency 50/60 Hz
Gray Scale 16384 level Blind Spot Rate ＜1/10000
Brightness Control 256 level Ingress Protection IP40
Viewing Angle 140°/140° Operating Humidity 10％～90％
Viewing Distance ≥2 meters Operating Temperature ﹣20～﹢60 ℃
Operating System Windows (2000/XP/Vista/7)
Signal Input Format AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Control Distance CAT5 cable:＜100 m; Single mode fiber:＜10 km
Lifespan 100000 Hours at 50% Brightness
