P2.5mm High Resolution Indoor LED Video Wall Pixel Pitch 2.5MM , aluminum super slim cabinet
P2.5mm High Resolution Indoor LED Video Wall Pixel Pitch 2.5MM , aluminum super slim cabinet
Specifications
Brand Name :
EFF
Model Number :
eff/
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1m2
Price :
according to different style
Payment Terms :
T/T, Western Union
Supply Ability :
1000M2 PER MONTH
Delivery Time :
ACCPRDING TO QUANTITY
Packaging Details :
plywood export packing
Led package :
SMD2121
Pixel :
2.5mm
Pixel Density (dots/m2) :
160000dots/㎡
Max Power :
≤500W/㎡
Frame-changing Frequency :
≥60Hz
Description

P2.5MM Indoor RGB LED Display for Rental Application, Super Slim Aluminum Cabinet with Fast Lock ,

Specifications:

Product Series P2.5
Pixel Pitch 2.5mm
Pixel Package SMD2121
LED Configuration 1R1G1B
Pixel Density 160000 Pixels/㎡
Module Size 160mm x160mm
Module Resolution 64 x 64dots
Suggested Cabinet Size 480mm x 480mm
Cabinet Resolution 192x 192dots
Cabinet Material Aluminum
Cabinet Weight ＜12kg/PC
Brightness 1500 nits
Color Temperature 3000-12000K
Viewing Angle H-140°/ V-140°
Driving Mode 1/16
Refresh Rate 960-2880Hz
Frame Frenquency 60Hz
Grey Level 4096-16384
Number of Color 1 billion
Input Maximum Power 700 W/㎡
Input Voltage AC220±10%, AC110 ±10%
Input Frequency 50-60Hz
External Interface S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc
IP Rating IP21

Features:

1. seamless assembling

2. definition visual effect

3. Fan-free design, energy saving, more stable,

4. 140〫 wide view angle,

5. Approved by RoHS certification, Lead-free, enviromental design

6. Both above and below use stainless steel hasp

7. Ergonomic handle design, convenient handling

8. International standards air plug on Power connectors, easy, fast and safe.

9. Receiving card to card with LAN cable, simple, less failure rate

10. Diversification assembling

Competitive Advantages:

1. 24/7 Online support service.

2. Free onsite maintenance / Year.

3. Solution design.

4. Free online training any time.

5. High quality raw material used like neutrik flight connector, MBI IC etc.

Applications:

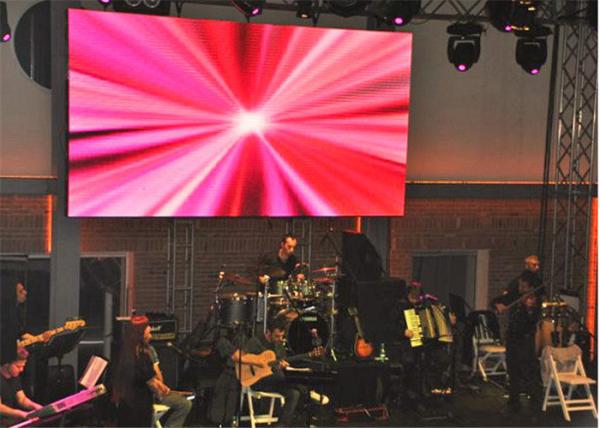

Live shows, rental events, TV studios, exhibitions,stage background, department stores, banks, etc.

Service & Support:

Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.

Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.

Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

P2.5mm High Resolution Indoor LED Video Wall Pixel Pitch 2.5MM , aluminum super slim cabinet
