HD BIG Screen Outdoor LED Video Wall P6 / P10 With Fanless Power Supply
HD BIG Screen Outdoor LED Video Wall P6 / P10 With Fanless Power Supply
Specifications
Brand Name :
EFF
Model Number :
eff/
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
according to differnt style
Supply Ability :
according to diffeent products
Delivery Time :
15-35 workding days after recieved payment
Packaging Details :
plywood export packing
control system :
linsn/nowa
light :
10mm
style :
SMD
using place :
Outdoor
LED Chip :
Epistar
Power Supply :
Meanwell
Description

HD BIG Screen Full Color P10 LED Video Wall/LED Screen Outdoor/LED Display Outdoor

Dispriptions:

Super high-resolution is one of the most apparent features for the new generation of LED display,

therefore the showing of information is much smoother and clearer than before. Also, it works in the

environment of no air-conditional because of low power consumption. What's more, convenient mounting

and simple disassembling can help customers save much expense in the labor and time. In general,

these changes of the LED display offer user more comfortable and wonderful viewing experience, can be

used in so many fields and occasions , such as hotel advertizing ,stage renting ,television ,shopping malls

,big markets, outdoor stadiums, concerts , fairground ,sightseeing districts, Outdoor advertising media,

enterprise engineering, cultural tourism, image promotion, commercial real estate, etc....

Cabinet discriptions:

1) Super slim,super light,easy to carry,to transport.


Cabinet size:480mm*480mm*50mm(P3,P4,P5)


576mm*576mm*50mm(P6)

Cabinet weight:8kg/10kg

2) Die-casting Aluminum: very stable, no deformation.

3) Flatness: forming mold in one time, accurate to 0.2mm.

4) No noise: with fanless power supply, it's completely quiet.

5) Fast installation: only one man can install 50 cabinets by hand within an hour

Data Sheet:

Item outdoor full color led display
Model Number p10
Pixel Pitch 10mm
Pixel Density(dots/m²) 10000
Pixel Configuration RGB
LED Type DIP346
Module size(mm) 160*160
Module Resolution(dots) 16*16
Min.Viewing Distance(m) ≥10
Brightness(cd/m²) ≥7000
Viewing Angle(degree) ≤120°
Average Power Consumption(w/m²) 300-750
Scan Mode 1/4
Protection Level IP65
Cabinet Size(mm) 960*960
Color Temperature The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements
Input Voltage AC220 V/50HZ or AC 110V/60HZ
Refresh Rate LED screen refresh frame frequency recommended is no less than 1200HZ(recommended)
Color 64g color(on the condition of 4096 gray scale)
Horizontal/Vertical viewing angle <120°
Gray Scale Recommended 14BIT
Effective Communication Distance(without relay) Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.

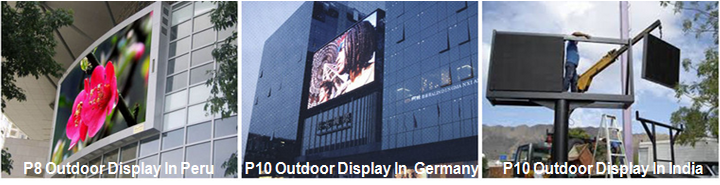

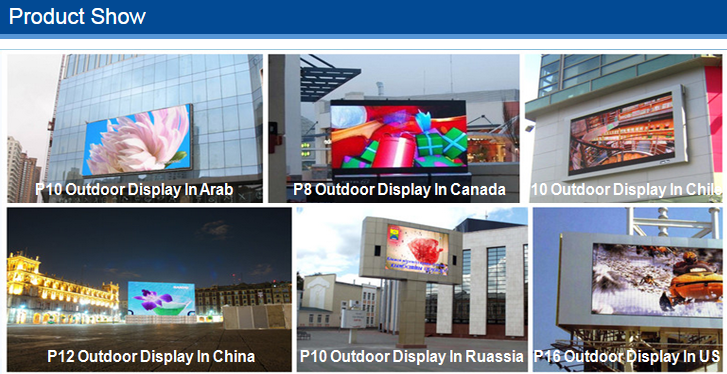

Samples:

HD BIG Screen Outdoor LED Video Wall P6 / P10 With Fanless Power Supply

HD BIG Screen Outdoor LED Video Wall P6 / P10 With Fanless Power Supply
