Super Light Portable Indoor P4 LED Screen RGB Aluminum Cabinet For Rental
Super Light Portable Indoor P4 LED Screen RGB Aluminum Cabinet For Rental
Super Light Portable Indoor P4 LED Screen RGB Aluminum Cabinet For Rental
Super Light Portable Indoor P4 LED Screen RGB Aluminum Cabinet For Rental
Specifications
Brand Name :
EFF
Model Number :
eff/
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
according to differnt style
Supply Ability :
according to diffeent products
Delivery Time :
15-35 workding days after recieved payment
Packaging Details :
plywood export packing
control system :
linsn/nowa
cabinet :
die-casting
style :
SMD
Color :
RGB
LED Chip :
Epistar
Power Supply :
Meanwell
Description

Super Light Aluminum Cabinet Portable HD RGB Color P4 led video screen For Rental

Dispriptions:

Super high-resolution is one of the most apparent features for the new generation of LED display,

therefore the showing of information is much smoother and clearer than before. Also, it works in the

environment of no air-conditional because of low power consumption. What's more, convenient mounting

and simple disassembling can help customers save much expense in the labor and time. In general,

these changes of the LED display offer user more comfortable and wonderful viewing experience, can be

used in so many fields and occasions , such as hotel advertizing ,stage renting ,television ,shopping malls

,big markets, outdoor stadiums, concerts , fairground ,sightseeing districts, Outdoor advertising media,

enterprise engineering, cultural tourism, image promotion, commercial real estate, etc....

Cabinet discriptions:

1) Super slim,super light,easy to carry,to transport.


Cabinet size:480mm*480mm*50mm(P3,P4,P5)


576mm*576mm*50mm(P6)

Cabinet weight:8kg/10kg

2) Die-casting Aluminum: very stable, no deformation.

3) Flatness: forming mold in one time, accurate to 0.2mm.

4) No noise: with fanless power supply, it's completely quiet.

5) Fast installation: only one man can install 50 cabinets by hand within an hour

Data Sheet:

Model: P4
Pixel pitch 4mm Module size 192×96mm
Pixel configuration 1R1G1B Module resolution 64×32dots
View angle 140°/140° Pixel density 111,111dots/m²
LED encapsulation SMD2121 Refresh rates >1080Hz
Driving Method 1/16scan, constant current Max power consumption 1562w/m²
Brightness 1100-1300nits (cd/m²) Average power consumption 625w/m²
Working voltage AC110/220V Working temp -20°C to +60°C
Best viewing distance >1M Working humidity 10%~90%
LED parameters R:625nm±5.0nm IV:400-500mcd MTBF >5,000 hours
G:525nm±2.5nm IV:1,800-2,200mcd Gray level RGB/8192/14bit
B:470nm±2.5nm IV:350-450mcd Lifespan >100,000 hours

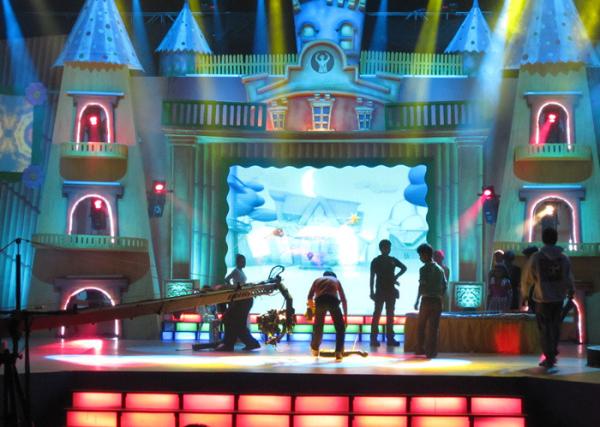

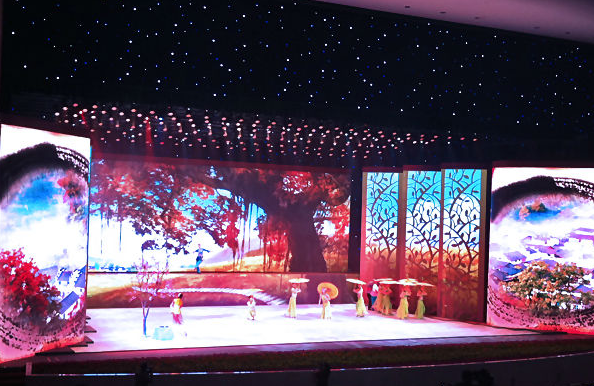

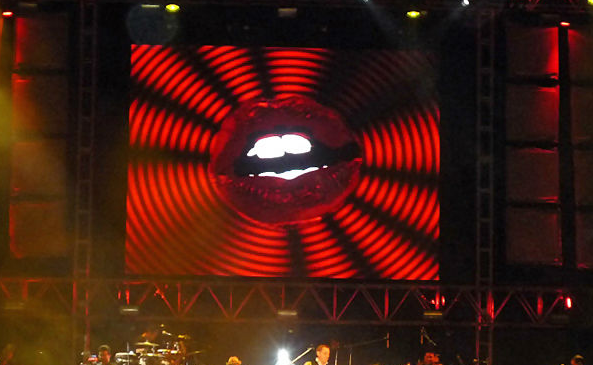

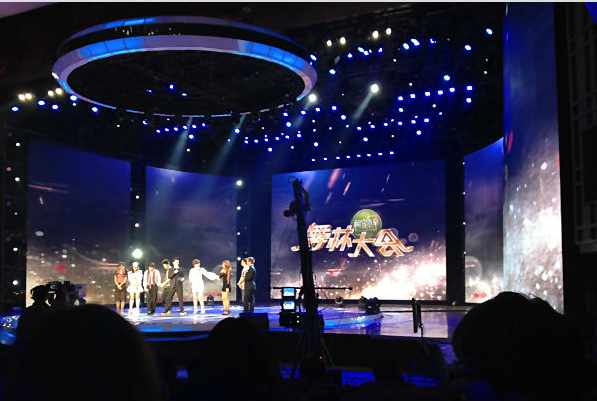

Samples:

Super Light Portable Indoor P4 LED Screen RGB Aluminum Cabinet For Rental

Super Light Portable Indoor P4 LED Screen RGB Aluminum Cabinet For Rental

Super Light Portable Indoor P4 LED Screen RGB Aluminum Cabinet For Rental
