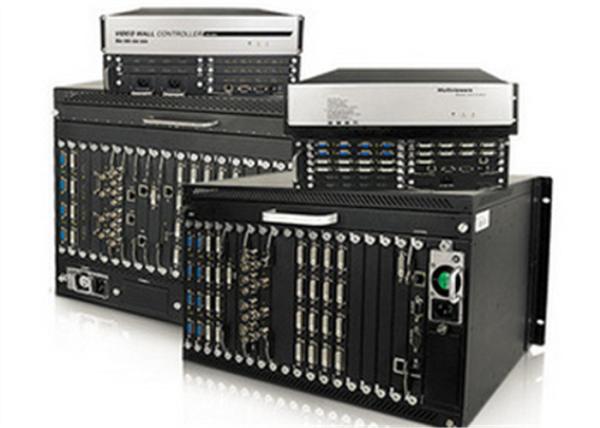

P10mm RGB SMD Outdoor HDMI Video Wall Controller Full Color Chip
P10mm RGB SMD Outdoor HDMI Video Wall Controller Full Color Chip
Specifications
Brand Name :
EFF
Model Number :
eff/
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
according to different style
Payment Terms :
T/T, Western Union
Delivery Time :
7-15 working days
Packaging Details :
plywood export packing
INPUT :
HDMI
chip :
full color chip
SIGNAL INPUT :
4X
Display :
Video
name :
controller
Description

Ph10mm Rgb Smd Outdoor Video Wall Led Display Controller

4K Multiviewer accepts both computer and broadcast signals - 4 HDMI, 1VGA, 2DP and 7 Audio sources. The video output can be configured as 1, 2, 3 or 4 video windows. The Multiviewer offers a robust srolution for virtually any multi-image display-processing application whether in government applications, education and distance learning, corporate or medical, and traditional control room or broadcast and professional AV environments.

  • Output/Input resolution at 3840 x 2160@30Hz
  • TCP/IP Control via Web Browser
  • 4 HDMI, VGA, 2DP inputs
  • Up to 7 channels of separated audio per input
  • Audio time can be adjusted to sync with video
  • Front panel buttons for quick setup
  • EDID switch from any input to output
  • Fast switch between layout modes 1/2/3/4 video windows.
  • Output aspect ration could be 4:3 or 16:9
  • 1 RU chassis design

Features:


A: Powerful input/output

B: Advanced video capture function

C: Multiple display modes: 1x1, 1x2, 1x3,1x4,2x1,2x2,3x1,4x1 splicing layouts.

D: Multi-viewer mode: up to 4 lays using single output, up to 2 layer using two outputs.

F: Multiple operations: Front Panel, TCP/IP (optional), RS232 port, IR remote control.

G: WYSIWYG software control: a simple drag-and-drop style interface,

H: Remote controller: 16 different modes of scene preset

I: High reliability and stability, it can work normally non-stop. (7/24 application)

All the CK4L Series LED image processors can work stability with power on and without inner operation system support.

Input

Signals

 CVBS PAL/NTSC automatic identification, BNC to DVI adapter
YPbPr BNC to DVI adapter
VGA 640x480-1920x1200@60, VGA TO DVI adapter
HDMI HDMI 1.3, support HDCP,HDMI to DVI adatper
DVI 1024x768-1920x1200@60,

Output

Signals

 Connector DVI-I female 24+5pin;D-Sub female 15pin
Resolution 1024x768@60HZ-2048x1080@60HZ
Color depth 32bit
SYNC H V independent sync
Control Software WYSIWYG(what you see is what you get) PC control software
Control Method Front panel , Rs232, IR remote controller
Power Supply AC100-240V 50/60Hz
Temperature/Humidity -20°C-60°C, 5%-95%
Cabinet Dimension 483mm(L)×352mm(W)×45mm(H)
Weight Net weight :2.5KG Gross Weight:5KG

Edge shield technology

The unique edge shield technology through refine pixel adjustment and the edge signal automatically extended, the edge covering part is shielded to achieve a natural and intuive viewing.

Capability of acquiring multiple inputs

DVI-X multi-format acquisition technology allows inputs for AV, S-video, YPbPr, VGA, DVI, HDMI accepted by the same DVI-I video card. This brings you great convenience for the installation of real project.. E.G., it helps to avoid installation delay because of cabling.

Capability of decoding IP video camera

Support to decode the video from different IP camera brand, Hikvision, Dahua, Keda, Sony, Samsung, JSA, Bluestar, Histream, ACV, etc. The system can also decode IP video camera made by other manufacturers as long as they provide us correct encoding methods.

Wonderful operation experience

The control software can be installed in smart phones, Tablet-PCs, or touch panels and are compatible with Apple iOS, Android, Windows platforms.

Through the patented apps, users can select input sources, recall presets and adjust the size and position, superposition of video windows.
