P10MM Waterproof SMD LED Display Floor Tile Screen Minimum Noise For Stadium
P10MM Waterproof SMD LED Display Floor Tile Screen Minimum Noise For Stadium
P10MM Waterproof SMD LED Display Floor Tile Screen Minimum Noise For Stadium
P10MM Waterproof SMD LED Display Floor Tile Screen Minimum Noise For Stadium
Specifications
Brand Name :
EFF
Model Number :
eff/
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
according to differnt style
Supply Ability :
according to diffeent products
Delivery Time :
15-35 workding days after recieved payment
Packaging Details :
plywood export packing
driving mode :
1/17 scan
meterial :
metal
maintanance type :
front/back
material :
plastic cement on the top
protection level :
IP31
using place :
indoor
Description

Product information:

Technical traits of P10.42 mm outdoor sports/stadium led screen display:

Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system and play a variety of

information like video, word, flash, music, clock, graph etc. LED DISPLAY Cabinet design for easy install and dismantle.

Pixel pitch 10.42mm
Brightness 6,000 nits
Brightness adjusted 100 grade by software, or Auto-optic
Color temperature Could be adjusted by software
LED configuration 1R, 1G, 1B SMD
Pixel density 9216 pixels/sqm
2,304 pixels/cabinet (48 * 48)
Hor.viewing angle 140 (min 50% brightness)
Vert.viewing angle 140 (min 50% brightness)
Lifetime 100,000 hours to 50% of initial brightness
MTBF 10,000 hours
Power consumption 800 w/sqm (Max)
400 w/sqm (Average)
Operation power voltage AC 110V / 50 - 60Hz
AC 220V / 50 - 60Hz
AC 100-240V / 50-60Hz
Working voltage DC +5V

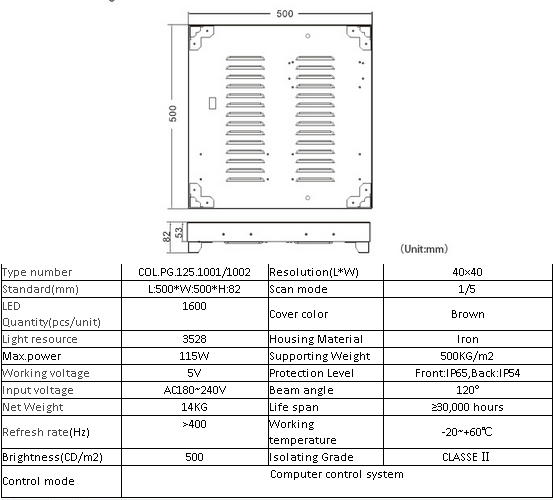

Cabinet dimensions Width: 500mm
Height: 500mm
Depth: 75mm
Weight bearing 1000 Kg/m2
IP rating IP65 Front side
IP55 Back side
Processing 16 bit/color
Colors 280 trillion
Refresh rate 4000 Hz
Frame rate 60Hz
Link interface DVI
Operating temperature -20℃ ~ +50℃ (-4° ~ 122°F)
Storage temperature -35℃ ~ +85℃ (-31° ~ 185°F)
Operational humidity 10-99%
Source compatibility DVI,SDSDI,HDSDI,VGA,HDMI,YPbPr,PAL/NTSC system composite
Operatable digitizer JSEE
Certifications CE,FCC,RoHS

----- Feature -----

  • Sturdy and durable aluminum alloy structure, with the advantage of good heat dissipation.
    High-wearing plastic mask material.
    Quick and easy installation.
    Seamless connection and could be tread on the surface directly.
    RGB deep grayscale management, and could achieve synchronization video display.
    Abundant installation accessories, which perfectly suitable kinds of application scene.

P10MM Waterproof SMD LED Display Floor Tile Screen Minimum Noise For Stadium

P10MM Waterproof SMD LED Display Floor Tile Screen Minimum Noise For Stadium
