Indoor Glass Led Display Screen And Le Wall For Shop Mall Cabinet Advertising
Indoor Glass Led Display Screen And Le Wall For Shop Mall Cabinet Advertising
Indoor Glass Led Display Screen And Le Wall For Shop Mall Cabinet Advertising
Indoor Glass Led Display Screen And Le Wall For Shop Mall Cabinet Advertising
Specifications
Brand Name :
EFF
Model Number :
eff/
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
customized
Price :
according to customer needing
Payment Terms :
T/T, Western Union
Supply Ability :
1000m2 /month
Delivery Time :
15-30 days according to order
Packaging Details :
export standard packing
PIXEL DENSITY :
12888DOT/M2
CABINET FLATNESS :
CLEANESS NO MORE THAN 1MM
TUBE CHIP COLOR :
FULL COLOR
using place :
Outdoor SMD1921 lamp
Description

Indoor Glass Led Display Screen And Le Wall For Shop Mall Cabinet AdvertisingTechnical parameters:

Product model number
Module size(mm) 1320 * 330 * 35
Module resolution(pixel) 96* 96
PC Color Black
Pixel configuration 3 in 1 SMD
Pixel Pitch 10mm
Lamp life 100,000 hours estimated average
IP Rating IP65
Bean angle(H/V) 140 °
Brightness 4500~5500cd/m2
Working voltage 24V
Power consumption (w/2 ) Max: 550, Average: ≥420
Communication distance CAT 5:120m; Fiber optical Cable:1000m
Screen work method Static
LED driving method Constant driving current
Refresh frequency (Hz) ≥ 1000
Signal interface DVI
Input signal Video: PAL/NTSC: Optioned, VGA, S-video, DVD
Display format 800 * 600,1024 * 768, 1280*1024
Software Supporting windows series system
Working temperature(ºC) -20 ~ +60
Humidity(RH) 10 – 95%
Stored temperature (ºC) -30 ~ +70

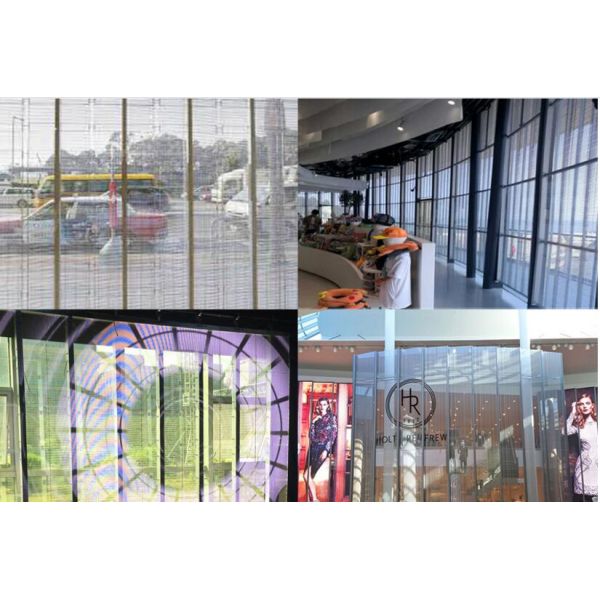

Pictures discribe:

Product features:

Slim:

Unit panel in size 330mm wide x 1320mm high x 35mm deep, weight only 5kg! This is strong impact to the heavy cabinet design screen!

See through:

45% transparency can create fantastic stage effects by smoke, back lights passing through

Stylish:

Benefited from special design of structure, screen can be formed into any shape or molded over any object, but also can equally be deployed as a flat LED video screen. Show designers will not have headache to create magic backdrops anymore!

Speed:

No worries for the time and manpower anymore! Only 3 steps (Plug in, lock and tight), you can install the screen

Smart:

It’s portable and mobile, applications for stage lighting, TV studio, concert, night bar, disco hall and other entertainment areas.

Indoor Glass Led Display Screen And Le Wall For Shop Mall Cabinet Advertising
