P5 Indoor Led Video Wall Panel For Department Store / TV Studio
P5 Indoor Led Video Wall Panel For Department Store / TV Studio
P5 Indoor Led Video Wall Panel For Department Store / TV Studio
P5 Indoor Led Video Wall Panel For Department Store / TV Studio
P5 Indoor Led Video Wall Panel For Department Store / TV Studio
P5 Indoor Led Video Wall Panel For Department Store / TV Studio
P5 Indoor Led Video Wall Panel For Department Store / TV Studio
P5 Indoor Led Video Wall Panel For Department Store / TV Studio
Specifications
Brand Name :
EFF
Model Number :
eff/3
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1pcs
Price :
according to different style
Payment Terms :
T/T, Western Union
Supply Ability :
1000M2 PER MONTH
Delivery Time :
ACCPRDING TO QUANTITY
Packaging Details :
plywood export packing
Usage: :
Outdoor
Brightness: :
6500cd/sqm
Pixel pitch :
5mm
Warranty :
2 Years
Display Function :
Video
Color: :
1R1G1B
Description



6MM Lndoor Display Led P6 Fixed P5 Indoor Led Video Wall Panel​


Products Specification:

Item PH5
Color Full-color real pixels
Use environment Outdoor
Pixel pitch 5mm
Module size 240*240mm
Physical density 27778 dots/sqm
Pixel configuration 1R1G1B
LED chip SMD3528
Module resolution 48*48
Module power 40w
Recommended viewing distance 5-35m
Best viewing angle H: 120°; V:120°
Maximum power consumption 700w
Average power consumption 280w
Cabinet size W480m×H480mm
Standard cabinet resolution 96*96
Weight 8.5 kg/panel
Driving method 1/16 Scan, Constant Current
Video frame rate ≥60 Hz
Rate refresh ≥1200Hz
White balance brightness ≥1000cd
Operating temperature/Humidity -30℃~+45℃
Ingress protection Front:IP 67; Back:IP65
Input voltage 110-220V AC±10%
Gray scale /Color Display Colors ≥16.7N(Synchronize)
Brightness control Manual/Automatic
Input signal RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control system PCTV+DVI video card+control card+fiber
MBTF >500 hours
Life time >100,000 Hours
The rate <0.0002


Applications:

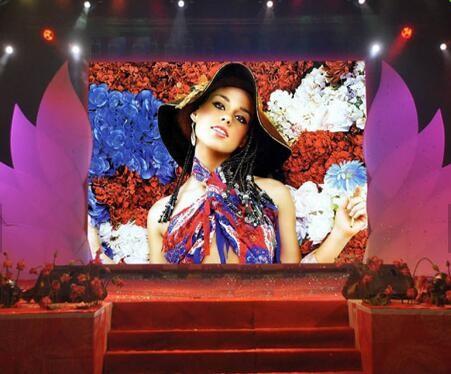

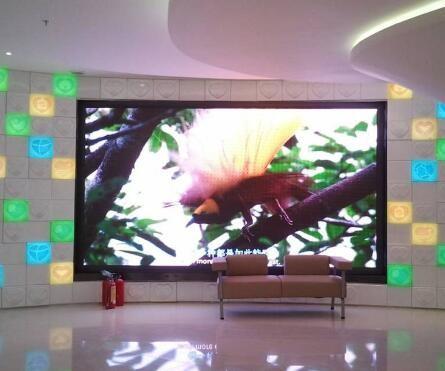

Live shows, rental events, TV studios, exhibitions,stage background, department stores, banks, etc.

Service & Support:

Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.

Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.

Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

P5 Indoor Led Video Wall Panel For Department Store / TV Studio

P5 Indoor Led Video Wall Panel For Department Store / TV Studio

P5 Indoor Led Video Wall Panel For Department Store / TV Studio
