Specifications
Brand Name :
EFF
Model Number :
eff/n
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
according to different style
Payment Terms :
T/T, Western Union
Delivery Time :
7-15 working days
Packaging Details :
plywood export packing
Size :
55 inch
chip :
full color chip
Keyword :
4.5 ms
Display :
Video
name :
controller
Description

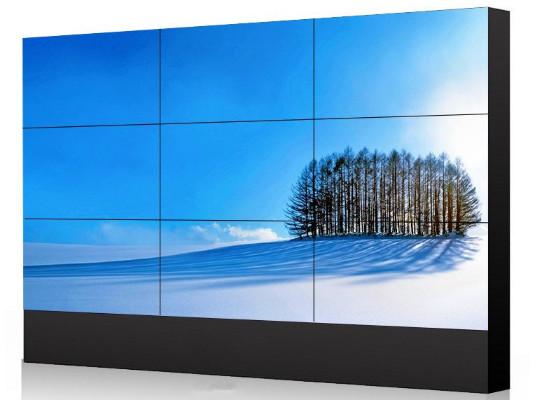

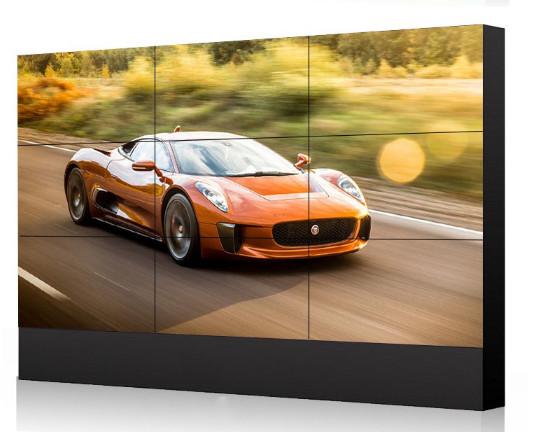

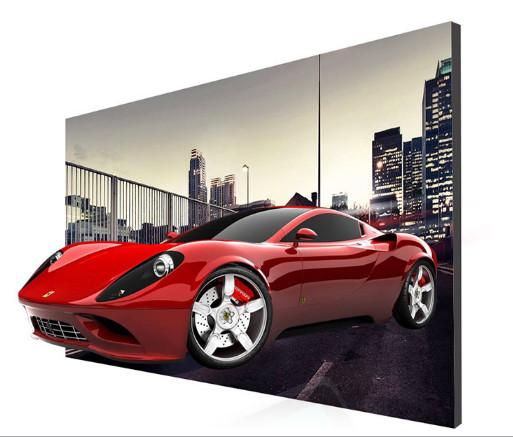

55 inch 65 inch ultra narrow bezel lcd video wall with video wall controller

Application

1. Our advertising player useful for Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

2. Our advertising player useful for Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

3. Our advertising player useful for Non-profit Organizations:Telecommunications, post offices, hospital, schools

4. Our advertising player useful for Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers

5. Our advertising player useful for Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.

6. Our advertising player useful for Public Places:subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

Features:


A: Powerful input/output

B: Advanced video capture function

C: Multiple display modes: 1x1, 1x2, 1x3,1x4,2x1,2x2,3x1,4x1 splicing layouts.

D: Multi-viewer mode: up to 4 lays using single output, up to 2 layer using two outputs.

F: Multiple operations: Front Panel, TCP/IP (optional), RS232 port, IR remote control.

G: WYSIWYG software control: a simple drag-and-drop style interface,

H: Remote controller: 16 different modes of scene preset

I: High reliability and stability, it can work normally non-stop. (7/24 application)

All the CK4L Series LED image processors can work stability with power on and without inner operation system support.

Panel Size 43"-65" LG DID LCD Screen with LED backlight(with narrow bezel 5.3mm)
Aspect Ratio 16:9
Max Resolution Support 1920×1080(H×V)
Color 8Bit,16.7M
Brightness (nits) 450cd/m2
Contrast 4000:1
Visual Angle (H/V) 178°(H) / 178°(V)
Response Time 6ms
Life(hrs) >60,000(hrs)
Input and output
DVI 1
HDMI 1
D-15 RGB Input(VGA) 1
YUV/YPbPR 1(3xBNC)
S-(YC) 1(2xBNC)
Composite Video Input/(AV) 3(3xBNC)
Composite Video Output 2(2xBNC)
AUDIO INPUT 1
Split Screen Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply AC100V~240V
Maximum Power Consumption 230W
Standby Power Consumption <=3W
Temperature
Working Temperature 0°C~50°C
Working Humidity 20%-80%
Dimension 1215.3×686.1mmx131mm
Video Wall Processor Controller
Model No. MV-P817W
DVI in 1
HDMI in 1
VGA in 1
Composite Video Input/(AV) 1(BNC)
Composite Video Output 1(BNC)
Control signal input and loop out RS232(RJ45-8)
Split Screen Sport Picture in Picture (PIP/POP)
Working temperature 0°C~55°C
working humidity 10%~90% RH
AC voltage power supply 100-240V/50, 60Hz
power consumption Max 300W,according to different Screen models
Dimension 338×295×60(mm)
Weight About 3.5KG

Edge shield technology

The unique edge shield technology through refine pixel adjustment and the edge signal automatically extended, the edge covering part is shielded to achieve a natural and intuive viewing.

Capability of acquiring multiple inputs

DVI-X multi-format acquisition technology allows inputs for AV, S-video, YPbPr, VGA, DVI, HDMI accepted by the same DVI-I video card. This brings you great convenience for the installation of real project.. E.G., it helps to avoid installation delay because of cabling.

Capability of decoding IP video camera

Support to decode the video from different IP camera brand, Hikvision, Dahua, Keda, Sony, Samsung, JSA, Bluestar, Histream, ACV, etc. The system can also decode IP video camera made by other manufacturers as long as they provide us correct encoding methods.

Wonderful operation experience

The control software can be installed in smart phones, Tablet-PCs, or touch panels and are compatible with Apple iOS, Android, Windows platforms.

Through the patented apps, users can select input sources, recall presets and adjust the size and position, superposition of video windows.
