Full Color Steel HD LED Wall , Super Slim P4 LED Display Outdoor
Full Color Steel HD LED Wall , Super Slim P4 LED Display Outdoor
Full Color Steel HD LED Wall , Super Slim P4 LED Display Outdoor
Full Color Steel HD LED Wall , Super Slim P4 LED Display Outdoor
Full Color Steel HD LED Wall , Super Slim P4 LED Display Outdoor
Full Color Steel HD LED Wall , Super Slim P4 LED Display Outdoor
Full Color Steel HD LED Wall , Super Slim P4 LED Display Outdoor
Full Color Steel HD LED Wall , Super Slim P4 LED Display Outdoor
Specifications
Brand Name :
EFF
Model Number :
eff/z
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
according to differnt style
Supply Ability :
according to diffeent products
Delivery Time :
15-35 workding days after recieved payment
Packaging Details :
plywood export packing
Moduel Size :
256*128 mm
Pixels: :
4mm
style :
SMD
Color :
RGB
Net weight: :
50 kg/sqm
Power Supply :
Meanwell
Description

Full Color Steel HD LED Screen Wall, Outdoor P4 Best LED Display

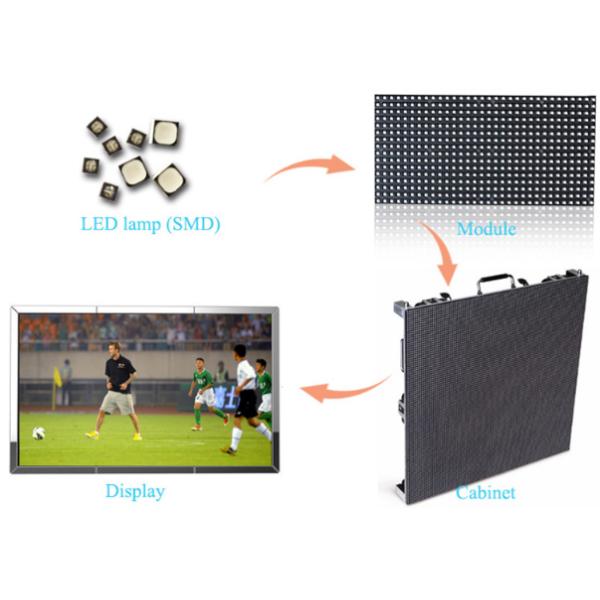

LED is the abbreviation for light emitting diode. LEDs are arrayed breadthwise and lengthways with stable pitch that form LED matric-LED Display Screen. Each LED of the LED Display has a corresponding luminance control circuit. A computer controls the circuit, the circuit influence the brightness of each LED, then form the picture or letters we desire in the led display screen.

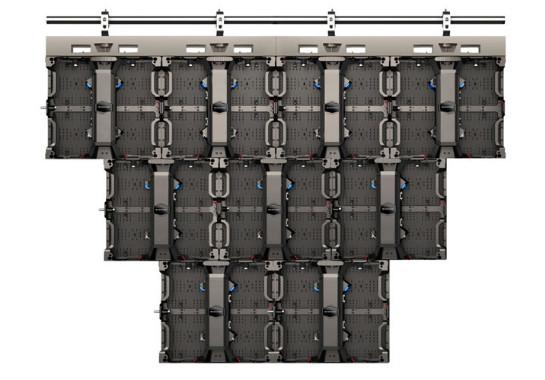

Cabinet discriptions:

1) Super slim,super light,easy to carry,to transport.


Cabinet size:480mm*480mm*50mm(P3,P4,P5)


576mm*576mm*50mm(P6)

Cabinet weight:8kg/10kg

2) Die-casting Aluminum: very stable, no deformation.

3) Flatness: forming mold in one time, accurate to 0.2mm.

4) No noise: with fanless power supply, it's completely quiet.

5) Fast installation: only one man can install 50 cabinets by hand within an hour

Technical Parameters:

Pitch size 4 mm
Pixel configuration 1 Red, 1 Green ,1 Blue, SMD 3-in-1
Cabinet solution(W*H) 192 dots * 192 dots
Pixel density 62500 dots/sqm
Cabinet size(W*H) 960 mm*960mm
Brightness(average) ≥6500 cd/ sqm
View angle(H/V) H/V 140/120 degree
Power consumption 100 W/sqm ~ 1200 W/sqm
Net weight 50 kg/sqm
Voltage 220V/110V±15% 50 Hz
Color scale 256~65536 degree /1.07 billion colors
Display mode VGA 640X480—VGA 1600X1024
Life span ≥100,000 hours
Refresh frame frequency ≥2000 HZ
Exchange frame speed >150 frames per second
Control distance ≤100M (Cat.5 without repeater) /500 M (multi-mode optical fiber)/20000m(single-mode optical fiber)
Operating temperature -25°C~+60°C
Operating humidity 10%—95% RH
Software LED studio
Best view distance >4m
Communication port VGA
Control mode Synchronous, real time with PC
Drive mode Constant current driving
Protection of power supply Overtemperature, overcurrent, overvoltage etc.
Operating system Windows 98/Me/2000/Xp
Brightness adjustment 100 levels automatically or by hand
Drive mode 1/8 scan, constant current
