Specifications
Brand Name :
EFF
Model Number :
EFF/2.98
Certification :
CE/FCC
Place of Origin :
China
MOQ :
According to customer needing
Price :
according to quanitty
Payment Terms :
T/T Western Union
Supply Ability :
1000pcs
Delivery Time :
according to order quanity
Packaging Details :
plywood /flight case
LED Brand :
Nation Star
chip :
MBI5153
Using Place :
Indoor
Size :
2.98
Freshrate :
4000HZ
Material :
Alluminum
Description

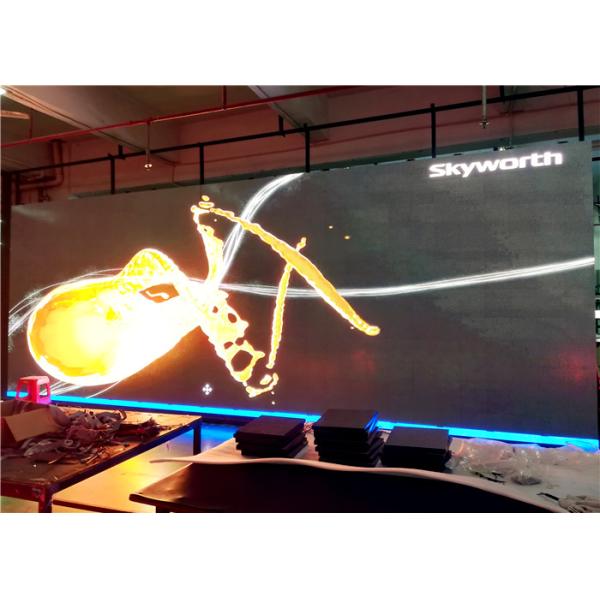

Nation Star LED 5153 IC Indoor LED Video Wall For Studio Room Background



Standard Cabinet Dimensions&High Brightness with High Quality


The ultra-lightweight cabinet made is aluminum-magnesium alloy which gives it extra strength. The cabinet of Lightweight LED Screen for Show is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.

The high brightness and high definition features of the curved rental led display ensures great quality pictures - making it a perfect fit for stage, hotel, promotion, station, stadium and other places.


Four High Technologies - Point-to-Point Correction


The display features four high technologies and point-to-point correcting. High refresh rate, high gray scale level, high definition and high contrast rate present excellent quality picture output in every condition.

Silence Operation - Low Power Consumption&
Strict Aging Test

The Stage Curtain LED Screen is known for its silence operation and low power consumption. It is also known for fast heat dissipation which will save more energy. Cut on the electricity expenses and help environment with this highly advanced advertising display.

All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.

Two Connection Types&
Integrated Design, Fast Installation


The display has two connection types - horizontal and vertical connections. Thus, it can be installed in both ways. Unique cabinet design ensures fast installation and convenient maintenance.

The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.

Data Sheet

P2.98 indoor Full-color LED Screen-Rental
Width(m) Height(m) Size(sq.m)
Display Size in [m²] (W) x (H)
Cabinet Quantity
Horizontal Vertical Pixels
Display Physical Resolution
1. LED Specification
Brightness 1500 nits
Viewing Angle 160°(V) / 160°(H)
LED Type SMD 2121
2.LED Module Specification
Pixel Pitch 2.98mm
Resolution 64x 32
Size 192mm x96mm
Pixel Density 11111pixels/m² (real pixels)
LED Arrangement 1R1G1B (3-in-1)
Driver Mode 1/36 scan driving
3. Cabinet Specification
Resolution 192 (H) x192 (V)
Size 576mm x576mm
Depth 35 mm
Material & Maintenance Aluminum
Weight approx. 7 kg per cabinet
4. Led Display Specification
Mechanical ratings
Surface flatness GAP< 1mm
Optical Ratings
Minimum View Distance 3 m
Gray Scale 16 bits input, with correction 65536 levels
Display Color 281 trillion
Brightness Adjustment 100 Levels with RGB individual adjustment
Power Supply
Operation Power AC110V/AC220V 50-60Hz
Max Power Consumption 800W/m2
Average Power Consumption 400W/m2
Control System
Control Mode Synchronous display with control PC by DVI
Frame Update Frequency M2
Screen Refresh Frequency 3840 Hz (MBI 5153)
Gamma Correction 16 bits
Support Input Composite Video, S-Video, DVI, CATV
Control Distance Ethernet Cable 100m, Optical fiber 5km
Support VGA Mode 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200,
View Angel 160°Horizontal , 160°Vertical
Brightness Correction Dot by Dot, module by module, cabinet by cabinet
Reliability
Operating Temp. - 10°~ +50° Celsius degree
Operating Humidity 10 - 90 % RH
Operating Life 100000 Hours
Continuous Working Time ≥48 hrs
MTBF 5000 Hours
Out of Control Pixel Rate 0.0001
