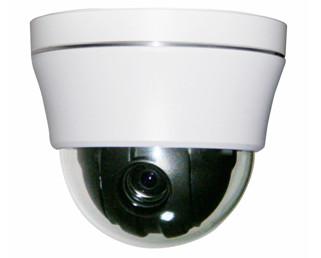

Mini High Speed Dome Camera Ceiling Mount 10x Optical Zoom 30m Ir Distance 1000TVL
Mini High Speed Dome Camera Ceiling Mount 10x Optical Zoom 30m Ir Distance 1000TVL
Specifications
Brand Name :
pearmain
Model Number :
PE3035OM1-A
Certification :
CE, FCC, UL
Place of Origin :
China
MOQ :
1unit
Price :
USD190
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100units per week
Delivery Time :
7 working days
Packaging Details :
special shipping carton, 38.5*38.5*26.5cm/ctn,4pcs/ctn
optical zoom :
10x
mount :
surfance mount on ceiling by 2 screw only
size :
mini type in one hand
Resolution :
1000 TVL
Description

PE3035OM1-A​ mini High Speed Dome Camera , 30m ir distance, 10x optical zoom,1000TVL

Quick Detail:

● 1/3” CCD, 10x optical zoom, 1000TVL.

● Pleco D, P protocol, baud rate can set ,RS 485 communication

● Powerful OSD menu for setup of Programmable Functions, support full screen OSD menu.

● With function of auto focus, auto iris, auto white balance and auto backlight compensation etc. to have clear camera scene at any time.

● Built-in linear power for anti-surge and anti-Lightning protection

● 256 preset.

● 8 cruise tours, every tour can havel 30 preset.

● 4 Pattern tours, to save 100 actions.

● 360° continuous panning, -90°～90° tilting rotation, automatic flip

● Limit setting, to set the pan or tilt movement in a scope.

Description:

PE3035om1-a is intdoor ceiling surface mount IR high Speed dome camera, its small size to make installation could be easy.

Specifications

Specifications for Pan-tilt:

Address 0~255
Pan range 360°Continue
Tilt range 0°~90° Flip
Manual speed Pan 0.01~240°/Sec
Manual speed Tilt 0.01~180°/Sec
Preset speed 300°/Sec
Preset accuracy ±0.01°
Preset 256
Cruise Tours 8, every tour have 30 preset
Speed setup for cruise tour Yes
Pattern Tours 4, to record 100 action
horizontal Scan 1
Zone scan Support, to set 2 point to generate this scan.
Integrate multi-protocol Pelco_D/P
Home position Yes, preset, cruise tour, pattern tour, auto scan, etc. available
anti-surge and anti-Lightning protection Yes
OSD menu operation Yes, support full screen OSD display
Supporting camera Sony, Samsung, etc.
Camera character programming Support full screen OSD display
Ingress Protection IP66
Operating Temperature –20℃~55℃
Humidity 0%~90% (Non condensing)
Heater operate (-5)℃ on +5℃ off
Power DC12V, 3A
Consumption heater off 6W heater on 11W
communication RS485 (+/-)
Connection BNC cable
Operating temperature -20 to 50 °C
Housing material Aluminum alloy
IR distance 30m
size Diameter:142mm, height:123mm
Weight 3.5kgs

Camera

Image Sensor 1/3" color CCD
Focal Length 10x optical zoom, f=5.0mm(Wide) to 50.0mm (Tele), F1.8-3.2
Zoom Speed NTSC: 1.9sec, Pal: 1.84sec (Optical WIDE-TELE )
Angular of View H : Appr. 46.0°(Wide) to 4.6°(Tele)
Scanning System 2:1 Interlace
Synchronization Internal/ VD-Lock
Min. Working Distance 200mm (WIDE end), 1000mm (TELE end)
Effective pixels 796(H) x 596(V) / 752(H) x 582(V)
Horizontal Resolution Color:1000 TV Lines, B/W: 1200TVL
Signal System NTSC / PAL
Min. Illumination 0Lux IR ON
S/N (Y signal) ≥60 dB (strengthen)
White Balance Auto,Manual
Gain Auto/Manual
Backlight compensation ON/OFF
Video output CVBS : 1.0Vp-p/75Ω
IRIS Control Auto,Manual
