PM70MB IP matrix switcher, H265/264 and ONVIF, with 16ch HDMI output and cascading. up to 4K decoding and Video wall controller function, inlcuding split, splicing, PIP, curise, etc. Joystick available for precise steer, video over IP.

In general
PM70MB series IP matrix swticher is compatible with H.265/264 and ONVIF, up to 4K video decoding capability, perfect on video wall controller and cascading to have more than 16ch HDMI output.
Perfect video wall management, including split/splicing/mixing display and Cruise, etc.
The IP PTZs will operate much like a typical Analog PTZ system with each PTZ being assigned an IP address by the switch and the communication path/language being over IP protocol.

As IP products become more mainstream, several partners are looking for a video wall controller/matrix combination allowing for and easy way to display and operate IP cameras , IP PTZs & other signals like anlog, tvi/cvi/ahd, HDMI.
Simplicity of operation is the key and the ability to call a camera into a selected pane or window on video screen was the goal in developing this IP matrix switcher.
The command structure is simple: 〔1〕〔CAM〕+〔1〕〔MON〕on the IP keyboard/PTZ controller allows the users to switch camera 1 to Monitor 1, while the joystick allows for precise operation of the PTZ.
This was the idea behind the development of the PM7000V2 ip matrix: the IP PTZ is operated much like a typical Analog PTZ system with each PTZ being assigned an IP address on the network switch and the communication path/language is over ip protocol.

Quick Detail:

◆ Support for network media, ONVIF, RTSP data input
◆ Support computer keyboard & Mouse direct input, U Flash storage.
◆ Support BNC (TVI,CVI,AHD or CVBS) / HDMI/HD SDI input,the HDMI input support 4K.
◆ Modular design, 5.4RU chassis with 16ch slots for 16 card/32ch HDMI outputs, besides it, there is 12RU chassis for 24 cards, 4RU chassis for 8 cards, 4ch /2ch HDMI output standalone available.
◆ Each matrix card supports 2ch HDMI output, every odd output support 4K resolution.
◆ Each Video Output can identify optimum resolution automatically, or allow the user to change the output resolution manually. Maximum supported resolution per card 3840x2160@60Hz.
◆ Support 4K, 1080P, 1080I, 720P, D1 video formats
◆ Support standard H.265 & H.264.
◆ Single module support 4ch at 4K or 16ch at 1080P or 32ch at 720P decoding and display.
◆ Support video-splitting output, up to 8x8 windows split on one monitor
◆ Support monitor splicing by any size ,splitting, windowing, zooming in & out
◆ Support audio input and output, also monitoring, broadcasting and intercom functions are supported
◆ Support OSD, title, time and warning messages can overlap on the displayed video
◆ Compatible with branded IPC without use of streaming media server
◆ Compatible with Onvif 2.4, and RTSP protocols
◆ Matrix Client software could configure all parameter, perfect video wall management functions.
◆ Video preview & PTZ control on ip matrix software

Specifications:

Applications:

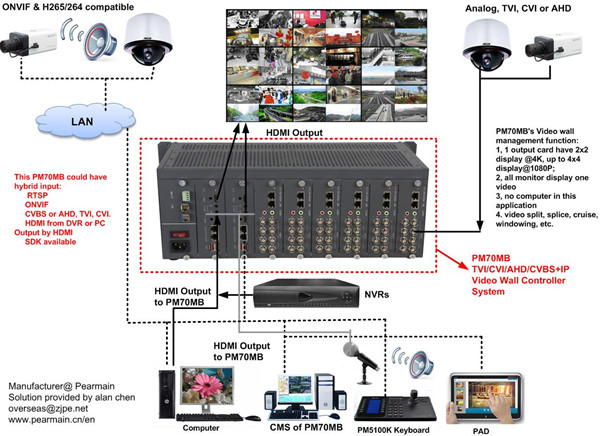

To IP generation, quite a few partners are looking for a controller and matrix type device, for an IP PTZ system that will allow the end user to have the touch and feel of an analog system, like 1 CAM+1MON to switch camera video.

ONVIF, H265/264 compatible. 4K decoding.

analog, tvi,cvi,ahd HDMI hybrid, HDMI output. perfect video wall management.
