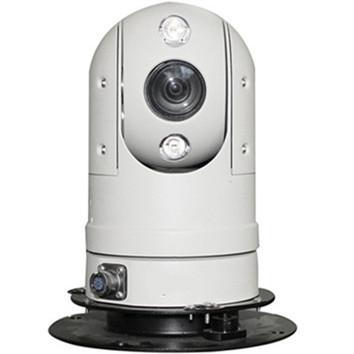

Vehicle Speed Dome Camera , Portable PTZ Cameras 80m IR Distance 18x12
Vehicle Speed Dome Camera , Portable PTZ Cameras 80m IR Distance 18x12
Specifications
Brand Name :
pearmain
Model Number :
1535
Certification :
CE, FCC, UL
Place of Origin :
China
MOQ :
1unit
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100units per week
Delivery Time :
7 working days
Packaging Details :
special shipping carton, 60x3x58cm, 7kgs
camera module :
fcb-ex480C
optical zoom :
18
digital zoom :
12
Description

1535 Vehicle portable High Speed Dome Camera , Pearmain PTZ Camera, 18x12

Quick Detail:

●High Die-cast Aluminum Construction
● Low noise design, prevision at 0.9°

● OSD menu, power failure memory

● 80m IR distance
●256 preset positions,6 cruising tracks, 4 line scan, 1 pattern scan
● compass
● home position could set to call cruise, preset, line scan, etc.
●TVS 4000V lightning protection and IP66
●360º panning at 0.1～220°/s, maximum pan speed 300°/s, 0～90º tilt at 0.1～90º ,120°/s maximum.
● could be for reference camera
● DC11V to D18V

Description:

in portable application field, the customer always like to find a small-size ptz, easy to installation and operation is so importable, we develop the 1535 portable ptz by this idea.

the height of 1535 is about 24cm and diameter is 12cm, we offer vehecle mount bracket for vehicle application and powerful magnet bracket for outside tmerporary application.

DC11 to 18V power could come from vehicle or solar power

Specifications

Camera

SONY FCB-EX480C

Image Sensor

1/4 Inch SONY EXVIEW CCD

Focal Length

4.1-73.8mm, 18x optical zoom, 12x digital zoom

Zoom Speed

Approx. 2.1sec (Optical WIDE-TELE )

Angular of View

48 degree (WIDE end) to 2.8 degree (TELE end)

Min. Working Distance

290mm (WIDE end), 800mm (TELE end)

Aperture Range

F1.4-F3.0

Effective Pixels

PAL: 752 (H)×582 (V)

NTSC: 768 (H)×494 (V)

Horizontal Resolution

480TVL

Signal System

NTSC / PAL

Min. Illumination

0.7Lux / F1.4 (Color) 0.01Lux / F1.4 (B/W)

White Balance

ATW / Manual

AGC

Auto / Manual

S/N Ratio

Better than 50dB

BLC

ON / OFF

Electronic Shutter

1/1~1/10,000s (22 steps)

Day & Night

ICR

Digital Zoom

Up to 12x

Auto Focus

Auto / Manual

Mechanical/Electrical:

Pan Max Speed

300°/S

Tilt Max Speed

120°/S

Pan manually controlled speed

0°~220°/S

Tilt manually controlled speed

0°~90°/S

Pan Range

360°

Tilt Range

+90° -- -20°

Preset

256 Presets

Relative humidity

90%

Protection class

IP66

Environment temp

-35° ~ +55°

Power supply

DC11V --- DC18V

Consumption

30W

Weight

2.5KG

Applications:

The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. to offer video to DVR/matrix system
