PEM400 series Explosion proof Camera Housing , Pearmain Exproof housing, ExdⅡBT5 / DIP A21 TA, T6, IP68

Quick Detail:

Stainless steel material

Inside be with fixed lens or zoom lens camera

Steel glass for window

With sunshield and wiper

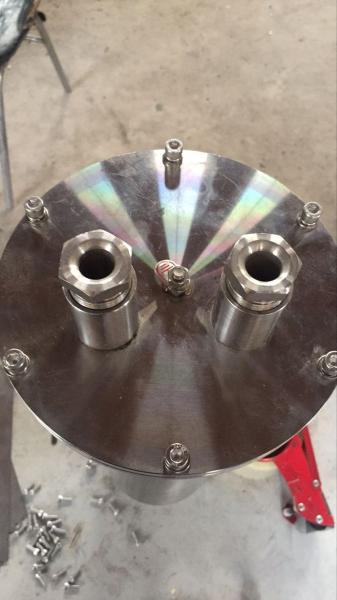

2 cable outlets at housing rear

IP68

Indoor or outdoor for all weather use

Description:

PEM400 Ex-proof Housing is new ex-proof monitoring equipment, which adopts more advanced techniques. With matured quality system as base, its performance and quality has been on a leading stage in explosive and flammable air, flammable dust atmosphere to work with all kinds

of ex-proof pan/tilts for monitoring.

PEM400 could be installed with fixed or zoom lens camera or integrated camera inside, big enough space for most cctv applications.

Stainless steel for all kinds of environment and working under -45℃ to +60℃ longtime stably

Supply voltage 220VAC/110VAC (in condition of offering camera).

Window adopts steel glass material to keep a better picture quality.

2 cable outlets with ex-proof tube or armored cable for connection

Low temperature auto-heating function optional

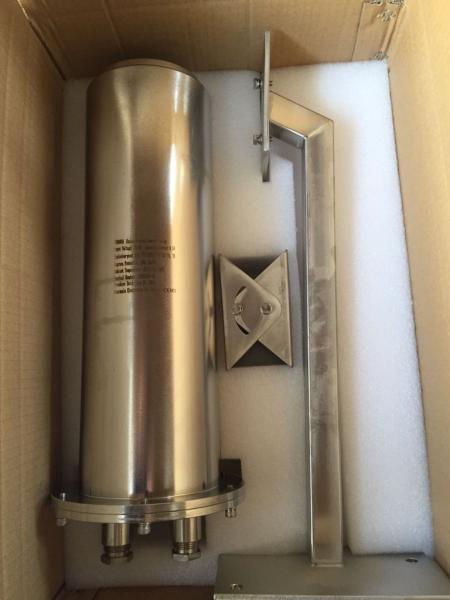

Half-pan/tilt, fixed bracket, base, pole or lattice tower areall-available for mounting.

ELECTRICAL (in condition of offering camera)

Input voltage: 220/110VAC, 50/60Hz

Voltage scope: ±10%

Working current: ≤0.3A

Auto Heater(optional): Work while it is -10℃±5℃

Power consumption: ≤20W(with heating)

Connection: 2-core for power

4-core for lens control

Video cable for video output

ENVIRONMENTAL

Air pressure: 86～106KPa

Temperature: -45℃~+60℃

Humidity: ≤95%RH (+25℃)

MECHANICAL

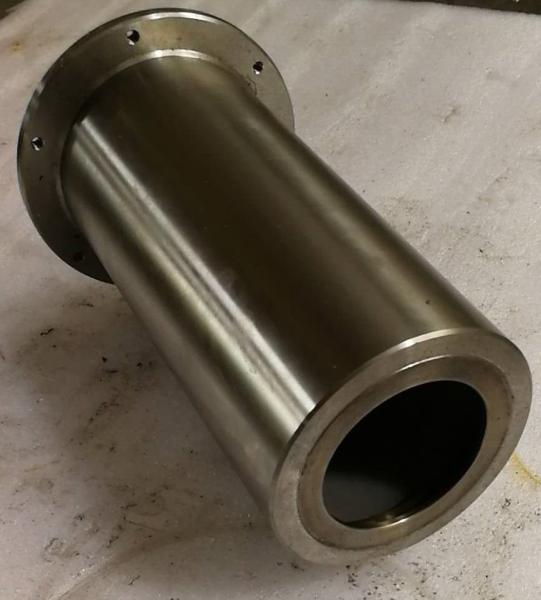

Material:304 or 316L

IP:IP68

Dimensions:

PEM400A: 480(L) x 180(H) x 180(W) mm

PEM400B: 370(L) x 165(H) x 165(W) mm

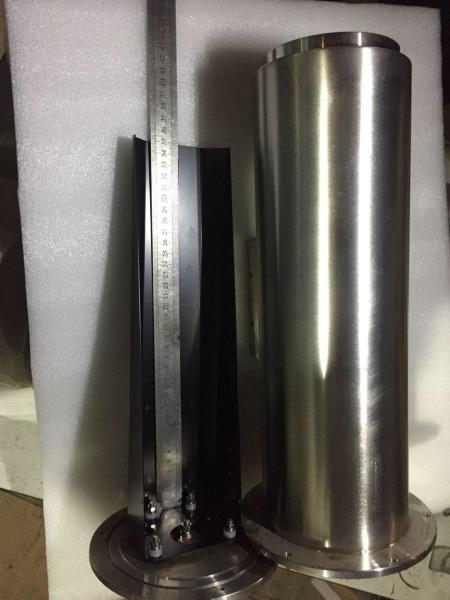

Inner size:

PEM400A: 260(L) x 70(H) x 90(W) mm

PEM400B: 180(L) x50(H) x 90(W) mm

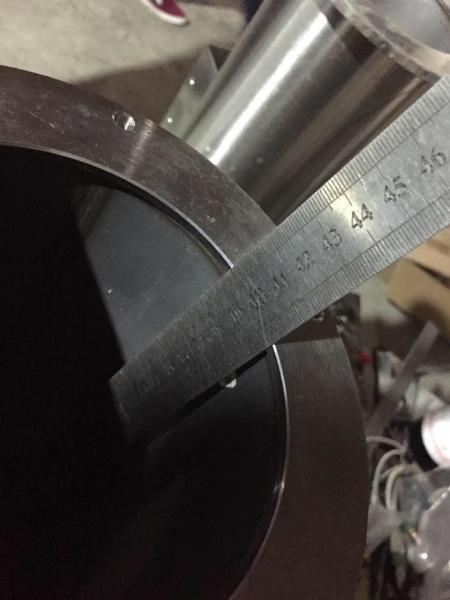

Window Thickness: 8mm

Window area: Φ66mm

Weight/ship weight:

PEM400A: 9Kg / 12Kg

PEM400B: 7Kg / 10Kg

Cable outlets:2

Screw type:G-3/4”

Mounting: Pan/tilts, half-pan/tilts and fixed brackets

Applications:
it is very good for the market in the area of explosive and flammable for monitoring, like mining, petrol, etc.
