Specifications
Brand Name :
Hawkvine
Model Number :
M300
Certification :
ISO14001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
50000-53000USD/SET
Payment Terms :
L/C, T/T
Supply Ability :
1000 Per month
Delivery Time :
30days
Packaging Details :
Carton Packing
Hawkvine No. :
HV-M300
Frequency :
300Khz
Range :
300m
Consumption :
30W
Description

Hawkvine M300 Multibeam Echosounder for Amplitude and phase detection technology Multibeam sonar manufacturers.

Hawkvine M300 Multibeam Echosounder for Amplitude and phase detection technology Multibeam sonar manufacturers

M300 is a high accuracy and high resolution multibeam systems, the use of amplitude and phase detection technology, to achieve a high coverage of 130 degrees, number of beams up to 512. The new sonar interface technology improves the time synchronization accuracy of all the auxiliary sensors, realizes the synchronization of the millisecond level, and improves the accuracy of the system.

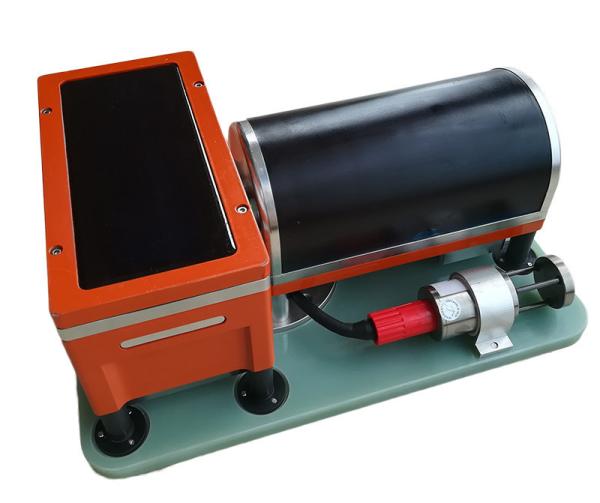

The Sonar consists of compact projector, receiver modules and inboard Sonar Interface Module Third party auxiliary sensors are connected to the Sonar Interface Module.The sonar data is tagged with GPS time.

AC power supply, battery power supply can be used for ultralow power consumption design. The mechanical structure is compact and portable, easy to carry, reliable and durable.

M300 features:

• Focused 1.5° * 1.5° beam widths
• Wide swath sector 10° to 130°
• Automated Track and Control
• Easy installation and opetation
• Low volume ,weight and power
• OTech® customizable software
• Optional other sensors

M300 Application:

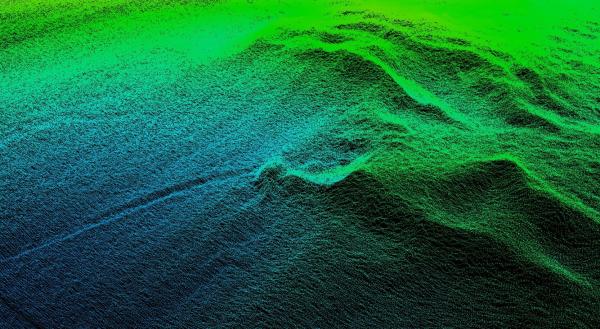

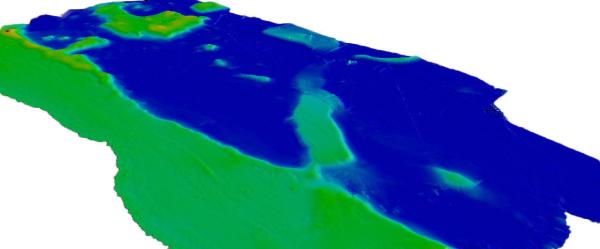

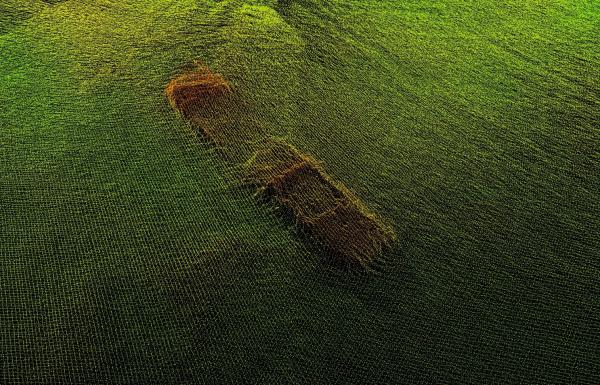

• Hydrographic Surveys
• Dredging surveys
• Port mapping
• River surveys
• Environment Rearsh
• Pipeline Route
• Defense & Security

Hawkvine No. HV-M300
Systems Specification
Frequency 300kHz
Beam Width 1.5° * 1.5°
Pulse Length 25us-500us ,CW
Ping Rate 25Hz
Range Resoulution 2cm
Swath Sector 130°
Number of beams 64,128,256 or 512
Max Range 300m
Temperature -5°C - 45°C/-30°C - 55°C
Power 200-240VAC 50Hz / 24VDC
Consumption 30W
Mechanical
Projector Dim 210mm*110mm*125mm(L*W*D)
Projector Mass 4.0kg
Receiver Dim 210mm*110mm*125mm(L*W*D)
Receiver Mass 4.3kg
Integration Dim 360mm*242mm*222mm(L*W*H)
Integration Mass 13.5kg
Module Dim 375mm*345mm*135mm(L*W*H)
Module Mass 9.5kg
Cable 25m
