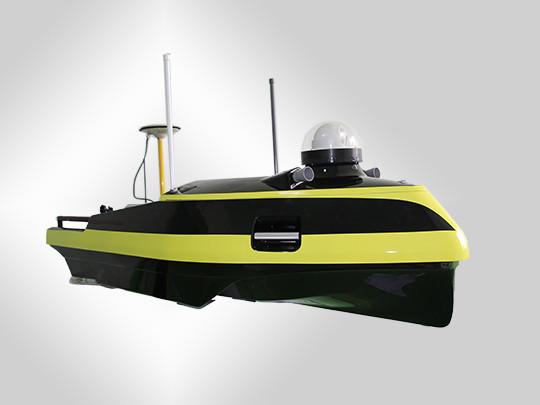

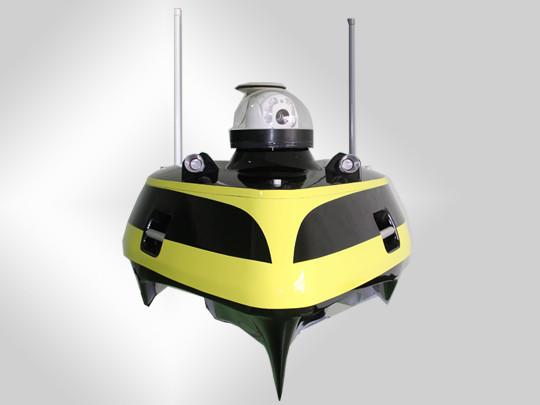

Unmanned Survey Boat and Surface Vehicle Hydrographic Survey for Surveying Equipment and Instrument
Unmanned Survey Boat and Surface Vehicle Hydrographic Survey for Surveying Equipment and Instrument
Unmanned Survey Boat and Surface Vehicle Hydrographic Survey for Surveying Equipment and Instrument
Unmanned Survey Boat and Surface Vehicle Hydrographic Survey for Surveying Equipment and Instrument
Unmanned Survey Boat and Surface Vehicle Hydrographic Survey for Surveying Equipment and Instrument
Unmanned Survey Boat and Surface Vehicle Hydrographic Survey for Surveying Equipment and Instrument
Unmanned Survey Boat and Surface Vehicle Hydrographic Survey for Surveying Equipment and Instrument
Unmanned Survey Boat and Surface Vehicle Hydrographic Survey for Surveying Equipment and Instrument
Specifications
Brand Name :
HAWKVINE
Model Number :
USV007
Certification :
ISO14001
Place of Origin :
CHINA
MOQ :
10PCS
Price :
100
Payment Terms :
L/C, T/T
Supply Ability :
1000 Per month
Delivery Time :
15days
Packaging Details :
Carton Packing
Hawkvine NO. :
HV-USV007
Description

Unmanned Survey Boat and Surface Vehicle Hydrographic Survey for Surveying Equipment and Instrument Manufacturer from China.

Hydrographic Survey USV007 Advantage Functions:
1.Hull module
●Trimaran design shape with portable size
●Kevlar＆carbon high-strength composite
●Propellers with ducted design and protective shield
●Remote video and obtacle avoidance
2.Sounding module
●Professional HD-MAX sounding module range from 0.15~300m
●Digital and simulative echo signals combined
●Independent HiMAX software available for collecting,guiding and post-processing
3.Application
●Underwater topographic survey
●Underwater landscape survey
●Hydrographic survey
●Water quality monitoring

Model No. HV-USV007
Hull Parameter
Dimensions 1800x840x480mm
Weight 30KG
Hull material Kevlar & Carbon fiber high-strength composite
Boat Shape Trimaran designed,low barycenter,small resistance,stable sailing
Anti-wave &wind 5th wind level and 3rd wave level
Power and electrical parameter
Battery endurance 6hours at 2m/s
Top speed 3.5m/s
Propulsion Brushless DC outdrivers
Propeller Type one primary and two assistant propellers with ducted design
Direction control veering without steering engine and sailing reverseky
Safety Guarantee
Obstacle-avoiding Automatic ultrasonic obstacle-avoiding
Video Transmission in real-time
Auto-return Auto-return while low battery or dropped signal
Ashore Base
Operating system Supporting Windows and Android
Communicating mode RF point to point in real-time
Transmission distance Wireless bridge 2KM(5KM,10KM,15KM optional)
Navigation Mode Manual or autopilot,switchover at any time

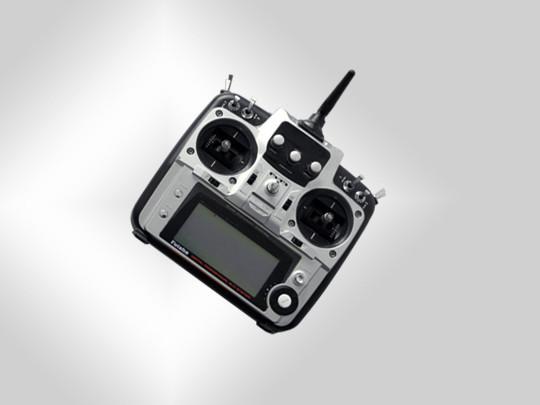

Intelligent Controller
Communication Mode RF point to point in real-time
Reacting distance 2KM
Waterproof IP65
Function work mode switch in real-time,basic information display of USV in real-time
velocity and direction control of USV.
Sounding Performance
Work Frequency 200Khz
Beam Angle 5°±0.5°
Sounding range 0.15m~300m
Sounding resolution 1cm±0.1,1cm depth resolution
Location Accuracy
RTK Horizontal :±8mm+1ppm RMS Vertical :±15mm+1ppm RMS
Beacon (optional) 0.5m
SBAS 1.0m CEP
