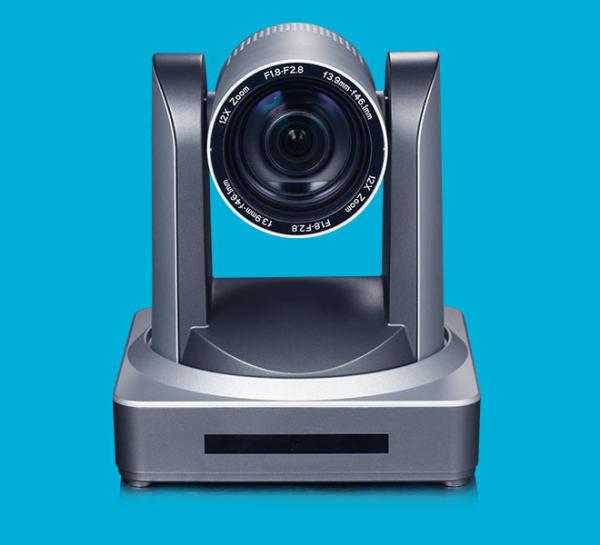

Hawkvine VC028 USB2.0 USB3.0 HD PTZ Video Conferencing Camera 5X 10X 12X 20X Digital Zoom
Hawkvine VC028 USB2.0 USB3.0 HD PTZ Video Conferencing Camera 5X 10X 12X 20X Digital Zoom
Hawkvine VC028 USB2.0 USB3.0 HD PTZ Video Conferencing Camera 5X 10X 12X 20X Digital Zoom
Hawkvine VC028 USB2.0 USB3.0 HD PTZ Video Conferencing Camera 5X 10X 12X 20X Digital Zoom
Hawkvine VC028 USB2.0 USB3.0 HD PTZ Video Conferencing Camera 5X 10X 12X 20X Digital Zoom
Hawkvine VC028 USB2.0 USB3.0 HD PTZ Video Conferencing Camera 5X 10X 12X 20X Digital Zoom
Hawkvine VC028 USB2.0 USB3.0 HD PTZ Video Conferencing Camera 5X 10X 12X 20X Digital Zoom
Hawkvine VC028 USB2.0 USB3.0 HD PTZ Video Conferencing Camera 5X 10X 12X 20X Digital Zoom
Specifications
Brand Name :
Hawkvine
Model Number :
VC028
Certification :
TS16949
Place of Origin :
CHINA
MOQ :
1PCS
Price :
100-10000
Payment Terms :
L/C, T/T
Supply Ability :
1000 Per month
Delivery Time :
15days
Packaging Details :
Carton Packing
Hawkvine No. :
HV-VC028
Image Sensor :
1/2.8 inch high quality HD CMOS sensor
Digital Zoom :
5X,10X,12X,20X
Video Output :
USB3.0,USB2.0, HDMI, LAN, RS232(IN), A-IN
Description

Hawkvine VC028 USB2.0 USB3.0 HD PTZ Video Conferencing Camera 5X 10X 12X 20X Digital Zoom.
Hawkvine VC028 USB2.0 USB3.0 HD PTZ Video Conferencing Camera 5X 10X 12X 20X Digital Zoom
Hawkvine VC028 USB2.0 USB3.0 HD PTZ Video Conferencing Camera 5X 10X 12X 20X Digital Zoom
VC028KEY FEATURES:

1.Superb High-definition Image
VC028 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.


2.Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.


3.Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.


4.Audio Input Interface (for future development)
Support16000,32000,44100,48000sampling frequency and AAC,MP3,PCM audio coding.


5.Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism, VC028 camera works extremely quiet and moves smoothly .


6.Multiple Audio/Video compression
Support H.264/H.265 video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.


7.Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)


8.RS-232 Cascade Function
Support RS-232 cascade function which is convenient for installation.


9.Wide Application
Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.


10.Low-power sleep function
Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.

Model VC028-5X VC028-10X VC028-12X VC028-20X
Camera Parameter
Optical Zoom f＝3.6～18mm f＝4.7～47mm f＝3.9～46.1mm f＝5.2～98mm
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16: 9, 2.07 megapixel
Video Format DVI(HDMI)/SDI video format

1080P60/50/30/25/59.94/29.97；1080I60/50/59.94；720P60/50/30/25/59.94/29.97
USB3.0 interface video format
1) USB3.0: 1920X1080P60/50/30/25；1280X720P30/25/15/10 ；960X540P30 ；640X360P30
2) USB3.0 compatible with USB2.0: 960X540P30；640X360P30；1280X720P10/15；720X576P30；720X480P30
USB2.0 interface video format:176×144/320×240/320×180/352×288/640×480/720×480/720×576/640×360
800X600/960X540/1024X576/1024X768/1280X720/1920X1080 P30/25/20/15/10/5
View Angle 16.3°(tele)–80.9°(wide) 6.43°(tele)–60.9°(wide) 6.3°(tele)–72.5°(wide) 3.3°(tele)–54.7°(wide)
AV F1.6 – F3.0 F1.6 – F3.0 F1.8 – F2.4 F1.6 – F3.5
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus/Aperture/Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video Adjustment Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve
SNR >55dB
Input/Output Interface
Video Interfaces VC028-05/10/12/20-ST Model:HDMI,3G –SDI,LAN, RS232(Ring through RS232 output),RS485,A-IN,5G WiFi(Optional)

VC028-05/10/12/20-U2 Model:U2,LAN,RS232(Ring through RS232 output),A-IN
VC028-05/10/12/20-U3 Model:U3,LAN,RS232(Ring through RS232 output),A-IN
VC028-05/10/12/20-HD Model:HDBaseT,LAN ,A-IN
VC028-05/10/12/20-HDMIModel:HDMI,LAN,RS232(input)
Video Compression Format H.264, H.265,Dual stream output
Control Protocol VISCA/Pelco-D/Pelco-P;Baud Rate:115200/9600/4800/2400bps
Audio Input Interface Double track 3.5mm linear input;
Audio Compression Format AAC/MP3/PCM Audio compression
HD IP Interface 100M IP port(100BASE-TX); Support VISCA protocol control through IP port.
Network Protocol RTSP,RTMP,ONVIF,GB/T28181
Power Interface HEC3800 outlet (DC12V)
PTZ Parameter
Pan/TiltRotation ±170°,-30°～+90°
Pan Control Speed 0.1 -60°/sec
Tilt Control Speed 0.1-30°/sec
Preset Speed Pan: 60°/sec, Tilt: 30°/sec
Preset Number 255 presets (10 presets by remote controller)
Other Parameter
Supply Adapter AC110V-AC220V to DC12V/1.5A
Dimension 150mmX150mmX167.5mm
Weight 1.4KG
Remote Operation (IP) Remote Upgrade, Reboot and Reset
