Hawkvine VC029 HD Box Camera Video Conferencing Microphone 5X Digital Zoom HD CMOS sensor
Hawkvine VC029 HD Box Camera Video Conferencing Microphone 5X Digital Zoom HD CMOS sensor
Hawkvine VC029 HD Box Camera Video Conferencing Microphone 5X Digital Zoom HD CMOS sensor
Hawkvine VC029 HD Box Camera Video Conferencing Microphone 5X Digital Zoom HD CMOS sensor
Hawkvine VC029 HD Box Camera Video Conferencing Microphone 5X Digital Zoom HD CMOS sensor
Hawkvine VC029 HD Box Camera Video Conferencing Microphone 5X Digital Zoom HD CMOS sensor
Specifications
Brand Name :
Hawkvine
Model Number :
VC029
Certification :
TS16949
Place of Origin :
CHINA
MOQ :
1PCS
Price :
100-10000
Payment Terms :
L/C, T/T
Supply Ability :
1000 Per month
Delivery Time :
15days
Packaging Details :
Carton Packing
Hawkvine No. :
HV-VC029
Image Sensor :
1/2.8 inch high quality HD CMOS sensor
Digital Zoom :
5X
DNR :
2D﹠3D DNR
Description

Hawkvine VC029 HD Box Camera Video Conferencing Microphone 5X Digital Zoom HD CMOS sensor.

Hawkvine VC029 HD Box Camera Video Conferencing Microphone 5X Digital Zoom HD CMOS sensor

Hawkvine VC029 HD Box Camera Video Conferencing Microphone 5X Digital Zoom HD CMOS sensor

VC029 KEY FEATURES

1.Superb High-definition Image
It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.


2.Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.


3.Multi-Format Video Outputs
Multiple interfaces include: 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.


4.Multiple Video Compression
Support H.264/H.264+ video compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channels 1920x1080p with 30fps compression.


5.Support Multiple Control Protocol.
Support VISCA, PELCO-D, PELCO-P protocols which can also be automatically recognized. Support Visca protocol control through IP port.


6.Wide Application
Tele-education, lecture capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.


7.Multiple Network Protocol
Support ONVIF, RTSP, RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza,FMS)

Model VC029
Camera Parameter
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16: 9 2.07 megapixel
Video Format 1080P60/30/25/59.94/29.97

1080I60/50/59.94

720P60/30/25/59.94/29.97
Auto Iris DC driving mode
Digital Zoom X5
Minimum Illumination 0.5Lux(F1.8, AGC ON)
DNR 2D﹠3D DNR
White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video Adjustment Brightness,Color, Saturation,Contrast,Sharpness,B/W mode,Gamma curve
SNR >55dB

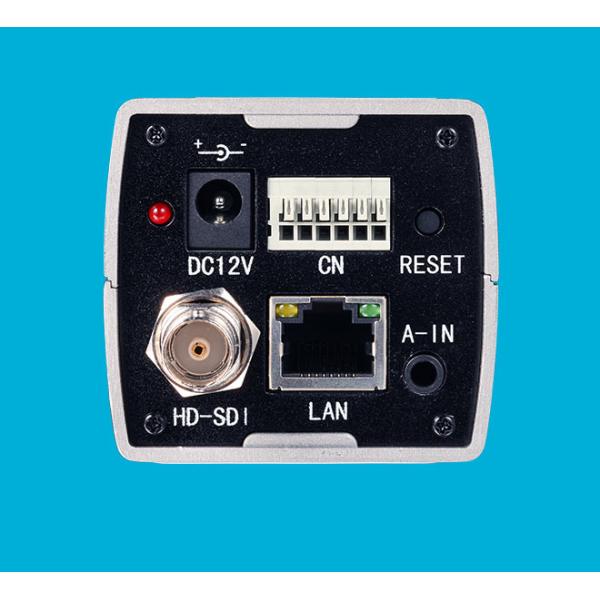

Input/output Interface
Video Interfaces 3G-SDI
Image Code Stream Dual stream output
Video Compression Format H.264, H.265
Control Interface RS-485
Control Protocol VISCA/Pelco-D/Pelco-P;Baud Rate: 115200/9600/4800/2400bps
5 Control Key UP/DOWN/LEFT/RIGHT/CONFIRM keys for OSD setting
HD IP Interface 100M IP port (10/100BASE-TX), Support VISCA protocol control through IP port.
Network Protocol RTSP,RTMP,ONVIF,GB/T28181
Power Interface HEC3800 power socket(DC12V)
Power Adaptor AC110V-AC220V to DC12V/1A , POE power supply(optional)
Input Voltage DC12V±10%
Input Current 400mA(Max)
Consumption 4.8W (Max)
Store Temperature -10℃～+60℃
Store Humidity 20%～95%
Working Temperature -10℃～+50℃
Working Humidity 20%～80%

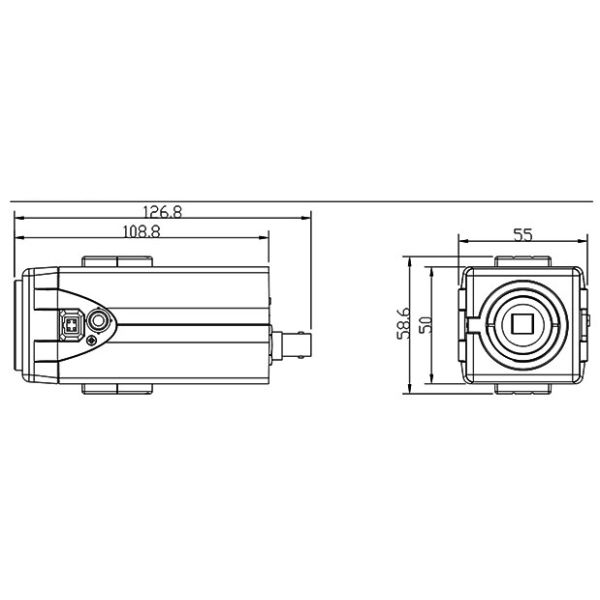

Dimension 126.8mmX55mmX58.6mm
Weight 0.5kg
Application Indoor
Remote Operation (IP) Remote Upgrade, Reboot and Reset
Accessory 12V/1A Power supply,User Manual,Warranty card,brackets(optional)

Hawkvine VC029 HD Box Camera Video Conferencing Microphone 5X Digital Zoom HD CMOS sensor
